Delivery Date:
07/24/2019
Department Name:
Madison Heights Fire Department
Department City / State:
Madison Heights, MI

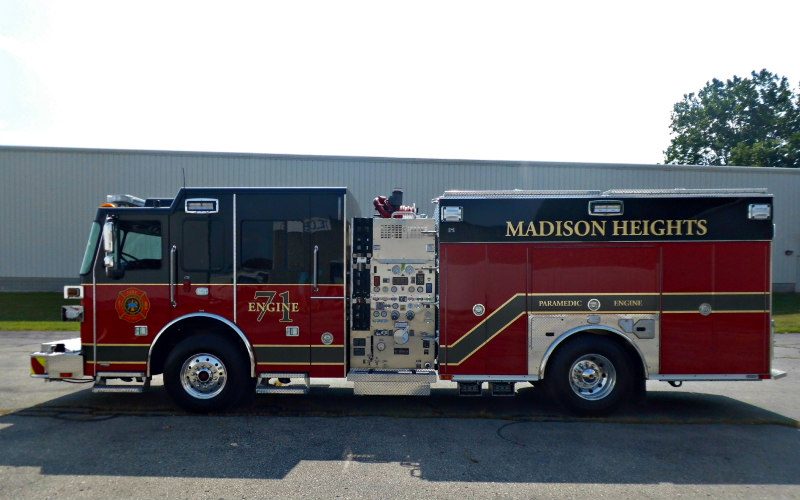

Sutphen Corporation – HS #6413

WHEEL BASE: 196”

TRAVEL HEIGHT: 10′ – 2”

TRAVEL LENGTH: 32’ – 9”

CHASSIS:             Sutphen Monarch Heavy-Duty Custom Chassis, 73” Extended Cab with a 10” Raised Roof

  • Four-Door, Four-Person Cab
  • 10” Double Frame Rails (50K PSI)
  • Front Axle and Suspension 20,000 lbs
  • Rear Axle and Suspension 27,000 lbs
  • Engine: Cummins L 9, 450 HP
  • Alternator: Leece Neville, 360 AMP
  • Transmission: Allison Gen 5, EVS 3000

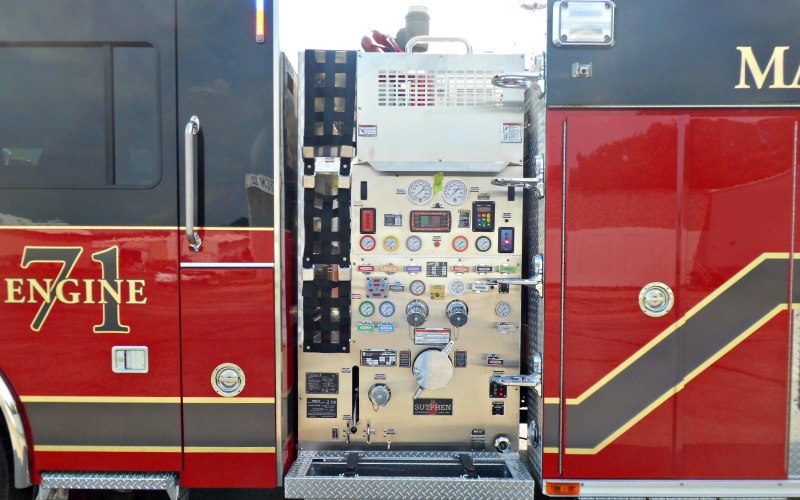

PUMP:                 Hale

  • QMAX-1500 GPM, Single Stage Pump
  • Discharges: (2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (1) 2 ½” Left Rear, (1) 1 ½” Front Bumper Discharge, (1) 3” Deck Gun
  • Crosslays: (1) 2 ½” & (2) 2” Speedlays w/ 1 ½” Swivel & Poly Lift-Out Tray
  • 20-Gallon Foam Tank
  • Hale Foamlogix 2.1
  • 750-Gallon Water Tank

BODY:                  Sutphen

  • 3/16” Extruded Aluminum
  • Hinged Compartment Doors

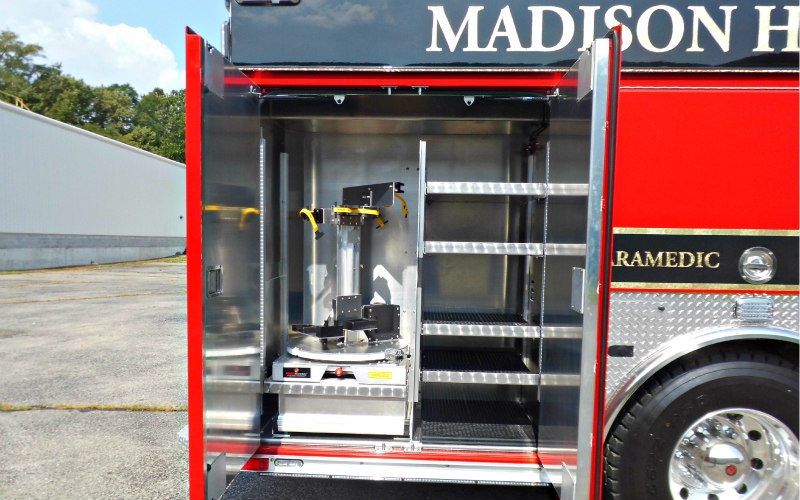

  • 294 cu. ft. Total Compartment Space
  • Alco-Lite (PEL-24 24’ 2-Section and PRL-14 14’ Roof and 10’ Folding)
  • Ladder Chute

ADDITIONAL EQUIPMENT:

  • 24” Polished Stainless Steel Bumper
  • Camera System, Brigade, Backeye 360 Camera System
  • Federal Q2B Siren, Grille Mount
  • Hannay Electric Cord Reel, 100’ (1)
  • 6KW Smart Power Generator
  • Triple Bottle Compartment (2)
  • Oil Dry Hopper
  • FRC Spectra Brow Light
  • Whelen Freedom LED Lightbar
  • Whelen M6 Red LED
  • Whelen PFH2 12V Scene Lights
