Delivery Date:
01/26/2023
Department Name:

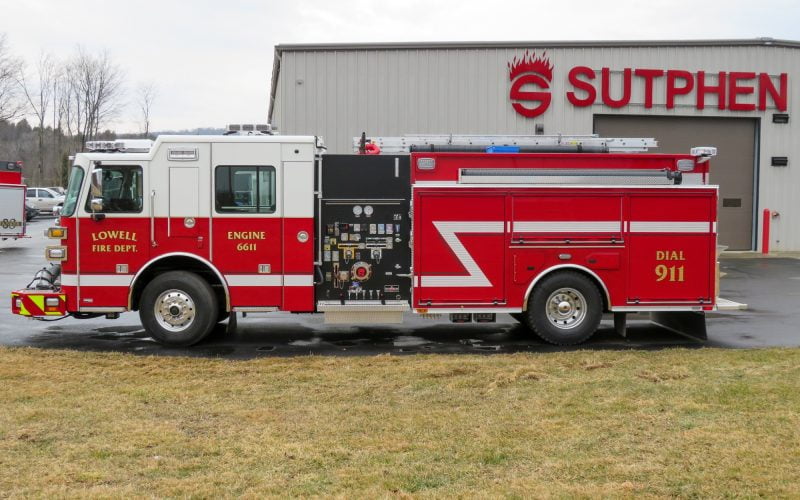

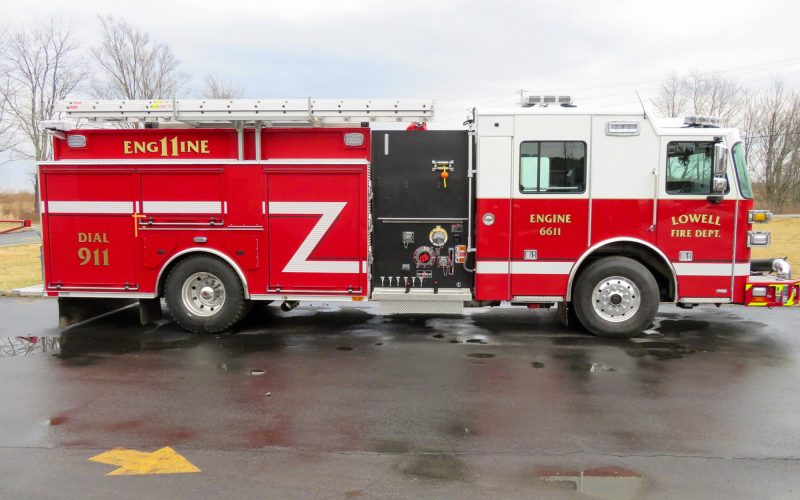

Lowell Fire Department
Department City / State:
Lowell, IN

Sutphen Corporation – HS #7206

Dealer –  Herb Fire

WHEELBASE: 213”

TRAVEL HEIGHT: 10’ – 6”

TRAVEL LENGTH: 35′ – 3”

CHASSIS:             Sutphen Monarch Heavy-Duty Custom Chassis, 73” cab with 10” Raised Roof

  • Four-Door, Four-Person Cab
  • 10” Double Frame Rails (50K PSI)
  • Front Axle and Suspension: 20,000 lbs.
  • Rear Axle and Suspension: 27,000 lbs.
  • Engine: Cummins L 9, 450HP
  • Alternator: Delco-Remy 55SI 420 AMP
  • Transmission: Allison Gen 5, EVS3000

PUMP:                  Hale

  • QMAX-2000 GPM, Single Stage Pump
  • Discharge: (2) 2 ½” Left, (1) 4” Right, (1) 2 ½” Right, (2) 2 ½” Left Rear, (2) 2 ½” Right Rear, (1) 1 ½” Front Bumper, (1) 3” Deck Gun
  • 1,000-Gallon Water Tank

BODY:                  Sutphen

  • 3/16” Extruded Aluminum
  • Amdor Roll-Up Compartment Doors
  • Duo-Safety Ladder Package: 900A 28’ 2-Section & 775A 16’ Roof & 10’ Folding
  • Over 215 cu. ft. Total Compartment Space
  • Body: PA-13 RES 53/53, HYD Ladder Rack

ADDITIONAL EQUIPMENT:

  • 24” Formed Steel, Bumper Extension
  • Federal Q2B Siren, Grille Mount
  • Camera System: FRC, Inview 360HD w/ Built-In DVR
  • Intercom: Firecom 5100D, Single Radio, 4 Position
  • Hannay Electric Cord Reel
  • Ziamatic Single Arm Hydraulic Ladder Rack
  • Roto-Ray Warning Light
  • FireTech 3-Piece Brow Light
  • Federal Navigator Lightbars (3)
  • Federal Navigator Beacons
  • Whelen PFH2 Recessed Scene Lights
  • Whelen M9 Scene Lights
