Delivery Date:
07/19/2019
Department Name:
Liberty Township Fire Department
Department City / State:
Liberty Township, Ohio

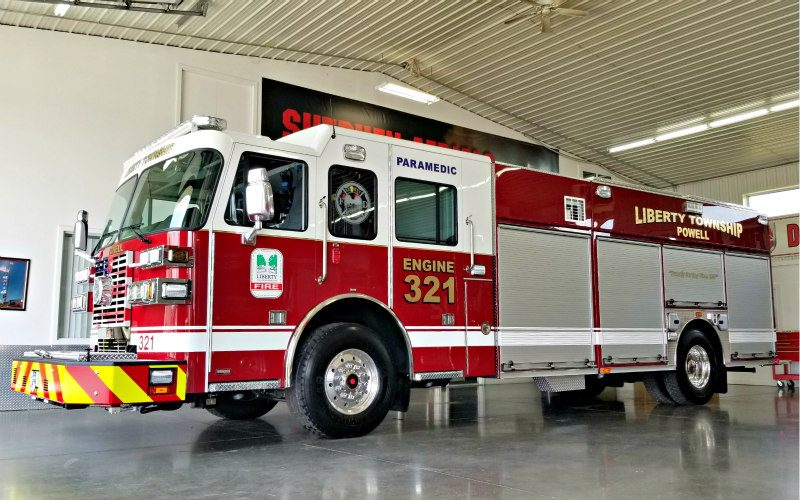

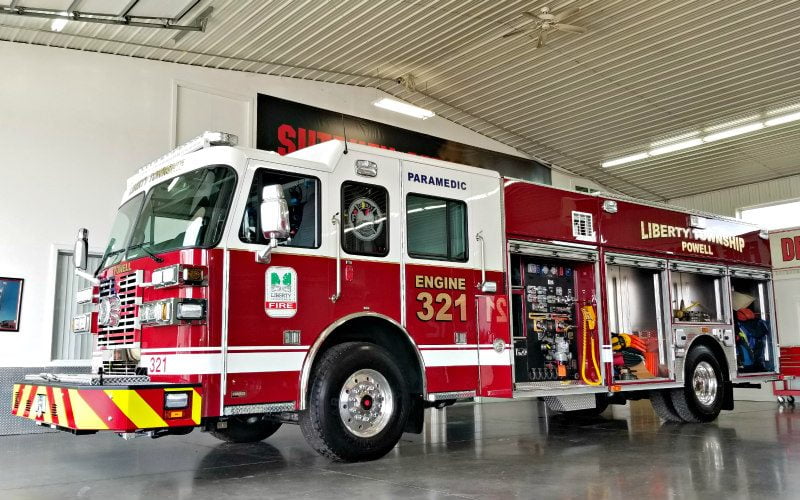

Sutphen Corporation – HS #6277

WHEEL BASE: 229”

TRAVEL HEIGHT: 9′ – 10”

TRAVEL LENGTH: 35’ – 7”

CHASSIS:             Sutphen Monarch Heavy-Duty Custom Chassis, 73” Extended Cab with a 10” Raised Roof

  • Four-Door, Five-Person Cab
  • 10” Double Domex Frame Rails (110K PSI)
  • Front Axle and Suspension 20,000 lbs
  • Rear Axle and Suspension 27,000 lbs
  • Engine: Cummins L 9, 450 HP
  • Alternator: Leece Neville, 320 AMP
  • Transmission: Allison Gen 5, EVS3000

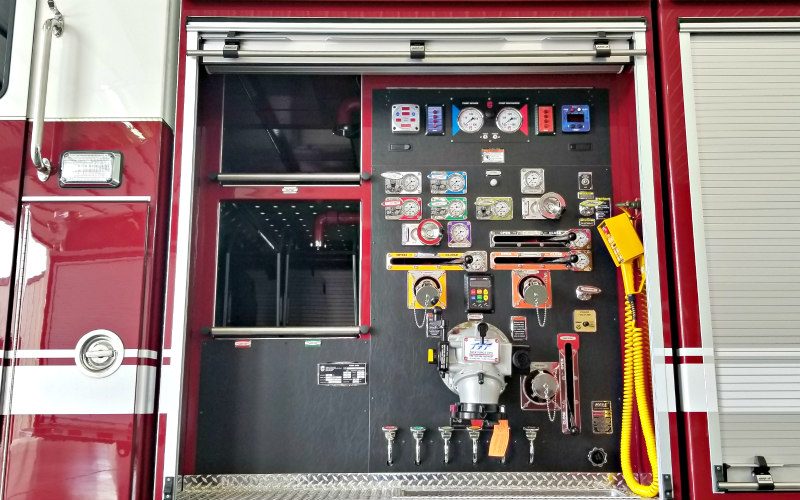

PUMP:                 Hale

  • QMAX-1500 GPM, Single Stage Pump
  • Discharges: (2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (1) 2 ½” Pipe to Left Rear, (1) 1 ½” Front Bumper, (1) 3” Deck Gun, (1) 2 ½” Rear
  • 750-Gallon Water Tank
  • 20-Gallon Foam Tank
  • Foampro 2001, 2.6 GPM

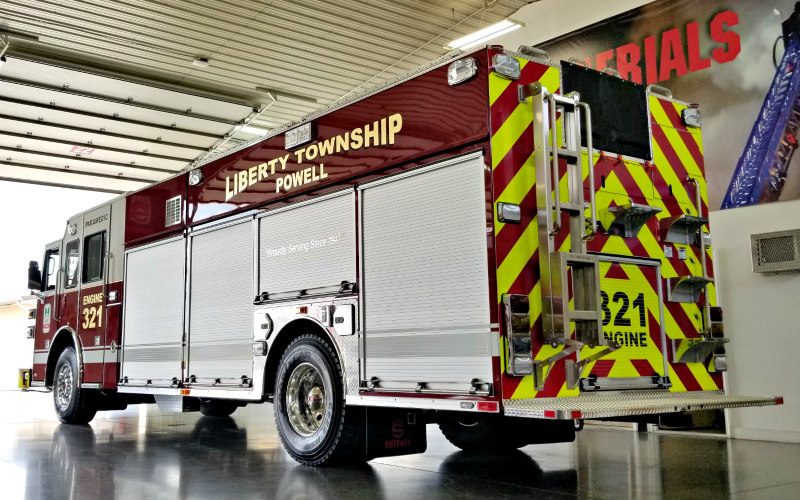

BODY:                  Sutphen

  • 3/16” Extruded Aluminum
  • Amdor Roll-Up Compartment Doors
  • Over 475 cu. ft. Total Compartment Space
  • Alco-Lite (PEL-24, 24’ 2-Section & PRL-14; 14’ Roof & 10’ Folding)

ADDITIONAL EQUIPMENT:

  • 24” Formed Steel Bumper
  • Federal Q2B Siren, Grille Mount
  • Hannay Electric Cord Reel, 150’ (2)
  • 10KW Smart Power Generator
  • Whelen Freedom LED Lightbar w/ Brow Light Mounted Underneath
  • Ramsey 12,000 lb Winch
  • Whelen PCPSM2 12V LED Scenes
  • Whelen M9V2 LEDs
