Delivery Date:
06/16/2025
Department Name:

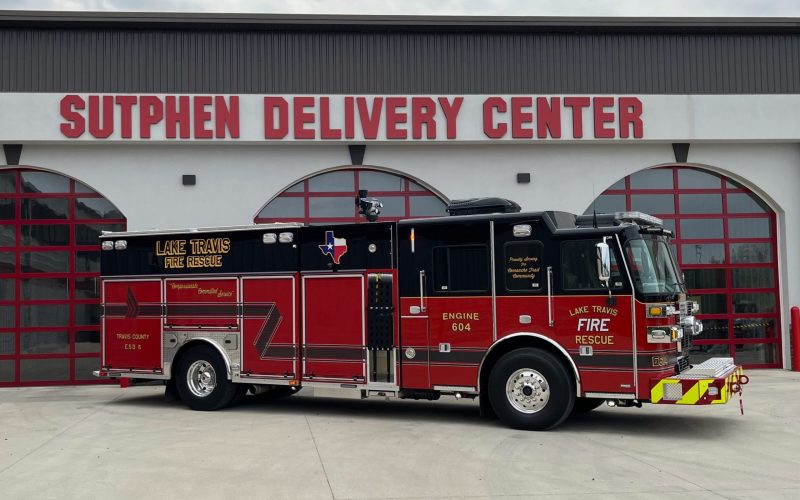

Lake Travis Fire Rescue
Department City / State:
Austin, TX
Truck Type:
Dealer – Texas Fire Apparatus
WHEELBASE: 216 ½”
TRAVEL HEIGHT: 10’ – 4 ½”
TRAVEL LENGTH: 35’ – 3 ½”
CHASSIS: Sutphen Monarch Heavy-Duty Custom Chassis, 73” Extended Cab w/ 10” Raised Roof
- Four-Door, Five-Person Cab
- 10” Double Domex Frame Rails (110K PSI)
- Front Axle and Suspension 24,000 lbs w/ (4) 56” Leafs
- Rear Axle and Suspension 31,000 lbs
- Engine: Cummins X 12, 500HP
- Alternator: C.E. Niehoff, 360 AMP
- Transmission: Allison Gen 5, EVS4000
PUMP: Waterous
- CSU-1500 GPM, Single Stage
- Discharges: (2) 2 ½” Left, (1) 4” Right, (1) 2 ½” Right, (1) 1 ½” Front Bumper, 2” Plumbing, (1) 3” Deck Gun
- Speedlays: (2) 1 ½” w/ Liftout Tray & (1) 2 ½” w/ Liftout Tray
- 750-Gallon Water Tank
- 20-Gallon Foam Tank
- Foam System: FoamPro 2002, 5.0 GPM
BODY: Sutphen
- Huckbolt #304 Stainless Steel
- AMDOR Roll-Up Compartment Doors, Painted
- Nearly 300 cu ft. Total Compartment Space
- Alco-Lite Ladder Package: PEL-24 24’ 2-Section & DRL-14 14’ Roof & 10’ Folding
- Body: PA-19 RES 43/53 Ladder Thru Tank
ADDITIONAL EQUIPMENT:
- 24” Formed Steel Channel, Painted
- Federal Q2B Siren, Grille Mount
- Camera System: Brigade, Backeye 360 Camera System (Wired)
- Intercom System: SetCom, 5 Position
- FireTech 72” 3-Piece 12V Brow
- Whelen Freedom IV 72” LED Lightbar (16 Module)
- Whelen M9V2 Blue LED, 12V Scene
- Whelen M9V2 Red LED, 12V Scene
MONITOR:
- TFT Hurricane, Electric 1250 GPM w/ M-ERP1250SNJ, 1250 GPM Nozzle
