Delivery Date:
11/19/2020
Department Name:

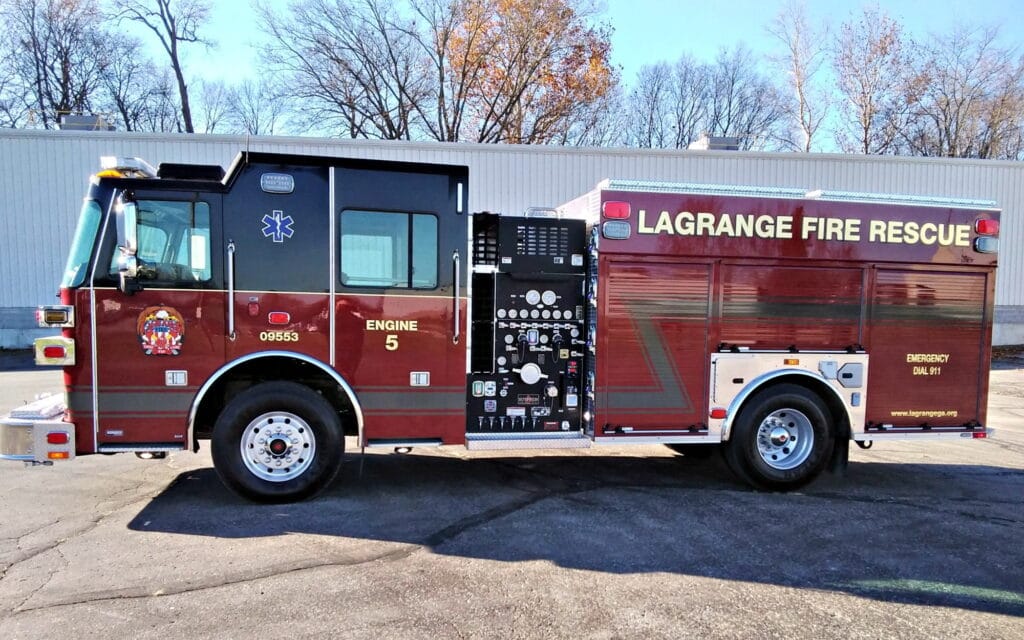

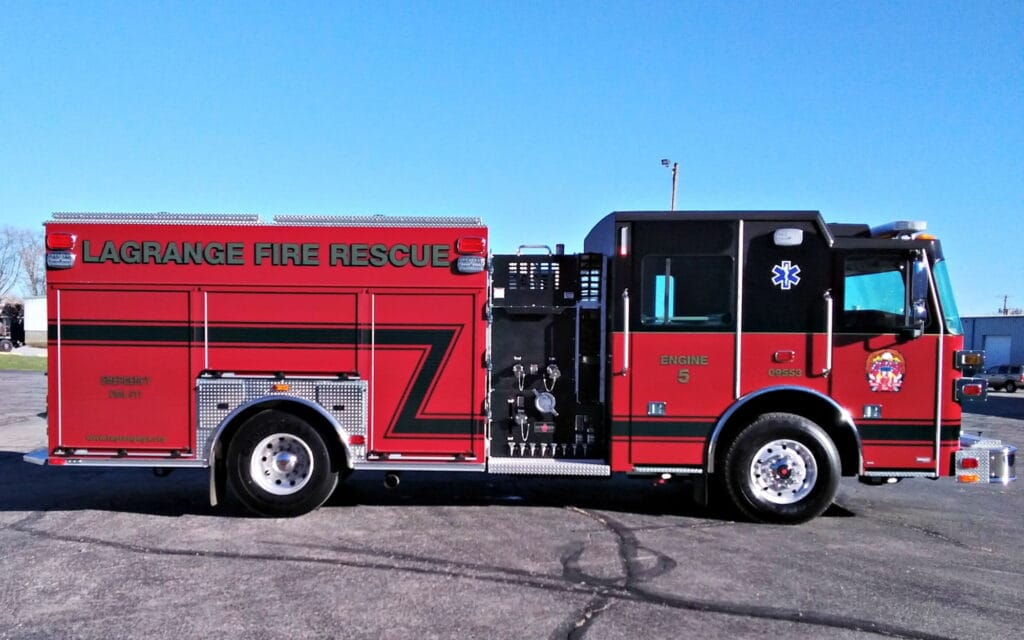

LaGrange Fire Department
Department City / State:
LaGrange, GA

Sutphen Corporation – HS #6694

Dealer – Williams Fire Apparatus

WHEELBASE: 185”

TRAVEL HEIGHT: 9’ – 10”

TRAVEL LENGTH: 31’ – 8”

CHASSIS:             Sutphen Monarch Heavy-Duty Custom Chassis, 62” Extended Cab with a 10” Raised Roof

  • Four-Door, Four-Person Cab
  • 10” Double Frame Rails (50K PSI)
  • Front Axle and Suspension 18,000 lbs
  • Rear Axle and Suspension 24,000 lbs
  • Engine: Cummins L 9, 400 HP
  • Alternator: Leece Neville, 320 AMP
  • Transmission: Allison Gen 5, EVS 3000

PUMP:                 Waterous

  • S101 1500, Single Stage
  • Discharges: (2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (1) 2 ½” Front/Left of Main Hosebed, (1) 2 ½” Front/Right of Main Hosebed, (1) 1 ½” Front Bumper, (1) 3” Deck Gun
  • Crosslay: (1) 2 ½”
  • Speedlay: (2) 2” w/ Swivels & Poly Lift-Out Trays
  • 500-Gallon Water Tank
  • 30-Foam Tank
  • Foam System: Waterous Advantus 3

BODY:                  Sutphen

  • 3/16” Extruded Aluminum
  • ROM Compartment Doors

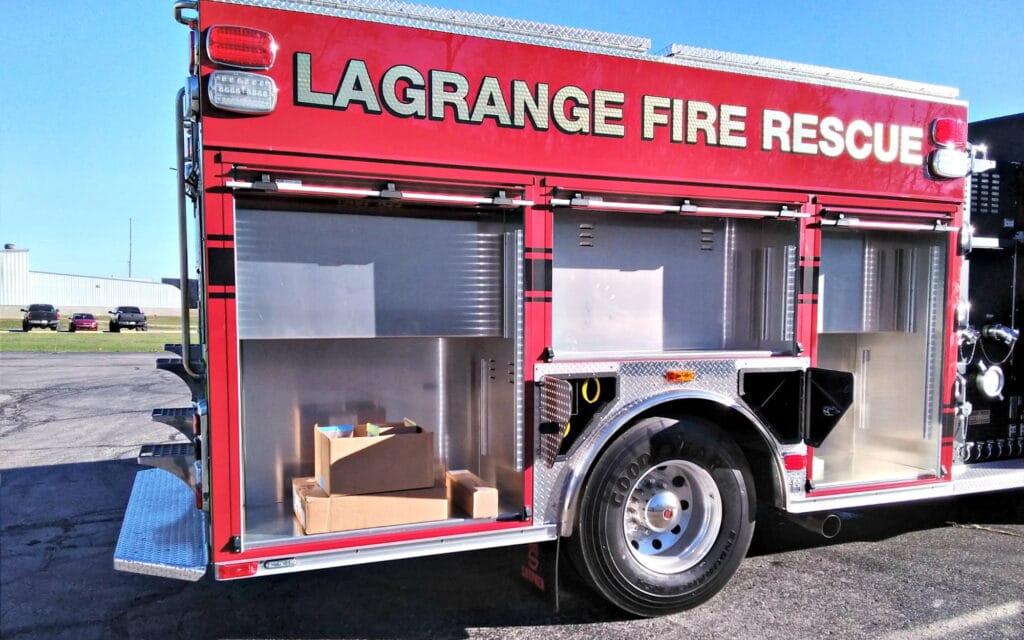

  • 270 cu. ft. Total Compartment Space
  • Alco-Lite Ladder Package (PEL-24 24’ 2-Section & PRL-14 14’ Roof & 10’ Folding)
  • Ladder Chute w/ Backboard Storage
  • Body: G2-Alum 40/51 Ladders Chute

ADDITIONAL EQUIPMENT:

  • 18” Polished Stainless Steel Bumper Extension
  • Federal Q2B Siren, Flush Bumper Mount
  • Generator: Smart Power, 6KW TM HYD
  • (3) Triple Air Bottle Compartments
  • Roto-Ray Warning Light
  • Whelen PFH1 LED Brow Light
  • Whelen Freedom LED Lightbar
  • Whelen M9 Scene Lights
