Delivery Date:
03/10/2022
Department Name:
Osceola County Fire Rescue
Department City / State:
Kissimmee, FL

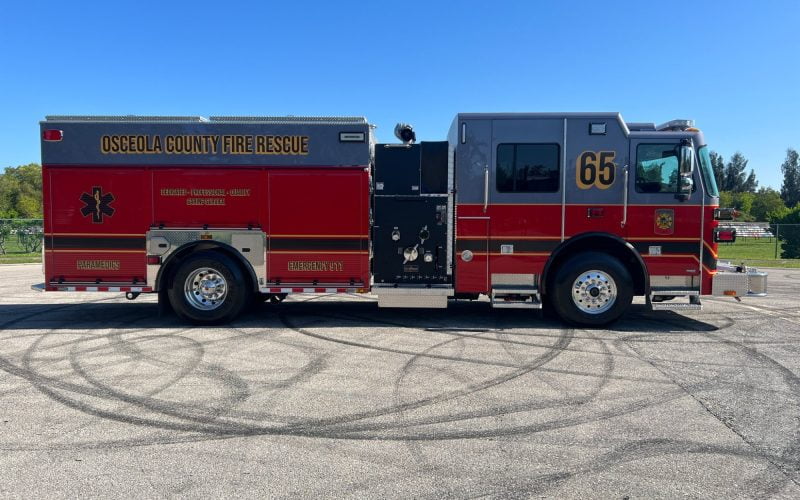

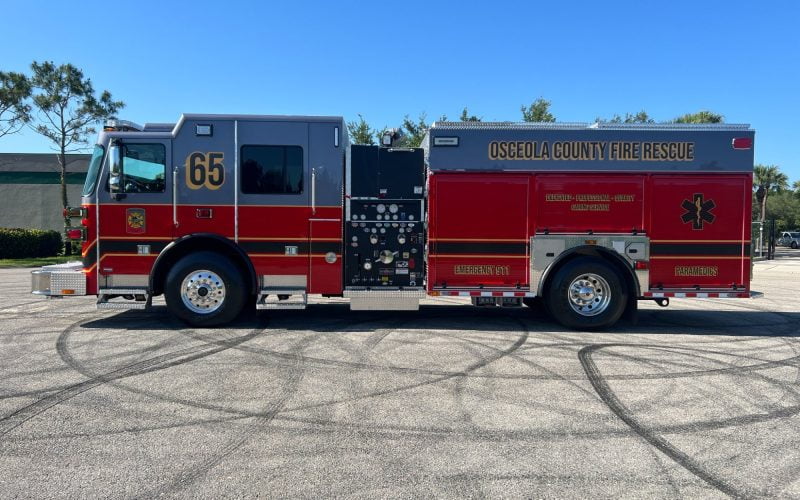

Truck Type:
Sutphen Corporation – HS #7012
Dealer – South Florida Emergency Vehicles
WHEELBASE: 208”
TRAVEL HEIGHT: 9’ – 11”
TRAVEL LENGTH: 33’ – 9”
CHASSIS: Sutphen Monarch Heavy-Duty Custom Chassis, 73” Extended Cab with 10” Raised Roof
- Four-Door, Four-Person Cab
- 10” Double Domex Frame Rails (110K PSI)
- Front Axle and Suspension 20,000 lbs
- Rear Axle and Suspension 27,000 lbs
- Engine: Cummins L 9 450HP
- Alternator: Leece Neville, 420 AMP
- Transmission: Allison Gen 5, EVS3000

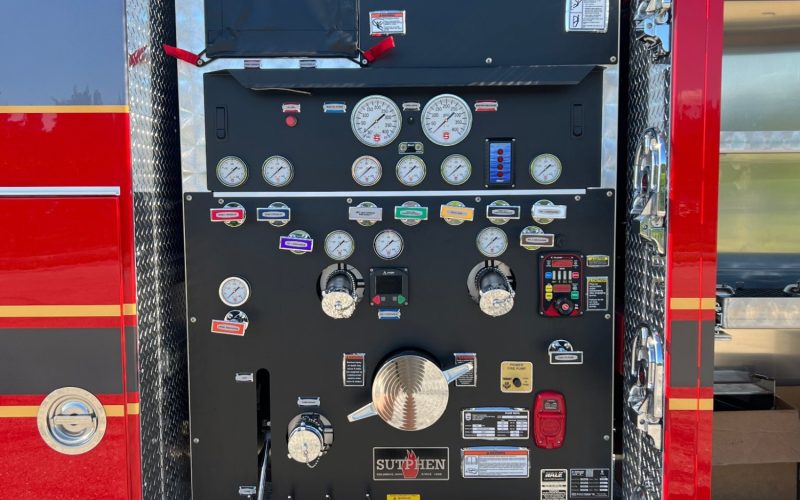

PUMP: Hale
- QFLO – 1250, Single Stage Pump
- Discharges: (2) 2 ½” Left, (1) 4” Right, (1) 2 ½” Right, (1) 2½” Front/Left Main Hosebed, (1) 2 ½” Front/Right Main Hosebed, (1) 1 ½” Front Bumper, (1) 3” Deck Gun
- Crosslays: (2) 2” Crosslays w/ 1 ½” Swivel
- 1000-Gallon Water Tank
BODY: Sutphen
- 3/16” Extruded Aluminum
- Amdor Roll-Up Compartment Doors, Painted
- Over 314 cu ft. Total Compartment Space
- Duo-Safety 900A, 24’ 2-section & 775A 14’ Roof & 10’ Folding
- Body: G9, Alum 40/51 Ladders Through Tank
ADDITIONAL EQUIPMENT:
- 24” Polished Stainless Steel, Bumper Extension
- Federal Q2B Siren, Grille Mount
- Camera System: Brigade 360
- Whelen Freedom LED Lightbar
- FRC Spectra Brow Light
- FRC 900 LED Scene Light
- Whelen M6 LED Quad Tail Lights
