Delivery Date:
02/23/2021
Department Name:
Hernando County Fire Department
Department City / State:
Brooksville, FL

Sutphen Corporation – HS #6764

Dealer – South Florida Emergency Vehicles

WHEELBASE: 196”

TRAVEL HEIGHT: 10’ – 3”

TRAVEL LENGTH: 32’ – 4”

CHASSIS:             Sutphen Monarch Heavy-Duty Custom Chassis, 73” extended cab with 15” raised roof

  • Four-Door, Four-Person Cab
  • 10” Double Frame Rails, Single Axle (50K PSI)
  • Front Suspension 20,000 lbs.
  • Rear Suspension 27,000 lbs.
  • Engine: Cummins L 9, 400 HP
  • Alternator: Leece Neville 320 AMP
  • Transmission: Allison Gen 5, EVS3000

PUMP:                 Hale

  • QFLO 1250-GPM, Single Stage Pump
  • Discharges: (2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (1) 2 ½” Front/Left of Main Hosebed, (1) 1 ½ Front Bumper, (1) 3” Deck Gun
  • Crosslays: (2) 2” w/ 1 ½” Swivel
  • 1000-Gallon Water Tank
  • 30-Gallon Foam Tank
  • Foam System: FoamPro 2001, 2.6GPM

BODY:                  Sutphen

  • 3/16” Extruded Aluminum
  • ROM Painted Roll-Up Compartment Doors

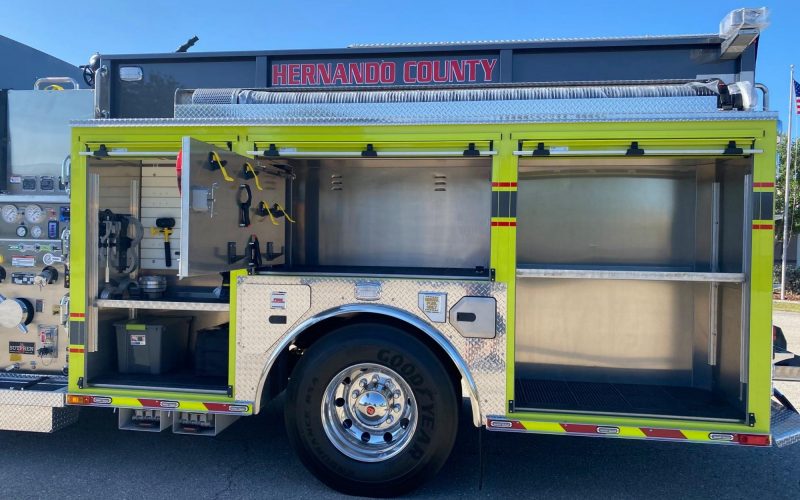

  • Over 220 cu. ft. Total Compartment Space
  • Duo-Safety Ladder Package: 24’ 2-Sec, 14’ Roof, 10’ Folding
  • Ladder Chute w/ Backboard Storage
  • Body: G2 – Alum 40/51 Ladder Chute

ADDITIONAL EQUIPMENT:

  • 18” Formed Steel Channel Bumper
  • Federal Q2B Siren, Grille Mount
  • Zone Defense Camera System
  • FRC Spectra Brow Light
  • FRC Spectra Telescopic Lights
  • Whelen Freedom LED Lightbar
  • Whelen M9 Scene
