Delivery Date:
11/22/2019
Department Name:
Hefei Fire Brigade
Department City / State:
Wang Chai, Hong Kong, China
Truck Type:
Sutphen Corporation – HS #6381
WHEEL BASE: 185”
TRAVEL HEIGHT: 9’ – 11”
TRAVEL LENGTH: 30’ – 10”
CHASSIS: Sutphen Monarch Heavy-Duty Custom Chassis, 62” Extended Cab with a 10” Raised Roof
- Four-Door, Six-Person Cab
- 10” Double Frame Rails (50K PSI)
- Front Axle and Suspension 18,000 lbs
- Rear Axle and Suspension 27,000 lbs
- Engine: Cummins L 9, 400 HP
- Alternator: Leece Neville, 320 AMP
- Transmission: Allison Gen 5, EVS3000

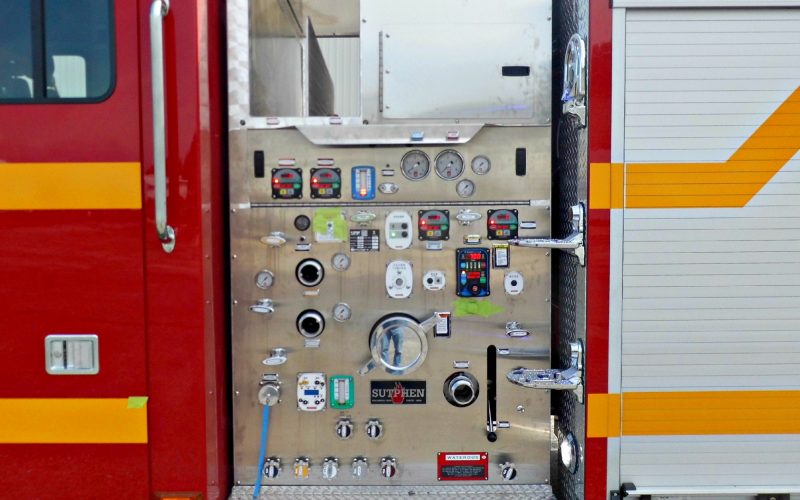

PUMP: Waterous
- CMU-1500 GPM, Two Stage Pump
- Discharges: (2) 2 ½” Left, (2) 2 ½” Right, (1) 2 ½” Right, (1) 2 ½” Left Rear, (1) 3” Deck Gun
- Crosslay: (2) 2” w/ 1 ½” Swivel
- Speedlay: (2) 2” with 1 ½” Swivel
- Deck Gun Monitor: Akron 3578 Stream Master Electric with Akron 5177 Nozzle
- 1,000-Gallon Water Tank
- 50-Gallon Foam Tank
- Waterous Aquis 3.0 Foam System
- Special CAFS System Waterous CAFS 150 CFM, 150-D
BODY: Sutphen
- 3/16” Extruded Aluminum
- ROM Roll-Up Compartment Doors
- 222 cu. ft. Total Compartment Space
- Ladder Chute with Backboard Storage
- Body: G2 – Alum 40/51 Ladder Chute
ADDITIONAL EQUIPMENT:
- 12” Polished Stainless Steel, Bumper Extension
- Electric Siren, Whelen 295SLSA1
- Air Bottle Compartment (4)
- Air Conditioning
- Whelen Justice LED Lightbar
- Whelen 810 Scene Lights
- Whelen RB6 Red Beacons
