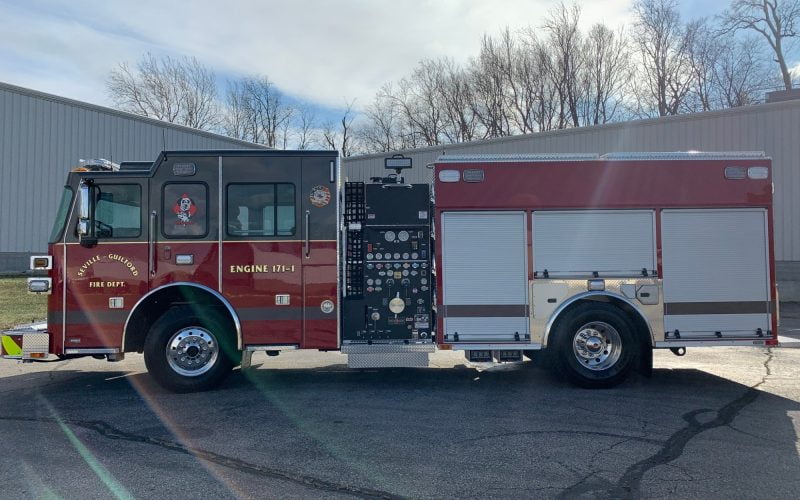

Custom Pumper – Seville-Guildford Fire Department, OH

Sutphen Corporation – HS #6977

Dealer – Herb Fire Equipment

WHEELBASE: 196”

TRAVEL HEIGHT: 9’ – 10”

TRAVEL LENGTH: 32’ – 2”

CHASSIS:  Sutphen Monarch Heavy-Duty Custom Chassis, 73” Extended Cab with a 10” Half Raised Roof

• Four-Door, Four-Person Cab
• 10” Single Frame Rails (110K PSI)
• Front Axle and Suspension 20,000 lbs
• Rear Axle and Suspension 27,000 lbs
• Engine: Cummins L 9 450HP
• Alternator: Leece Neville 420 AMP
• Transmission: Allison Gen 5, EVS3000

PUMP:                 Hale

• XS QMAX-1500 GPM, Single Stage Pump
• Discharges: (2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (1) 2 ½” Left Rear, (1) 2 ½” Right Rear, (1) 2 ½” Front Bumper, (1) 3” Deck Gun
• 750-Gallon Water Tank
• 30-Gallon Foam Tank

BODY:                  Sutphen

• 3/16” Extruded Aluminum
• Amdor Roll-up Compartment Doors
• Over 290 cu. ft. Total Compartment Space
• Alco-Lite Ladder Package: PEL-24 24’ 2-Section & PRL-14 14’ Roof & 10’ Folding
• Body: G9 Alum 40/51 Ladder Through Tank

ADDITIONAL EQUIPMENT:

• 18” Polished Stainless Steel Bumper
• Federal Q2B Siren, Grille Mount
• Camera System: FRC Inview Trueview, Single Camera
• Whelen Freedom IV 72” LED Light Bar
• Whelen M9 LED Scene Lights
• Whelen TAL65 Traffic Advisor
• FRC Spectra 12V LED Brow Light
• Whelen 600 Series Taillights
