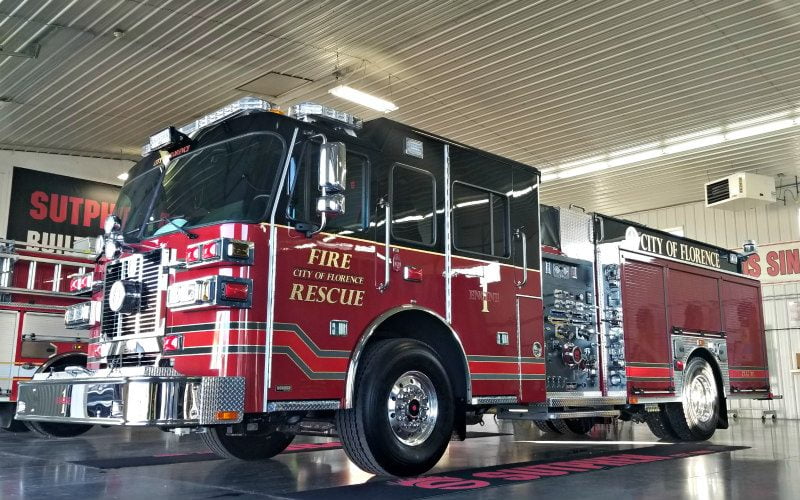

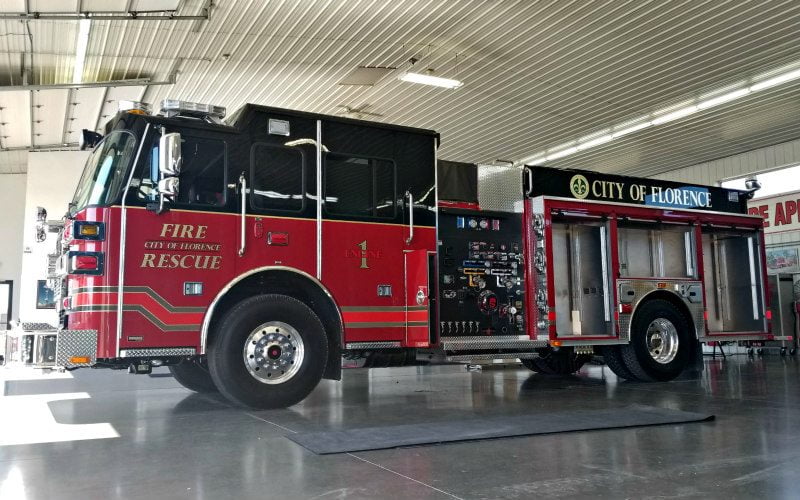

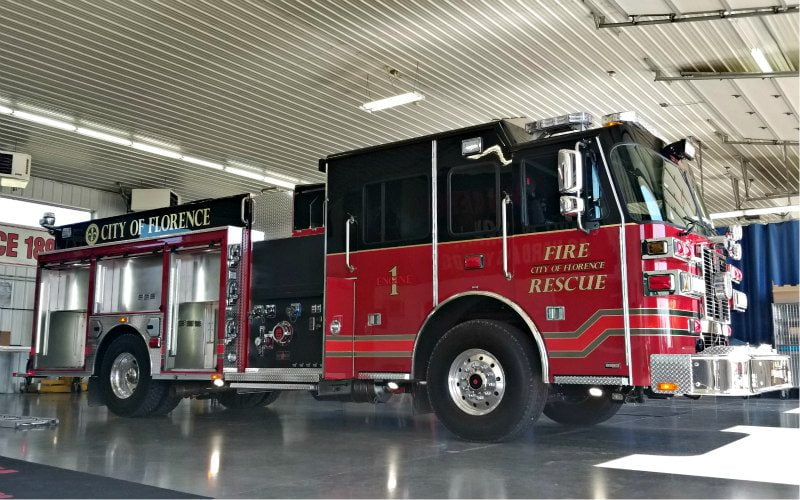

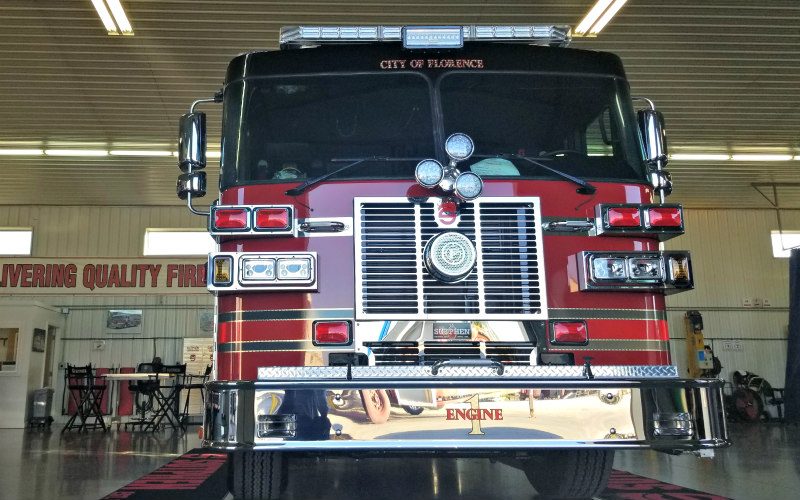

Delivery Date:
08/24/2019
Department Name:
Florence Fire and Rescue
Department City / State:
Florence, AL

Sutphen Corporation – HS #6320

Dealer – Williams Fire Equipment

WHEEL BASE: 207”

TRAVEL HEIGHT: 9’ – 10”

TRAVEL LENGTH: 33’ – 3/16”

CHASSIS:             Sutphen Monarch Heavy-Duty Custom Chassis, 73” Extended Cab with a 10” Raised Roof

  • Four-Door, Four-Person Cab
  • 10” Double Frame Rails (50K PSI)
  • Front Axle and Suspension 23,000 lbs
  • Rear Axle and Suspension 27,000 lbs
  • Engine: Cummins ISX 12, 500 HP
  • Alternator: Leece Neville, 320 AMP
  • Transmission: Allison Gen 5, EVS4000

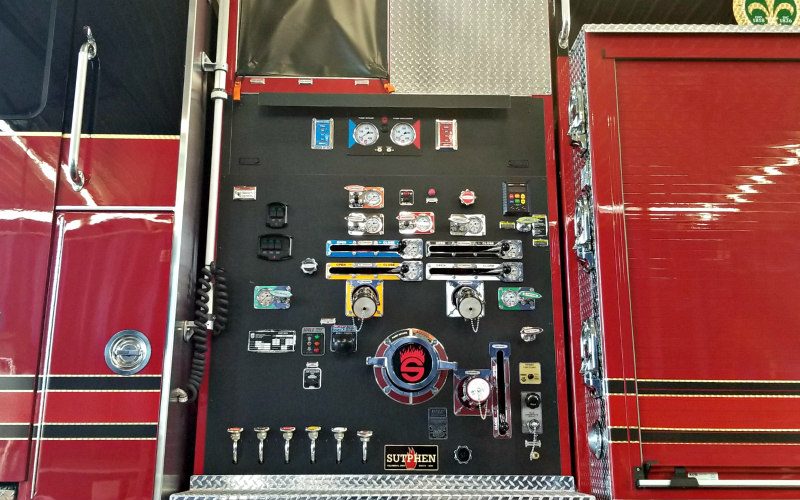

PUMP:                 Hale

  • QMAX-1500 GPM, Single Stage Pump
  • Discharges: (2) 2 ½” Left, (2) 2 ½” Right, (1) 3” Right, (1) 1 ½” Front Bumper (1) 3” Deck Gun
  • 500-Gallon Water Tank
  • 40-Gallon Foam Tank
  • Elkhart Foam Supply System with Flush

BODY:                  Sutphen

  • 3/16” Extruded Aluminum
  • ROM Roll-Up Compartment Doors
  • Over 233 cu. ft. Total Compartment Space
  • Duo-Safety Ladders (24’ 2-Section & 14’ Roof & 10’ Folding)
  • PA-12 RES 43/53 Ladder Chute

ADDITIONAL EQUIPMENT:

  • 18” Polished Stainless Steel Bumper
  • Roto Ray LED
  • Federal Q2B Siren, Flush Grille Mount
  • FRC Spectra 20K LED Browlight
  • Whelen Freedom IV LED Lightbar
  • Whelen Traffic Advisor TIR6 LED, TAM65 35”
  • Fire Research Telelights
  • Ladder Chute with Pike Pole Tubes and Backboard Storage
