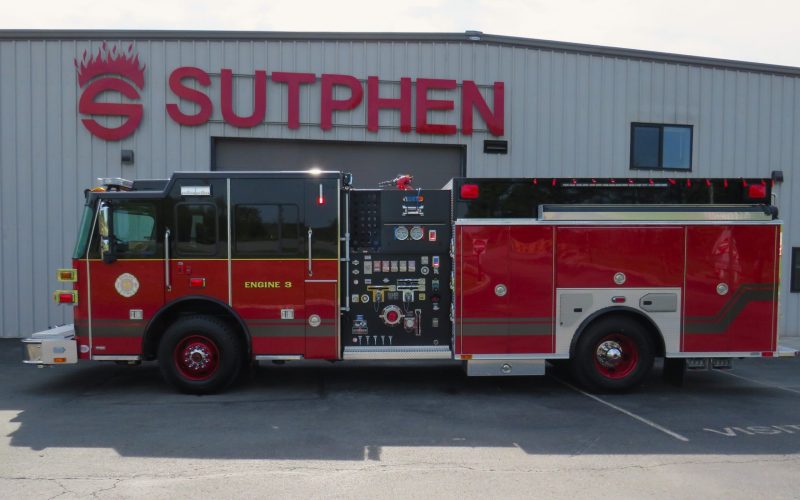

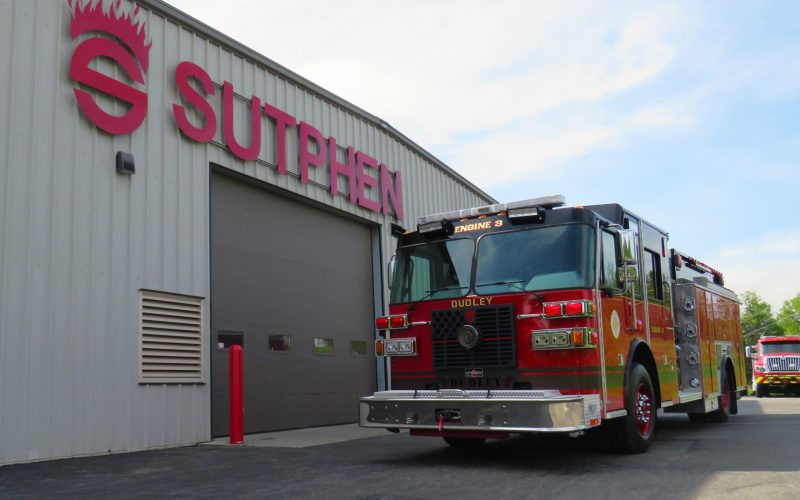

Custom Pumper – Dudley Fire Department, MA

Dealer – MES-Shipman’s Fire

WHEELBASE: 217”

TRAVEL HEIGHT: 9’ – 10 ½”

TRAVEL LENGTH: 35’

CHASSIS:           Sutphen Monarch Heavy-Duty Custom Chassis, 73” Extended Cab w/ a 10” Raised Roof

• Four-Door, Five-Person Cab
• 10” Double Frame Rails (50K PSI)
• Front Axle and Suspension 20,000 lbs w/ (4) 56” Leafs
• Rear Axle and Suspension 27,000 lbs
• Engine: Cummins L 9, 450 HP
• Alternator: Leece Neville, 420 AMP
• Transmission: Allison Gen 5, EVS3000

PUMP:                 Hale

• QMAX-1500 GPM, Single Stage Pump
• Discharges: (2) 2 ½” Left, (1) 4” Right, (1) 2 ½” Right, (1) 2 ½” Valve 2 ½” Pipe to Left Rear, (1) 2 ½” Front/ Right of Main Hosebed, (1) 3” Deck Gun
• Crosslays: (1) 2 ½”, 2 ½” Swivel & (2) 2” w/ 1 ½” Swivel
• 500-Gallon Water Tank

BODY:                 Sutphen

• 3/16” Extruded Aluminum
• Mixed Hinged and Amdor Roll-Up Compartment Doors
• Over 260 cu. ft. of Total Compartment Space
• Duo-Safety Ladder Package: 900A 24’ 2-Section & 775A 14’ Roof & 10’ Folding
• Body: PA-12 Res 43/53, Lad Chute

ADDITIONAL EQUIPMENT:

• 24” Polished Stainless Steel Bumper
• Federal Q2B Siren, Grille Mount
• Camera System: FRC, Inview Trueview, Two Cameras (Wired)
• Hannay Electric Cord Reel, 150’ (1)
• Generator: Smart Power, 8KW TM Hyd
• Whelen Freedom IV 72” LED Light Bar w/ GTT 795H Opticom
• (2) Whelen PFH2 LED Brow Lights
• Whelen 900 Scene Lights
