More Recent Deliveries

Department Name:
Concord Township Fire Department
Department City / State:
Painesville, OH



Sutphen Corporation

WHEEL BASE: 219”

TRAVEL HEIGHT: 10’-8”

TRAVEL LENGTH: 35’-5”

CHASSIS:             Sutphen Monarch Heavy-Duty Custom Chassis, 73” Extended Cab with a 10” Raised Roof

  • Four-Door, Four-Person Cab
  • 10” Double Domex Frame Rails (50K PSI)
  • Front Axle and Suspension 23,000 lbs
  • Rear Axle and Suspension 27,000 lbs
  • Engine: Cummins ISX 12, 500 HP
  • Alternator: Leece Neville, 320 AMP
  • Transmission: Allison Gen 5, EVS 4000

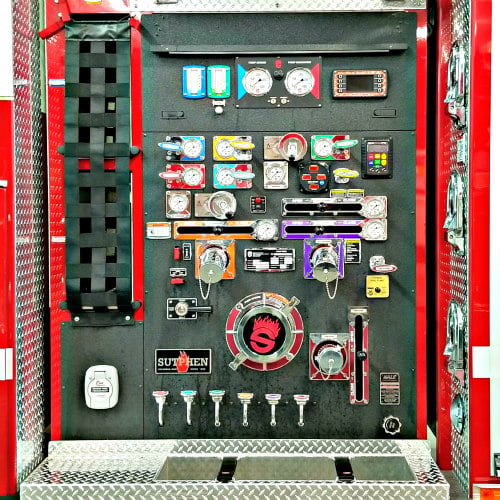

PUMP:                 Hale

  • QMAX-1500
  • Discharges: (2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (1) 2 ½” Pipe to Left Rear, (1) 1 ½” Front Bumper, (1) 3” Deck Gun
  • Monitor: Akron 3431 Apollo High Rise
  • Speedlays: (2) 1 ½” with Lift Out Tray and (1) 2 ½” Crosslay
  • 750-Gallon Water Tank
  • 30-Gallon Foam Tank
  • Hale Smart Foam 5.0

Body:                   Sutphen

  • 3/16” Extruded Aluminum
  • ROM Roll-Up Compartment Doors
  • Over 475 cu. ft. Total Compartment Space
  • Alco-Lite PEL-24 (24’ 2-Section & PRL-14 14’ Roof & 10’ Folding)

OPTIONAL EQUIPMENT:

  • Hannay Cord Reel, 175’ (2)
  • Will-Burt Xtreme 6.0 Light Tower
  • 15KW Harrison Hydraulic Generator
  • FRC Spectra 12V LED Brow
  • Whelen Freedom IV LED Lightbar
  • Roto Ray Federal Q2B
  • Whelen Traffic Advisor
