Department Name:
Milford Township Fire Department
Department City / State:
Collinsville, OH

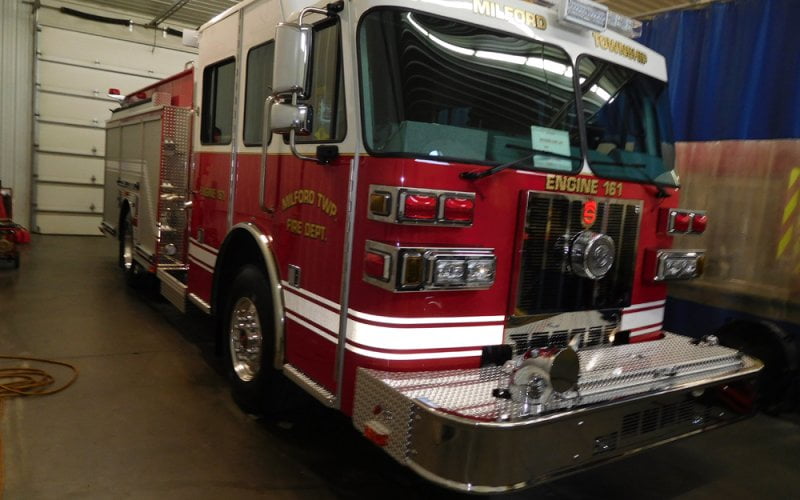

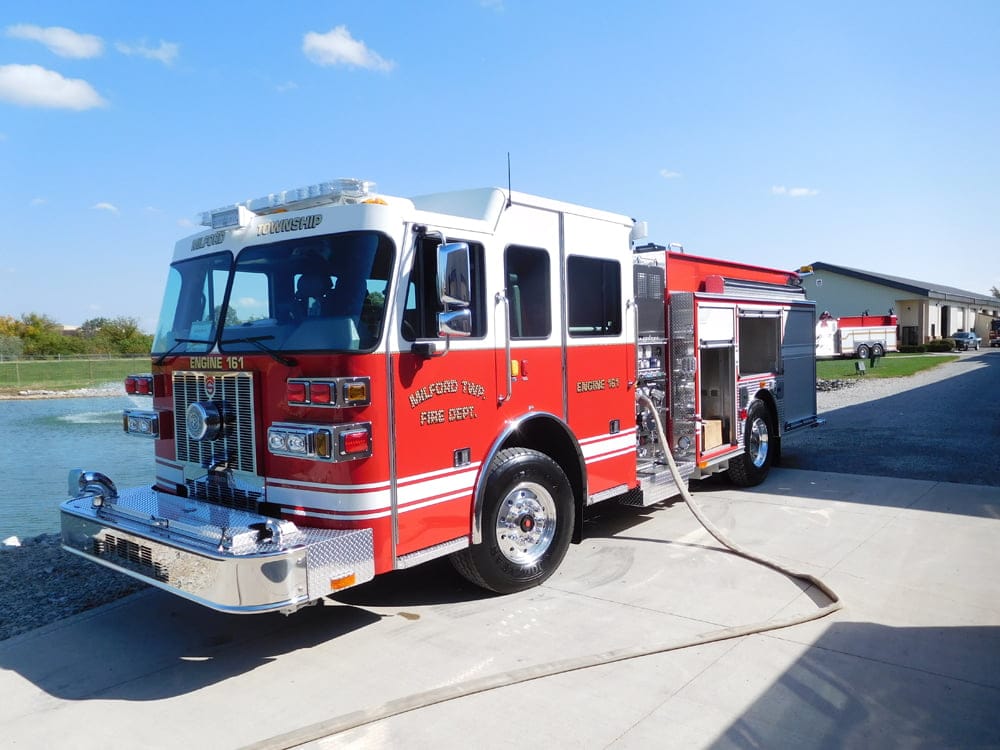

Custom Pumper (HS-5885)

WHEEL BASE: 185”

TRAVEL HEIGHT: 9’-8”

TRAVEL LENGTH: 32’-1”

CHASSIS: SUTPHEN 62” with half 10” raised roof

  • Four-door, six-person cab
  • Front Axle and Suspension 20,000 lbs
  • Rear Axle and Suspension 27,000 lbs
  • Engine: Cummins ISL 9, 450 HP
  • Alternator: Leece Neville, 320 AMP
  • Transmission: Allison Gen 5, EVS 3000

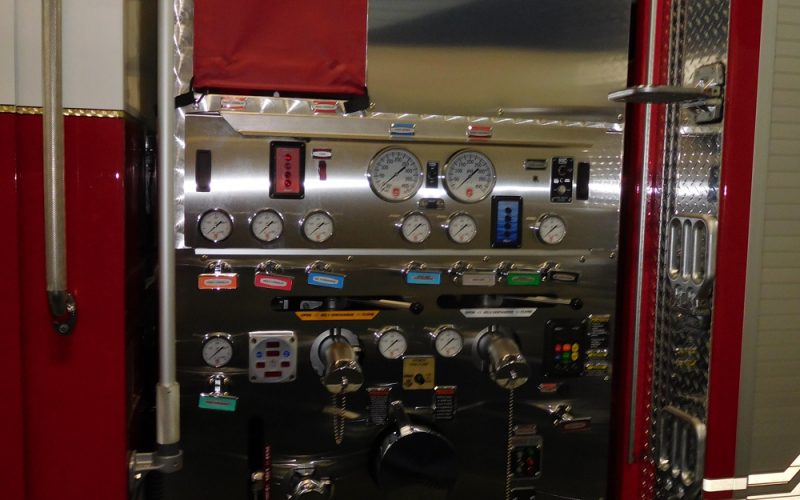

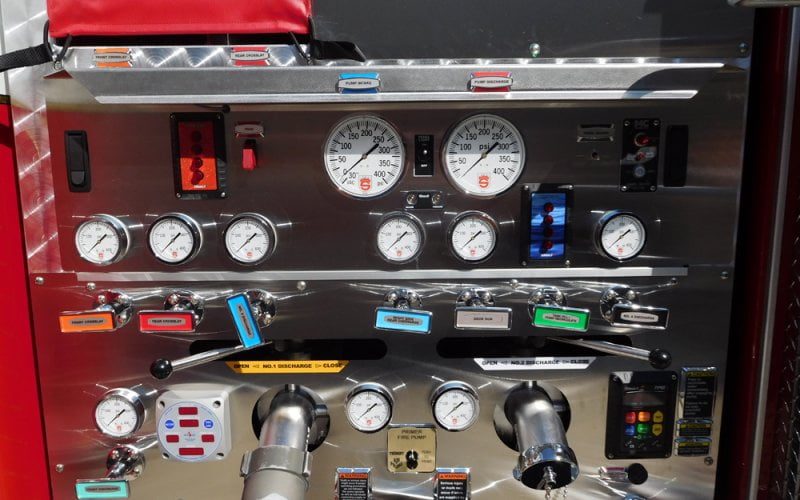

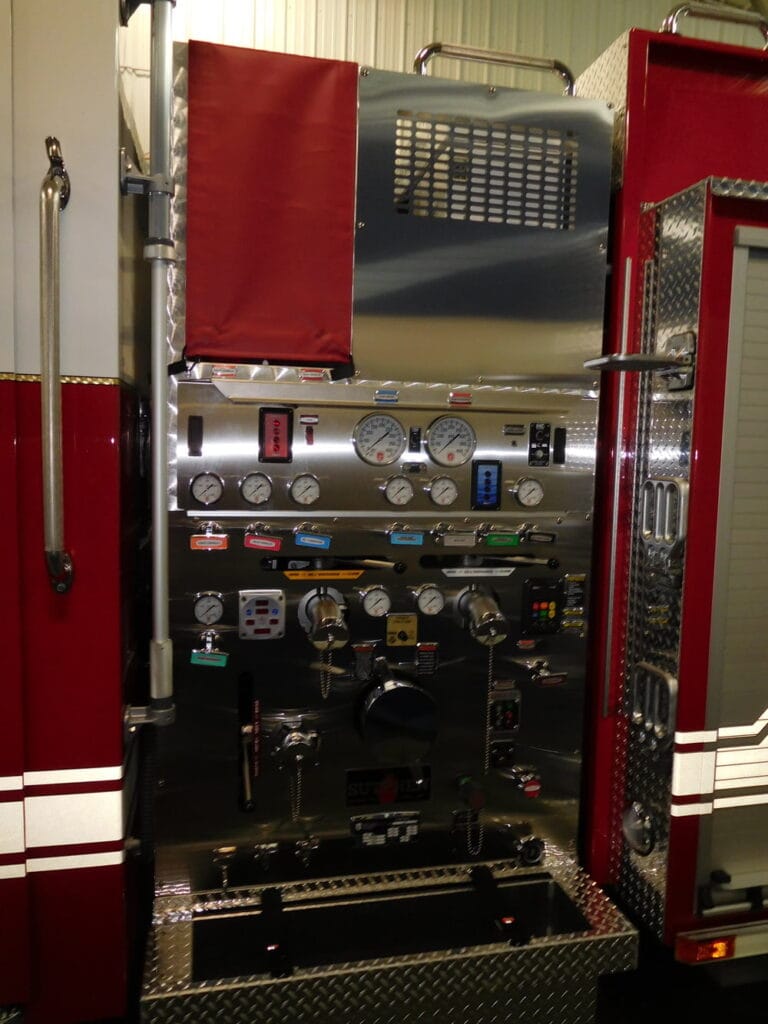

PUMP: Hale

  • Q-MAX- 1500 GPM
  • Discharges: (2) 2.5” Left, (1) 3” Right, (1) 2.5” Right, (1) 2.5” Right Rear, (1) 1.5” Front Bumper, (1) 3” Deck Gun
  • 20-Gallon Foam Tank
  • Akron Foam Supply System with Flush
  • 1000-Gallon Water Tank

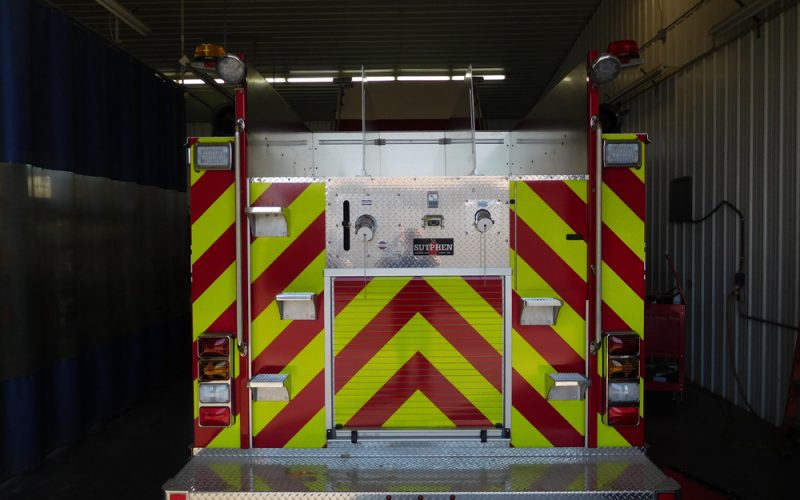

BODY: Sutphen

  • Aluminum
  • ROM Roll-up Doors
  • 222 Cu. ft. Total Compartment Space
  • Alco-Lite PEL-24

OPTIONAL EQUIPMENT:

  • 24” Bumper with 5” front suction
  • Safety Vision Camera System
  • 6 KW Smart Power Generator
  • Federal Q2B
  • Ladder Storage: Chute with backboard storage
