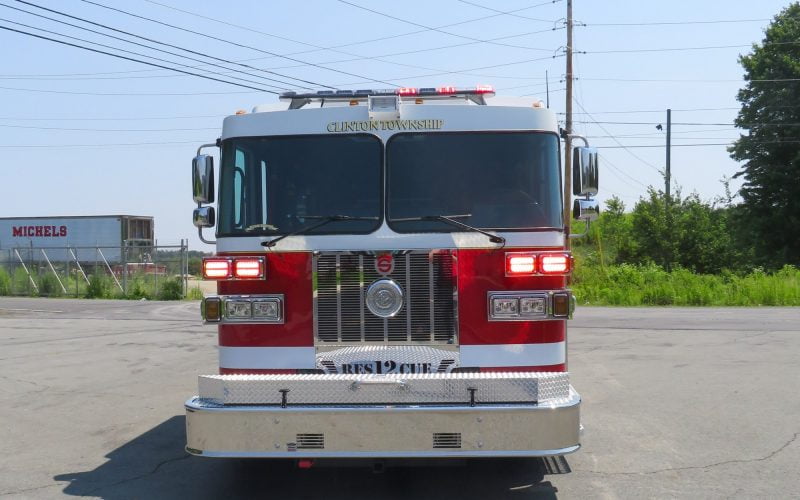

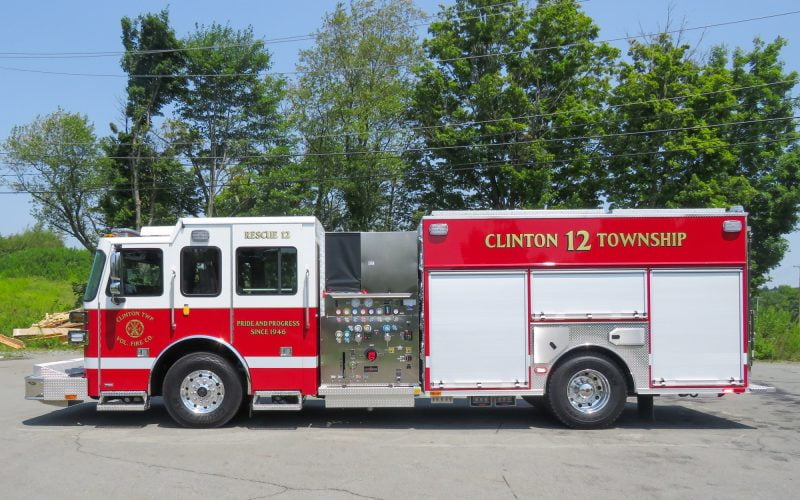

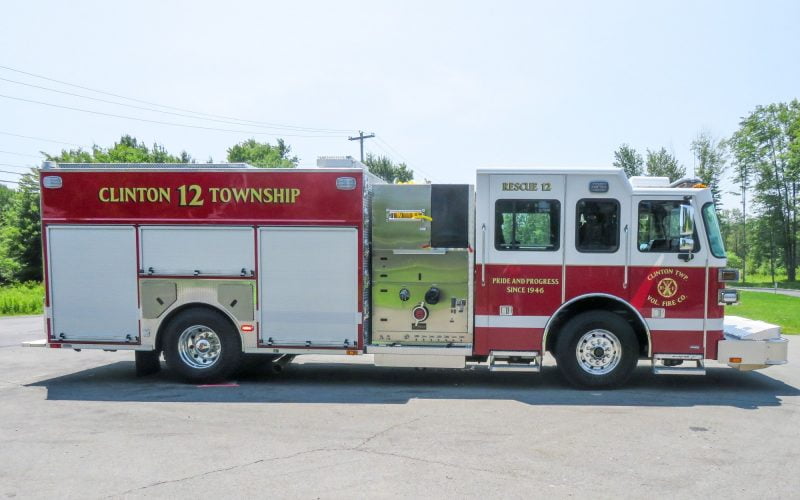

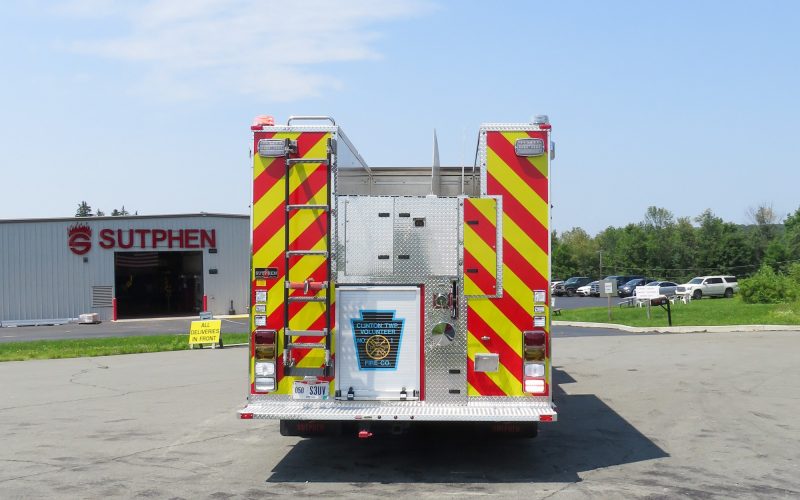

Delivery Date:
06/23/2021
Department Name:
Clinton Township VFC
Department City / State:
Montgomery, PA

Sutphen Corporation – HS #6856

Dealer – Signal 1 Fire Equipment

WHEELBASE: 208”

TRAVEL HEIGHT: 9’ – 9”

TRAVEL LENGTH: 33’ – 11 ¼”

CHASSIS:             Sutphen Monarch Heavy-Duty Custom Chassis, 62” Extended Cab with a 10” Raised Roof

  • Four-Door, Six-Person Cab
  • 10” Double Frame Rails (50K PSI)
  • Front Axle and Suspension 19,000 lbs
  • Rear Axle and Suspension 27,000 lbs
  • Engine: Cummins L 9, 450 HP
  • Alternator: Leece Neville, 270 AMP
  • Transmission: Allison Gen 5, EVS 3000

PUMP:                 Hale

  • QMAX-1500 GPM, Single Stage Pump
  • Discharges: (2) 2 ½” Left, (1) 4” Right, (1) 2 ½” Right, (2) 2 ½” Front/Right of Main Hosebed, (1) 2 ½” Front Bumper, (1) 3” Deck Gun
  • Crosslay: (3) 1 ½” & (1) 2 ½” w/ Swivels Single Stacked
  • 750-Gallon Water Tank

BODY:                  Sutphen

  • 3/16” Extruded Aluminum
  • Amdor Roll-Up Compartment Doors
  • Over 410 cu. ft. Total Compartment Space
  • Alco-Lite Ladder Package (PEL-24 24’ 2-Section & PRL-14 14’ Roof & 10’ Folding)
  • Body: S8 – Alum 56/53 Ladder Through Tank & Double Hatch

ADDITIONAL EQUIPMENT:

  • 30” Polished Stainless Steel Bumper Extension
  • Federal Q2B Siren, Grille Mount
  • Camera System: FRC, Inview Trueview, Single Camera
  • Hannay Electric Cord Reel, 150’ (1)
  • Generator: 20KW Smart Power
  • Whelen 62” Justice Lightbar
  • Whelen PFH1 Brow Light
  • Whelen M9 Scene Lights
  • Command Light KL450 Light Tower
