Delivery Date:
09/07/2019
Department Name:
Claysville Volunteer Fire Department
Department City / State:
Claysville, PA

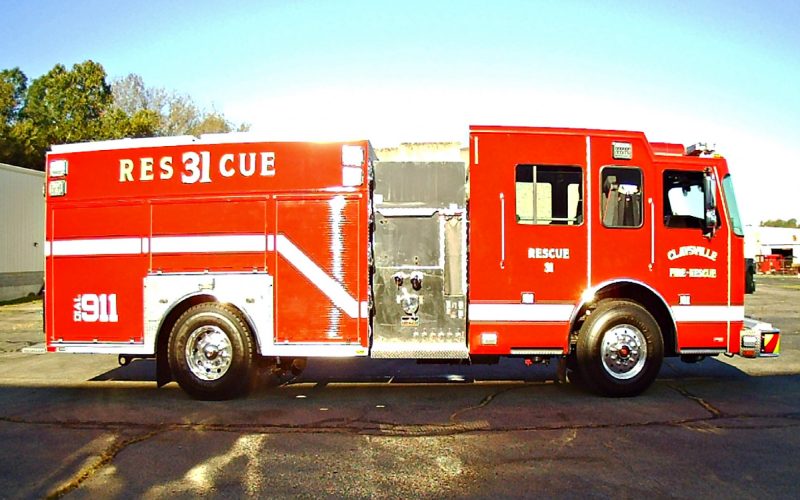

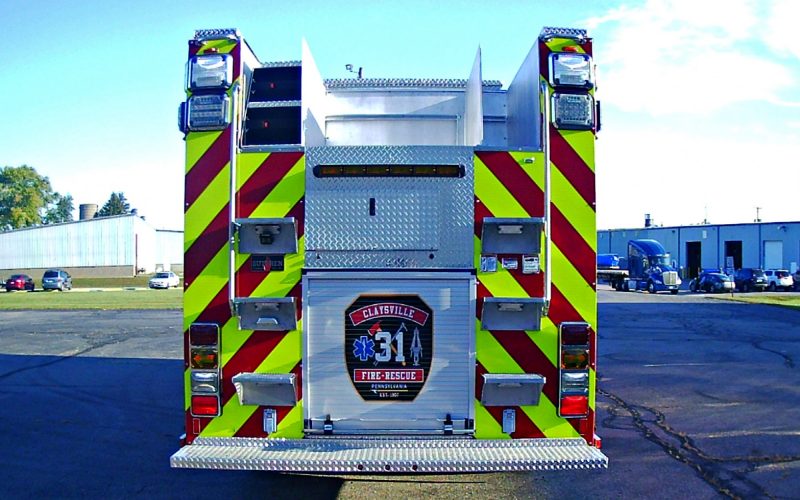

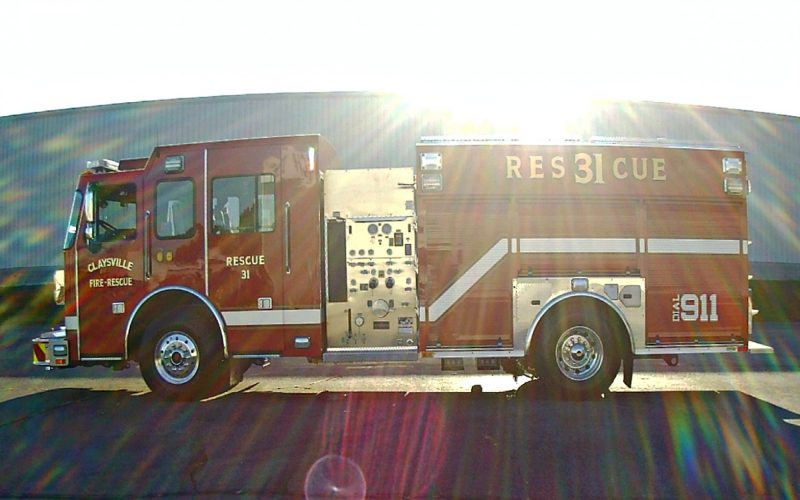

Sutphen Corporation – HS #6465

WHEEL BASE: 196”

TRAVEL HEIGHT: 9’ – 10”

TRAVEL LENGTH: 32’ – 3”

CHASSIS:             Sutphen Monarch Heavy-Duty Custom Chassis, 73” Extended Cab with a 10” Raised Roof

  • Four-Door, Six-Person Cab
  • 10” Double Frame Rails (50K PSI)
  • Front Axle and Suspension 20,000 lbs
  • Rear Axle and Suspension 27,000 lbs
  • Engine: Cummins L 9, 450 HP
  • Alternator: Niehoff, 360 AMP
  • Transmission: Allison Gen 5, EVS3000

PUMP:                 Hale

  • QMAX-1500 GPM, Single Stage Pump
  • Discharges: (2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (1) Right Rear 2 ½” Hosebed, (1) 1 ½” Front Bumper
  • 1,000-Gallon Water Tank
  • Speedlay: (2) 2” Speedlays w/ 1 ½” Swivel and Poly Lift-Out Tray

BODY:                  Sutphen

  • 3/16” Extruded Aluminum
  • Amdor Roll-Up Compartment Doors
  • 252 cu. ft. Total Compartment Space
  • Alco-Lite Ladder Compliment
  • Ladder Chute
  • Body: G9 – Alum 40/51 Ladders Through Tank

ADDITIONAL EQUIPMENT:

  • 18” Polished Stainless Steel Bumper Extension
  • Federal Q2B Siren, Grille Mount
  • Aims Model PWRINV10KW12V DC to AC Power Inverter
  • Camera System, FRC, Inview TrueView, Single Camera
  • Akron Scenestar Brow Light
  • Whelen Freedom LED Lightbar
  • Whelen Traffic Advisor, TAL65 36”
  • Hi-Viz Guardian Elite LED Scene Lights
  • Whelen LED Traffic Advisor
  • Triple Air Bottle Compartments (3)
