Delivery Date:
09/14/2022
Department Name:
Bowling Green Fire Department
Department City / State:
Bowling Green, MD

Sutphen Corporation – HS #7033

Dealer – FAST of the Allegheny Mountains

WHEELBASE: 214 ½”

TRAVEL HEIGHT: 10’ – 4”

TRAVEL LENGTH: 34’ – 1”

CHASSIS:             Sutphen Monarch Heavy-Duty Custom Chassis, 73” Extended Cab with 15” Raised Roof

  • Four-Door, Eight-Person Cab
  • 13” Double Domex Frame Rails, Single Axle (110K PSI)
  • Front Axle and Suspension 23,000 lbs
  • Rear Axle and Suspension 27,000 lbs
  • Engine: Cummins X 12 600HP
  • Alternator: Leece Neville, 320 AMP
  • Transmission: Allison Gen 5, EVS4000

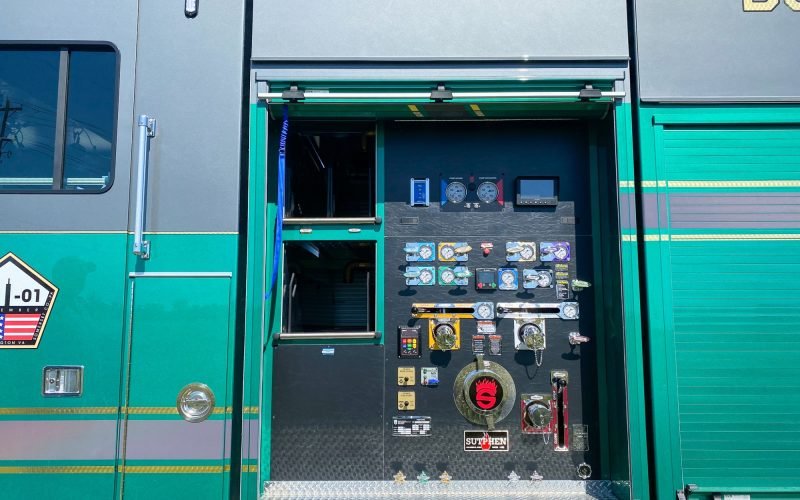

PUMP:                 Hale

  • QMAX-1500 GPM, Single Stage Pump
  • Discharges: (2) 2 ½” Left, (1) 4” Right, (1) 2 ½” Right, (1) 2 ½” Pipe to Left Rear, (1) 2 ½” Pipe to Right Rear, (1) 1 ½” Front Bumper
  • Speedlay: (1) 2 ½” Speedlay w/ Liftout Tray (SM) & (2) 1 ½” Speedlays w/ Liftout Tray
  • 750-Gallon Water Tank

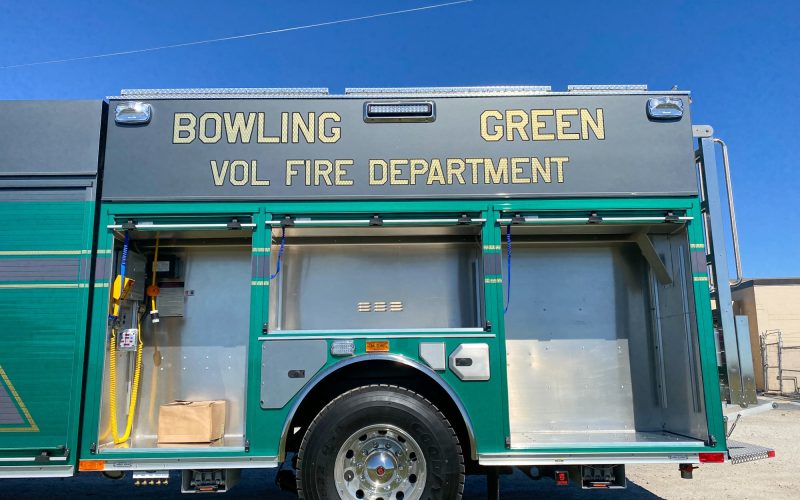

BODY:                  Sutphen

  • 3/16” Extruded Aluminum
  • ROM Roll up Compartment Doors
  • Over 355 cu ft. Total Compartment Space
  • Alco-Lite Ladder Rack: PEL-24 24’ 2-Section & PRL-14 14’ Roof & 10’ Folding
  • Body: PA-17 43/53 Chute & Double Hatch & 40” D A1

ADDITIONAL EQUIPMENT:

  • 18” Formed Steel Channel, Bumper Extension
  • Federal Q2B Siren, Grille Mount
  • Camera System: Voyager 3
  • Intercom System: FireCom 5100D, Single Radio, 8 Positions
  • Hannay Electric Cord Reel, 150’ (2)
  • Generator: Smart Power, 10KW HYD
  • Will-Burt Light Tower
  • Whelen 72” Freedom IV LED Lightbar
  • FireTech, 72” 3-Piece 12V LED Brow
  • Whelen M9 12V Scene Light
  • Whelen TAL65 Traffic Advisor
