Delivery Date:
02/23/2021
Department Name:
Bloomfield Township Fire Department
Department City / State:
Bloomfield Township, MI

Sutphen Corporation – HS #6815

Dealer – Apollo Fire Equipment

WHEELBASE: 196”

TRAVEL HEIGHT: 9’-8”

TRAVEL LENGTH: 33’

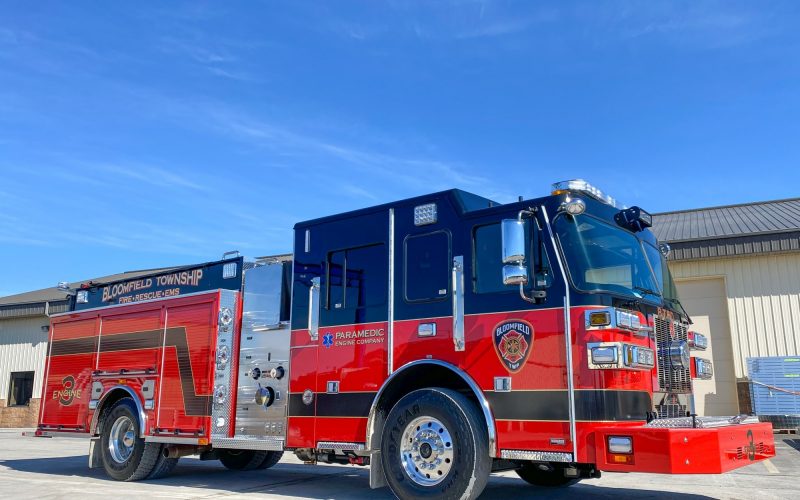

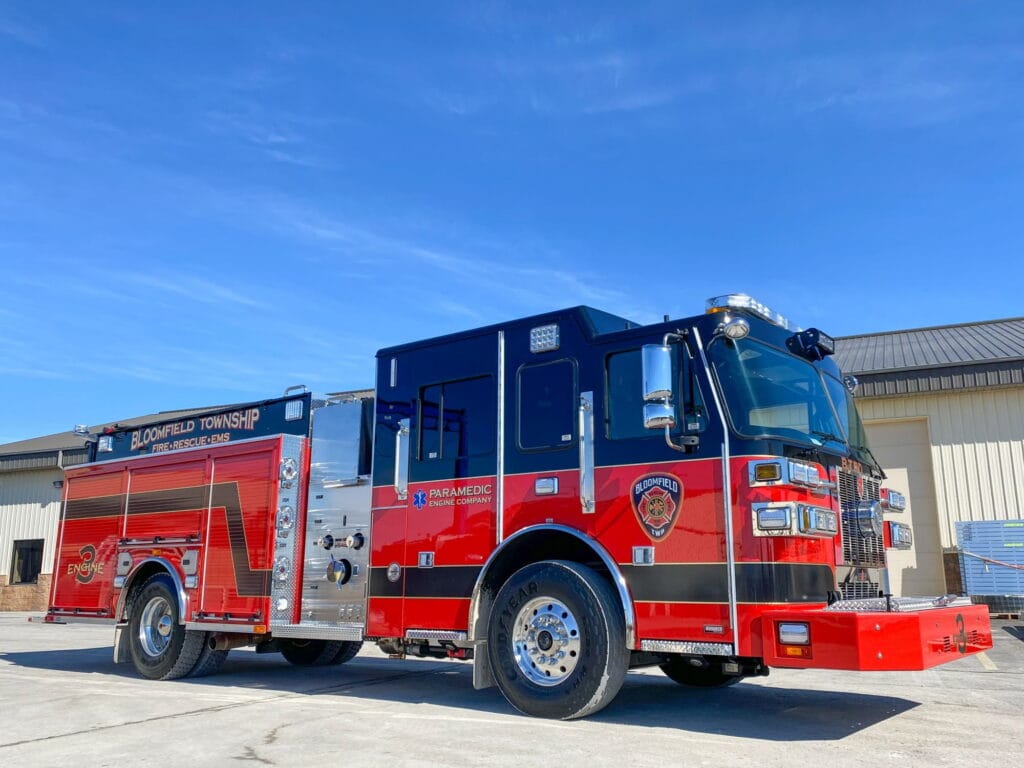

CHASSIS:             Sutphen Monarch Heavy-Duty Custom Chassis, 73” Extended Cab w/ 10’ Raised Roof

  • Four-Door, four-person cab
  • 10” Double Rails, Single Axle (50K PSI)
  • Front Axle and Suspension 19,000 lbs.
  • Suspension Rear Firemaax 24,000 lbs.
  • Engine: Cummins L 9, 450 HP
  • Alternator: Leece Nieville 320 AMP
  • Transmission: Allison Gen 5, EVS3000

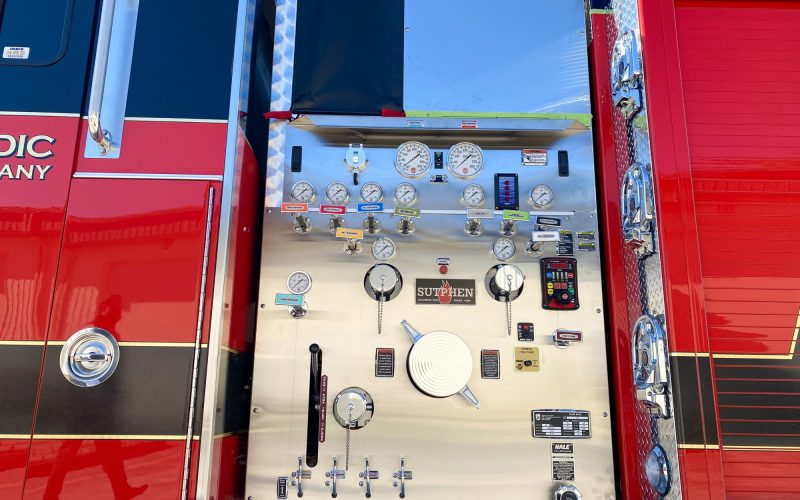

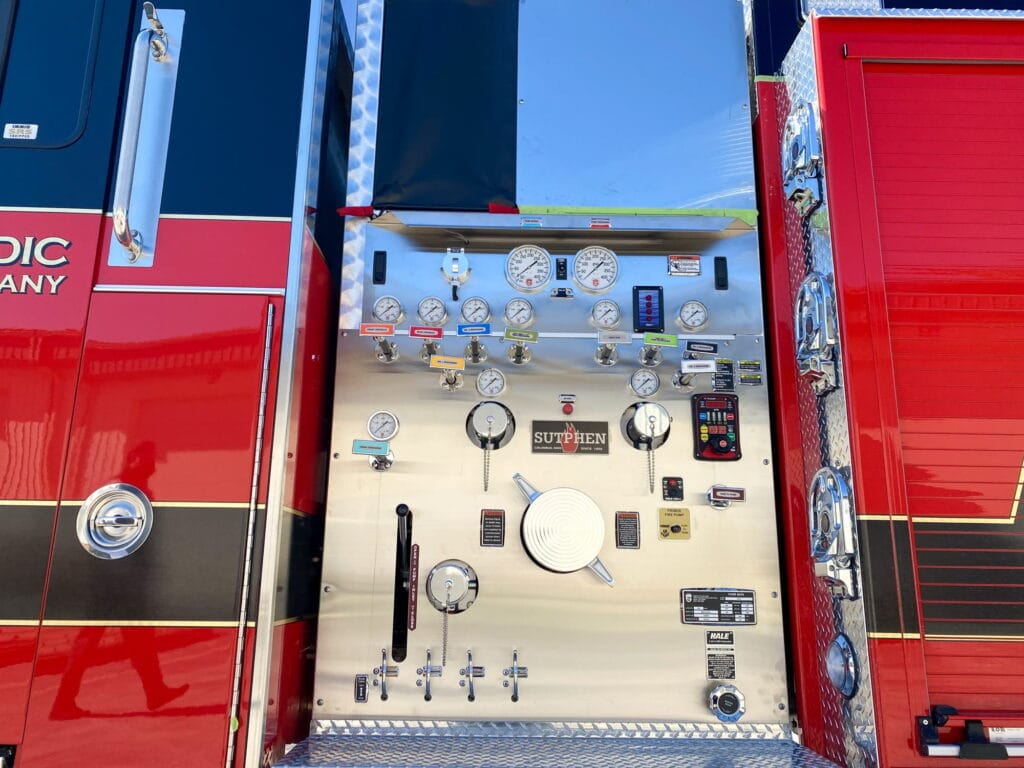

PUMP:                 Hale

  • QMAX-1500 GPM, Single Stage Pump
  • Discharges: (2) 2 ½” Left, (1) 3” Right, (1) 2 ½”Right, ( (1) 2 ½” Front Bumper w/ 2 ½” Plumbing, (1) 2 ½” Left Rear, (1) 3” Deck Gun
  • Crosslays: (1) 2” with 1 ½” Swivel, and (1) 2 ½” with 2 ½” Swivel
  • 750-Gallon Water Tank

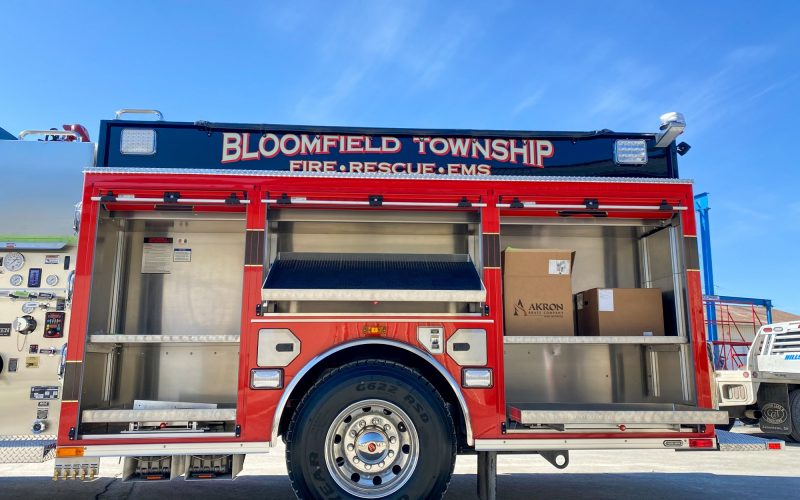

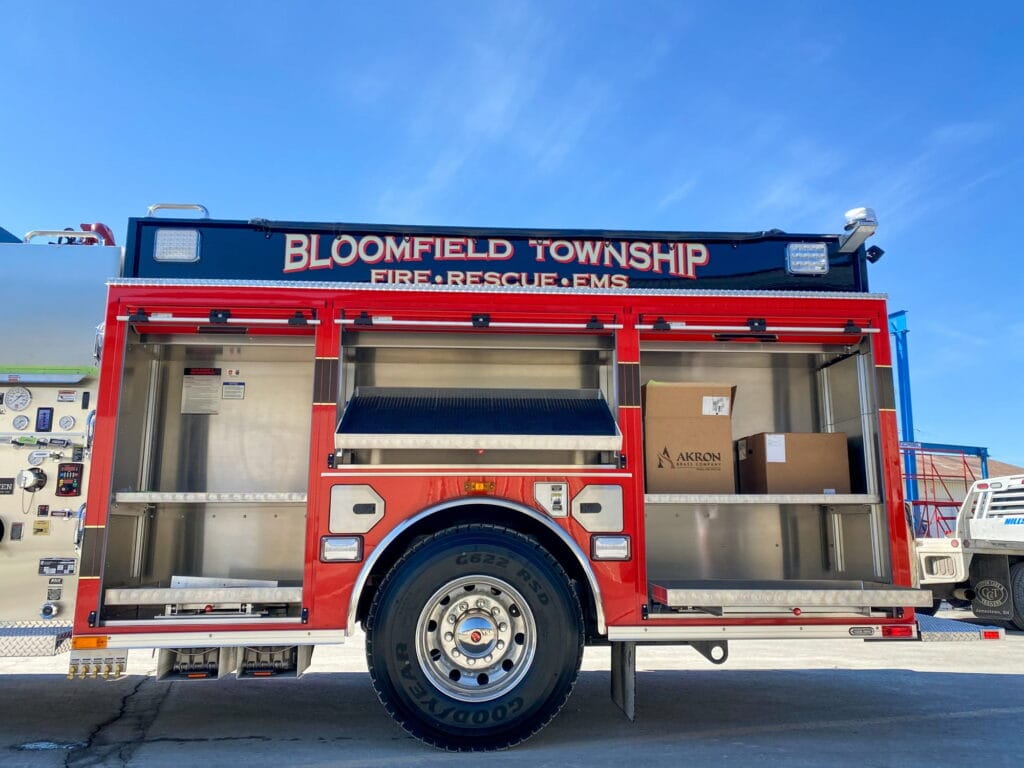

BODY:                  Sutphen

  • 3/16” Extruded Aluminum
  • AMDOR Roll Up Compartment Doors
  • 233.3 cu. ft. Total Compartment Space
  • Ladder Chute with Backboard Storage
  • Body: S2

ADDITIONAL EQUIPMENT:

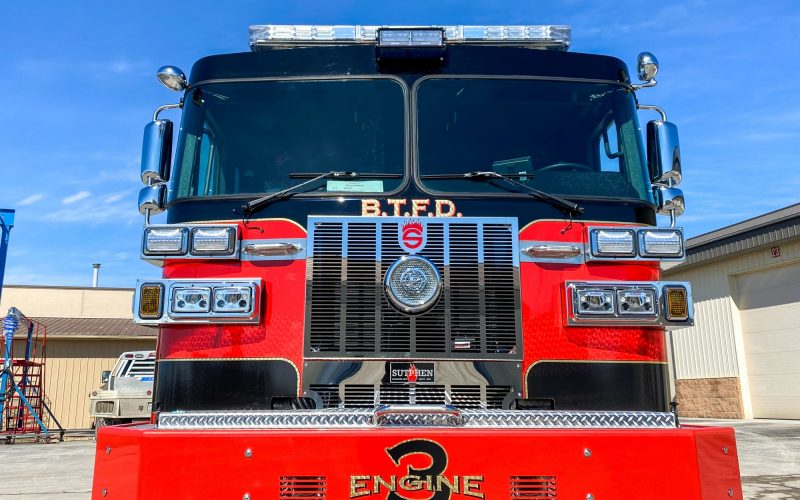

  • 24” Formed Steel Channel Bumper, Painted
  • Federal Q2B Siren, Grille Mount
  • Camera System: Safety Vision SV-CLCD0-70 (Wired)
  • Whelen PFH2 Brow Light
  • Whelen Freedom LED Lightbar
  • Whelen 600 RED LEDs
  • Whelen C9 12V Scene Lights
