Delivery Date:
05/11/2019
Department Name:
Bloomfield Township Fire Department
Department City / State:
Bloomfield Township, MI

WHEEL BASE: 196”

TRAVEL HEIGHT: 9’ – 8”

TRAVEL LENGTH: 32’ – 11”

CHASSIS:             Sutphen Monarch Heavy Duty-Custom Chassis, 73” Extended Cab with a 10” Raised Roof

  • Four-Door, Four-Person Cab
  • 10” Single Frame Rails (50K PSI)
  • Front Axle and Suspension 20,000 lbs
  • Rear Axle and Suspension 24,000 lbs
  • Engine: Cummins L 9, 450 HP
  • Alternator: Leece Neville, 320 AMP
  • Transmission: Allison Gen 5, EVS3000

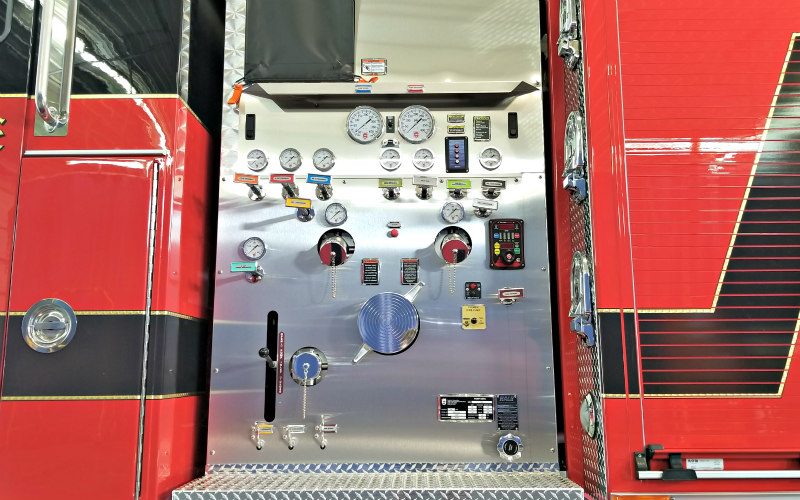

PUMP:                 Hale

  • QMAX-1500 GPM Single Stage
  • Discharges: (2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (1) 2 ½” Left Rear, (1) 2 ½” Front Bumper, (1) 3” Deck Gun
  • Crosslays: (1) 2” w/ 1 ½” Swivel and (1) 2 ½” w/ 2 ½” Swivel
  • Monitor: Akron 3423 Apollo
  • 750-Gallon Water Tank

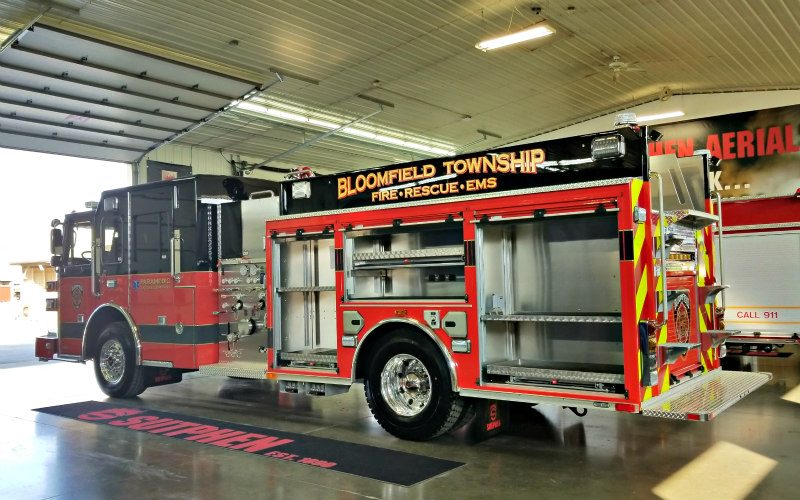

BODY:                  Sutphen

  • 3/16” Extruded Aluminum
  • ROM Roll-Up Compartment Doors
  • Over 233” cu. ft. Total Compartment Space
  • Alco-Lite (PEL-24 24’’ 2-Section & PRL-14 14’ Roof & 10’ Folding)
  • Ladder Chute w/ Backboard Storage

ADDITIONAL EQUIPMENT:

  • Federal Q2B Siren, Flush Grille Mounted
  • 24” Formed Steel Channel Bumper Extension
  • Whelen PFP2 Brow Light
  • Whelen Freedom LED Lightbar
  • Whelen 900 LED Scene Lights
  • Whelen LED TAL65 36” Traffic Advisor
