Delivery Date:
12/17/2020
Department Name:
Blanchard Township Fire Department
Department City / State:
Ottawa. OH

Sutphen Corporation – HS #6718

Dealer – Herb Fire

WHEELBASE: 187”

TRAVEL HEIGHT: 9’ – 10”

TRAVEL LENGTH: 32’

CHASSIS:              Sutphen Monarch Heavy-Duty Custom Chassis, 62” Extended Cab w/ 10” Raised Roof

  • Four-Door, Six-Person Cab
  • 10” Single Domex Frame Rails (110K PSI)
  • Front Axle and Suspension 18,000 lbs
  • Rear Axle and Suspension 27,000 lbs
  • Engine: Cummins L 9, 380 HP
  • Alternator: Leece Neville, 320 AMP
  • Transmission: Allison Gen 5, EVS3000

PUMP:                  Hale

  • XS QMAX-1500 GPM, Single Stage Pump
  • Discharges: (2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (1) 2 ½” Left Rear, 1 ½” Bumper, (1) 3″ Deck Gun
  • Speedlay: (2) 2” w/ 1 ½” Swivel and Poly Lift-Out Trays
  • 1000-Gallon Water Tank
  • 20-Gallon Foam Tank
  • Hale Smart Foam 2.1A Foam System

BODY:                   Sutphen

  • ROM Roll-Up Compartment Doors

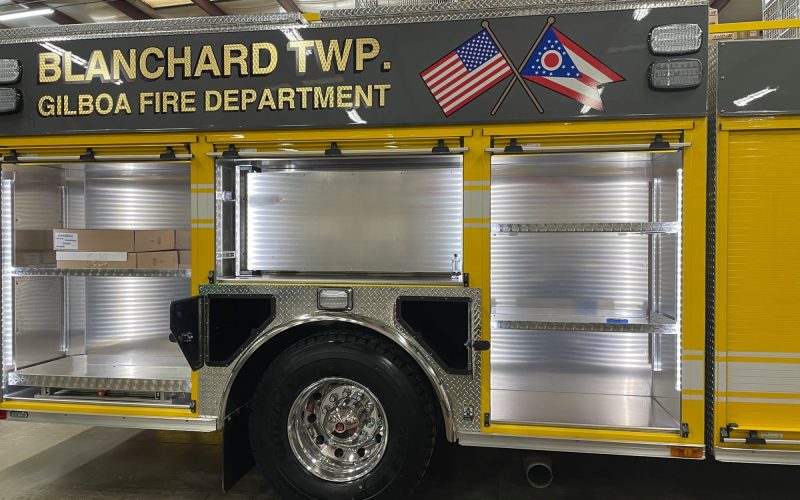

  • 294 cu. ft. Total Compartment Space
  • Alco-Lite Ladder Package (PEL- 24 24’ 2-Section & PRL-14 14’ Roof & 10’ Folding)
  • Ladder chute
  • Body: G9 – Alum 40/51 Ladders Thru Tank

ADDITIONAL EQUIPMENT:

  • 24” Formed Steel Channel Bumper Extension
  • Federal Q2B Siren, Grille Mount
  • (2) Triple Air Bottle Compartments
  • FRC Spectra Brow Light
  • FRC Spectra 20K Lumen Scene Lights
  • Whelen Freedom 72” LED Lightbar
  • Whelen 600 Red LED
  • Whelen 900 Scenes
  • Whelen M9 Red LED
