Delivery Date:
07/11/2019
Department Name:
Ada Fire Department
Department City / State:
Ada, OK

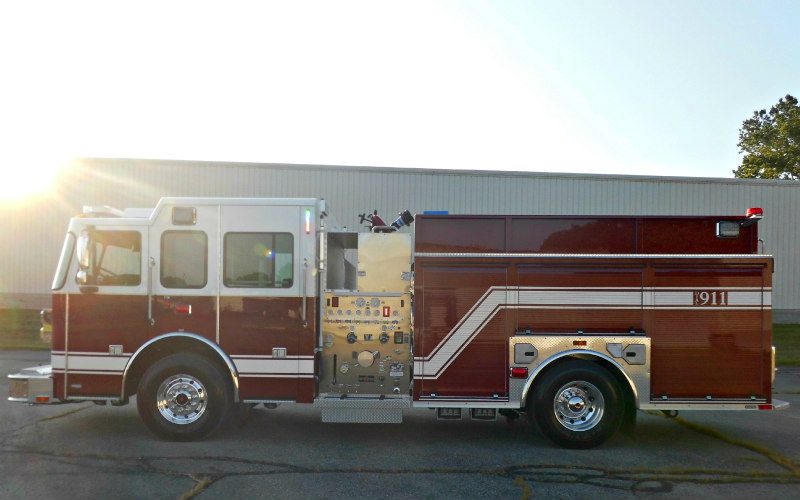

Sutphen Corporation – HS #6425

WHEEL BASE: 185”

TRAVEL HEIGHT: 9’ – 10”

TRAVEL LENGTH: 31’ – 4”

CHASSIS:             Sutphen Monarch Heavy-Duty Custom Chassis, 62” Extended Cab with a 10” Raised Roof

  • Four-Door, Four-Person Cab
  • 10” Double Frame Rails (50K PSI)
  • Front Axle and Suspension 19,000 lbs
  • Rear Axle and Suspension 27,000 lbs
  • Engine: Cummins L 9, 450 HP
  • Alternator: Niehoff 360 AMP
  • Transmission: Allison Gen 5, EVS 3000

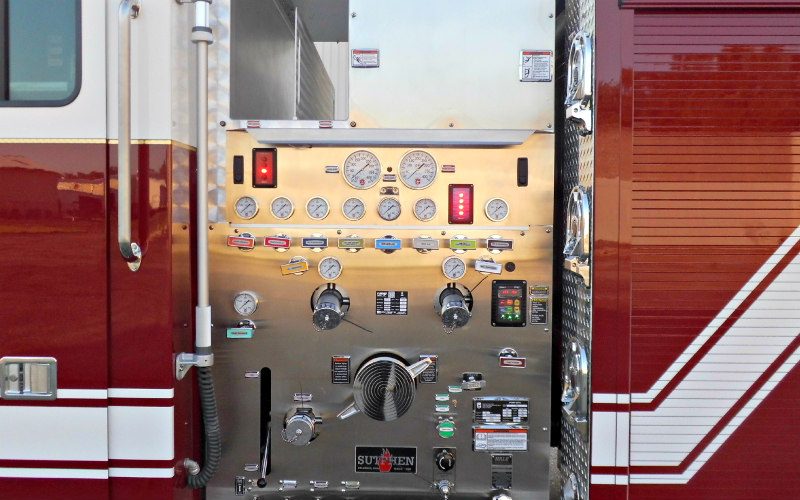

PUMP:                 Hale

  • QFLO-1250 GPM, Single Stage

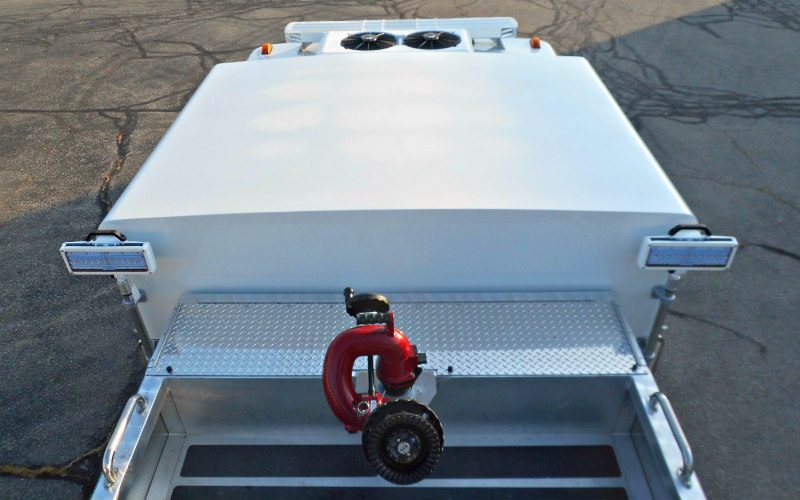

  • Discharges: (2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (1) 2 ½” Left Rear, (1) 2 ½” Right Rear, (1) 1 ½” Front Bumper, (1) 3” Deck Gun
  • Crosslays: (2) 2” w/ 1 ½” Swivel
  • 1,000-Gallon Water Tank
  • 30-Gallon Foam Tank
  • Elkhart Foam Supply System w/ Flush

BODY:                  Sutphen

  • 3/16” Extruded Aluminum
  • Amdor Roll-Up Compartment Doors
  • Over 246 cu. ft. Total Compartment Space
  • Alco-Lite (PEL-24 24’ 2-Section and PRL-14 14’ Roof and 10’ Folding)
  • Ladder Chute

ADDITIONAL EQUIPMENT:

  • 18” Polished Stainless Steel Bumper Extension
  • Safety Vision SV-CLCD0-70 Camera System
  • Federal Q2B, Grille Mount
  • FRC Spectra Brow Light
  • FRC Spectra Telescopic Lights
  • FRC 900 LED Scene Lights
  • Whelen Freedom LED Lightbar
  • (4) Air Bottle Compartments
