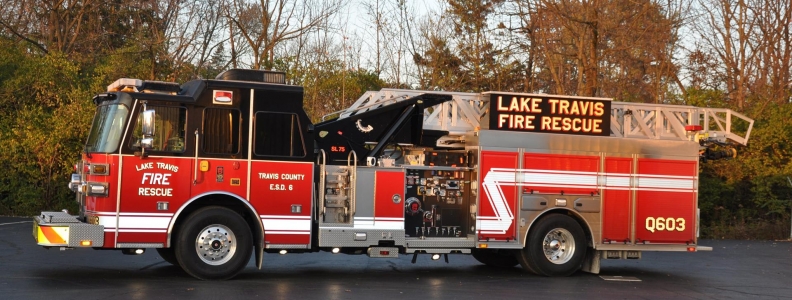

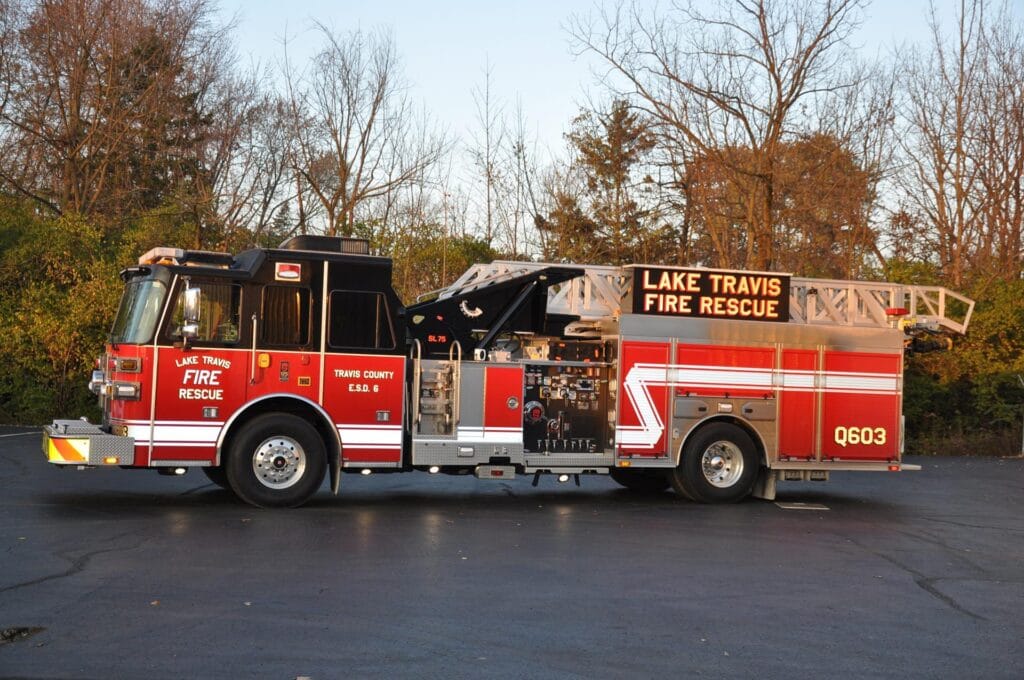

Lake Travis, TX – SL 75 Aerial Ladder

WHEEL BASE: 223″

TRAVLE HEIGHT: 10′-1/2″

TRAVEL LENGTH: 40′-3″

CHASSIS:             Sutphen 56” cab with half 10” raised roof

  • Four-Door, Six-Person Cab
  • Front Axle and Suspension: 23,000 Lb.
  • Rear Axle and Suspension: 31,000 Lb.
  • Engine: Cummins ISL 9 450HP
  • Alternator: Leece Neville 320 AMP
  • Transmission: Allison Gen 5, EVS3000

PUMP:

  • Cobra EXM 1500 GPM
  • Discharge: (2) 2.5″ Left, 3″ Right, 2.5″ Right, 1.5″ Front Bumper, 2″ Plumbing,
  • 500 Gallon Water Tank with a 40 Gallon Foam Cell

BODY:

  • Stainless Steel
  • 217 cu. ft. Total Compartment Space

OPTIONAL EQUIPMENT:

  • Scene Lights, Whelen
  • Federal Q2B
  • 24” Bumper
  • Ziamatic Sac-44 Folding Wheel Chocks with holders
  • Hannay Reel W/200 FT. 10/3
