Delivery Date:
10/20/2021
Department Name:
Strongsville Fire Department
Department City / State:
Strongsville, Ohio

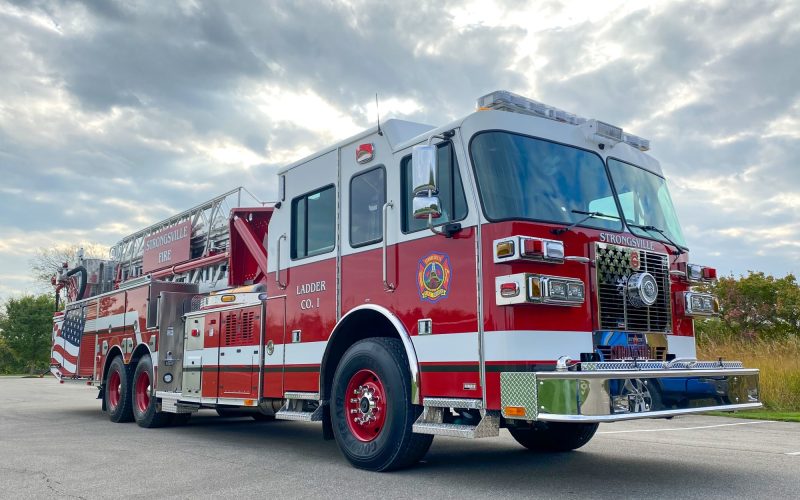

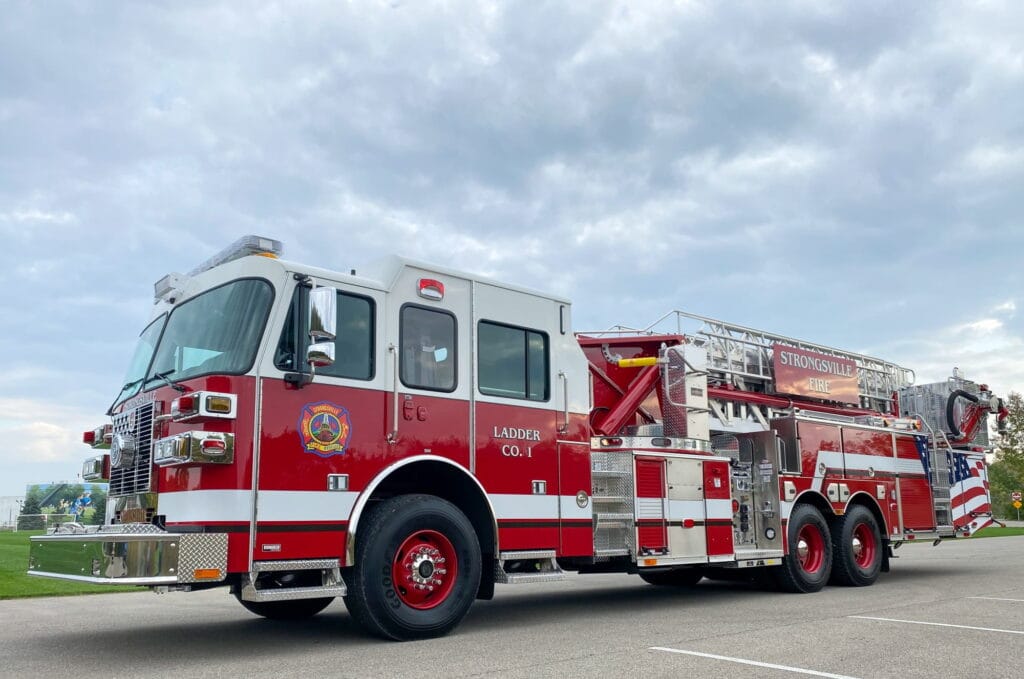

Sutphen Corporation – HS #6792

Dealer – Herb Fire Equipment

WHEELBASE: 247”

TRAVEL HEIGHT: 11’ – 6”

TRAVEL LENGTH: 48’

CHASSIS:             Sutphen Monarch Heavy-Duty Custom Chassis, 73” Cab w/ a 10” Raised Roof

  • Four-Door, Four-Person Cab
  • 10” Double Domex Frame Rails, Tandem Axle – Aerial (110K PSI)
  • Front Axle and Suspension 24,000 lbs
  • Rear Axle and Suspension 52,000 lbs
  • Engine: Cummins X 12 500HP
  • Alternator: Leece Neville, 320 AMP
  • Transmission: Allison Gen 5, EVS4000

PUMP:                 Hale

  • QMAX-2000 GPM, Single Stage Pump
  • Discharges: (2) 2 ½” Left, (1) 3” Right, (2) 2 ½” Right, (1) 1 ½” Front Bumper
  • Crosslay: (1) 2 ½” Crosslay, 2 ½” Swivel & (2) 2” Crosslays w/ 1 ½” Swivel
  • 500-Gallon Water Tank

BODY:                  Sutphen

  • HuckBolted #304 Stainless Steel
  • SPH Mixed Roll up and hinged compartment doors
  • Over 287 cu. ft. Total Compartment Space
  • Alco-Lite Ladder Compliment: 17’ Little Giant, (2) 16’ Roof, 24’-2Sec, 35’-2Sec
  • Body: SPH-3, LEFT 56″ H / RIGHT 56″H

ADDITIONAL EQUIPMENT:

  • 18” Polished Stainless-Steel Bumper
  • Federal Q2B Siren, Grille Mount
  • Camera System: FRC, Inview Trueview
  • FRC ACT 2-Station Intercom System
  • Hannay Electric Cord Reel, 175’ (1)
  • Generator: Harrison, 10KW HYD
  • Whelen Freedom IV 81” Rota-Beam
  • Whelen 600 Warning Light
  • Whelen Pioneer Brow Light
  • 240V Spectra Tele Lights

MONITOR:

  • Driver Side Monitor: Akron 3482 Stream Master 2, Electric, 1250 GPM w/Akron 5177 Electric Nozzle
  • Officer Side Monitor: Akron 3483 Stream Master 2, Manual 1250 GPM
