Delivery Date:
11/08/2022
Department Name:
Murrysville Fire Co. No. 1
Department City / State:
Murrysville, PA

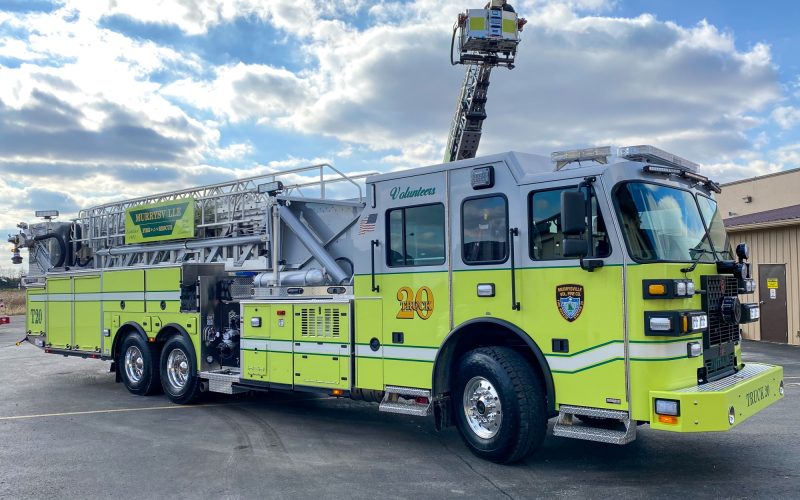

Sutphen Corporation – HS #7078

Dealer – FAST of the Allegheny Mountains

WHEELBASE: 247”

TRAVEL HEIGHT: 11’ – 6”

TRAVEL LENGTH: 47’ – 6”

CHASSIS:             Sutphen Monarch Heavy-Duty Custom Chassis, 73” Extended Cab with a 10” Raised Roof

  • Four-Door, Six-Person Cab
  • 10” Double Domex Frame Rails (110K PSI)
  • Front Axle and Suspension 24,000 lbs
  • Rear Axle and Suspension 52,000 lbs
  • Engine: Cummins X 15 600HP
  • Alternator: Leece Neville, 420 AMP
  • Transmission: Allison Gen 5, EVS4000

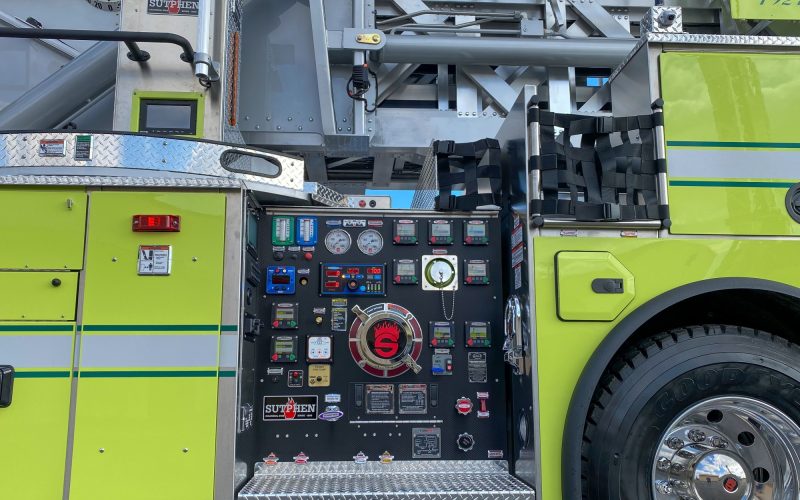

PUMP:                 Hale

  • QMAX-2000 GPM, Single Stage Pump
  • Discharges: (1) 2 ½” Left, (1) 4” Right, (1) 2 ½” Right
  • Crosslays: (1) 2 ½” Crosslay, 2 ½” Swivel & (2) 2” Crosslays w/ 1 ½” Swivel
  • 300-Gallon Water Tank
  • 30-Gallon Foam Tank
  • Foam System: FoamPro 2001, 2.6 GPM

BODY:                  Sutphen

  • Huckbolted #304 Stainless Steel
  • Mixed Roll-Up and Hinged Compartment Doors
  • Over 260 cu ft. Total Compartment Space
  • Combo Alco-Lite and Duo-Safety Ladder Package
  • Body: SPH-3, LEFT 56″ H / RIGHT 56″ H

ADDITIONAL EQUIPMENT:

  • 12” Formed Steel Channel, Bumper Extension
  • Federal Q2B Siren, Grille Mount
  • Camera System: Brigade Backeye 360 and FRC Inview TrueView
  • Intercom System: FRC ACT 3-Station
  • Hannay Electric Cord Reel, 150’ (2)
  • Generator: Smart Power, 6KW ER HYD
  • Whelen Freedom IV 60” Lightbar
  • FireTech 3-Piece Brow Light
  • Whelen Mini Freedom IV 21” Light Bar
  • FireTech Aerial Spotlights
  • 12V FireTech Tele Light

MONITOR:

  • Driver Side Monitor: TFT Monsoon RC, Electric, w/ Electric VUM
  • Officer Side Monitor: TFT Monsoon, Manual 1250 GPM w/ Manual VUM
  • Officer Side Nozzle: TFT M-R1250-NJ Automatic Fog Nozzle
