Delivery Date:
08/25/2021
Department Name:
Liberty Township Fire Department
Department City / State:
Powell, OH

Sutphen Corporation – HS #6784

Dealer – Herb Fire

WHEELBASE: 247”

TRAVEL HEIGHT: 11’ – 6”

TRAVEL LENGTH: 48’

CHASSIS:             Sutphen Monarch Heavy-Duty Custom Chassis, 73” Cab w/ 10” Raised Roof

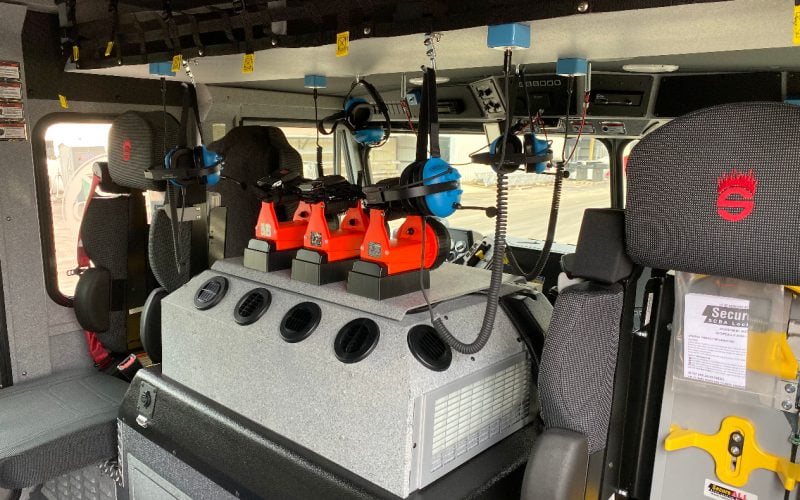

  • Four-Door, Five-Person Cab
  • 10” Double Domex Frame Rails, Tandem Axle – Aerial (110K PSI)
  • Front Axle and Suspension 24,000 lbs
  • Rear Axle and Suspension 52,000 lbs
  • Engine: Cummins X 12 500HP
  • Alternator: Leece Neville 320 AMP
  • Transmission: Allison Gen 5 EVS4000

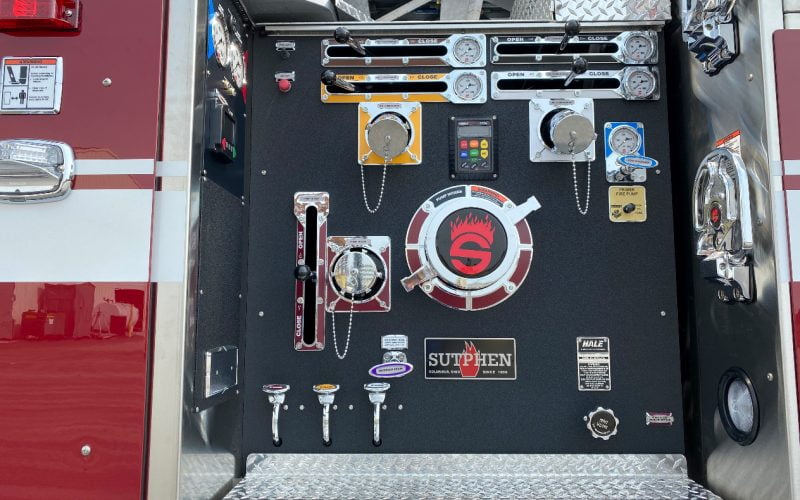

PUMP:                 Hale

  • QMAX-2000 GPM 6” Suction, Single Stage Pump
  • Discharges: (2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (1) 1 ½” Front Bumper
  • No Water Tank

BODY:                  Sutphen

  • Huckbolted #304 Stainless Steel
  • Mixed Hinged and Roll Up Compartment Doors
  • Alco-Lite Custom Ladder Complement: (1) 16’ Roof, (1) 20’ Roof, (2) 24’ 2-Section, (2) 28’ 2-Section, (1) 35’ 2-Section, (1) 16’ Roof, (2) 10 Fo
  • Body: SPH-3, LEFT 56″ H / RIGHT 56″H

ADDITIONAL EQUIPMENT:

  • 18” Formed Steel Channel Bumper, Painted
  • Federal Q2B Siren, Grille Mount
  • Camera System: Voyager 3
  • Intercom System: FRC ACT 2-Station
  • Hannay Electric Cord Reel, 175’ (2)
  • Generator: Smart Power 10KW
  • Whelen Freedom 72” LED Lightbar
  • Whelen Pioneer Summit 72” 12V Brow
  • Whelen Mini 21” LED Lightbar
  • FR Spectra 12V Scene
  • FR Spectra 240V Scene
  • FR Spectra 240V Tele

MONITOR:

  • Driver Side Monitor: Akron 3482 Stream Master2, Electric, 1250 GPM
  • Officer Side Monitor: Akron 3483 Stream Master2, Manual 1250 GPM
  • Officer Side Nozzle: Akron 2499 & 3488 Pipe
