Delivery Date:
10/21/2019
Department Name:
Iona McGregor Fire District
Department City / State:
Fort Myers, FL

Sutphen Corporation – HS #6410

Dealer – South Florida Emergency Vehicles

WHEEL BASE: 236”

TRAVEL HEIGHT: 11’ – 6”

TRAVEL LENGTH: 46’ – 1”

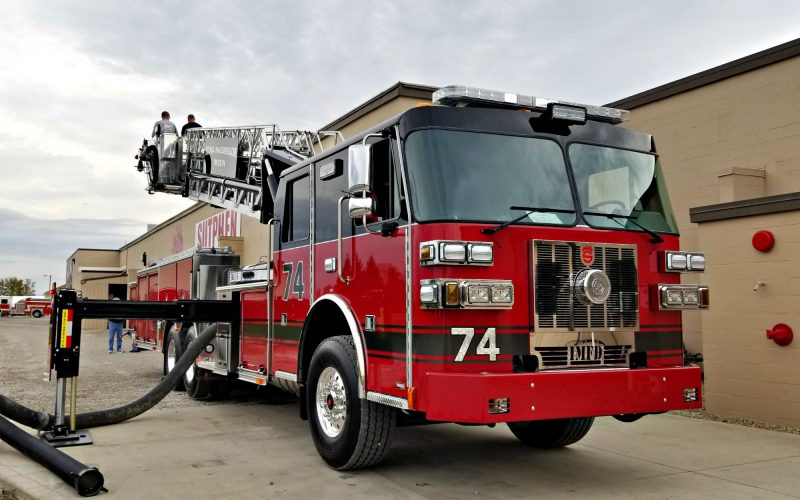

CHASSIS:             Sutphen Monarch Heavy-Duty Custom Chassis, 62” Extended Cab with a Flat Roof

  • Four-Door, Five-Person Cab
  • 10” Double Domex Frame Rails (110K PSI)
  • Front Axle and Suspension 23,000 lbs
  • Rear Axle and Suspension 52,000 lbs
  • Engine: Cummins X 12, 500 HP
  • Alternator: Leece Neville, 320 AMP
  • Transmission: Allison Gen 5, EVS 4000

PUMP:                 Hale

  • QMAX-2000 GPM, Single Stage Pump
  • Discharges: (2) 2 ½” Left; (1) 3” Right; (1) 2 ½” Right
  • Crosslays: (1) 2 ½” Crosslay, (1) 2 ½” Swivel & (2) 2” Crosslays with 1 ½” Swivel
  • 300-Gallon Water Tank

BODY:                  Sutphen

  • Huck Bolted #304 Stainless Steel
  • Amdor Roll-Up Compartment Door
  • Over 283 cu. ft. of Total Compartment Space

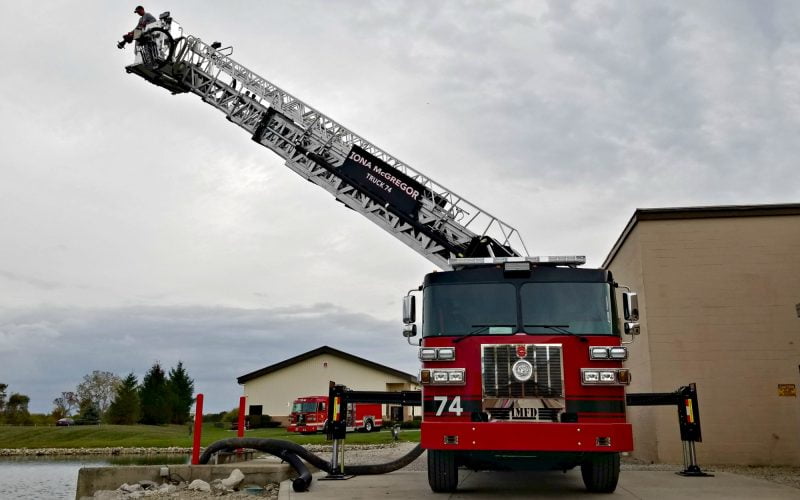

  • Special Ladder Package, Duo-Safety, 162’
  • Body: SPH-3: Left 56” High/ Right 56” High

ADDITIONAL EQUIPMENT:

  • 6” Bumper, Formed Steel Channel, Painted
  • Federal Q2B Siren, Grille Mount
  • 10KW Harrison Generator
  • Hannay Electric Cord Reel, 150’ (2)
  • FRC ACT 2-Station Intercom System
  • Brigade 360 Camera
  • FRC Spectra 12V LED Brow Light
  • FRC Spectra 12V LED Scene Lights
  • FRC Spectra 240V LED Scene Light
  • Whelen LED Lightbar
  • Whelen M9V2 Combo Warning/Scene Lights

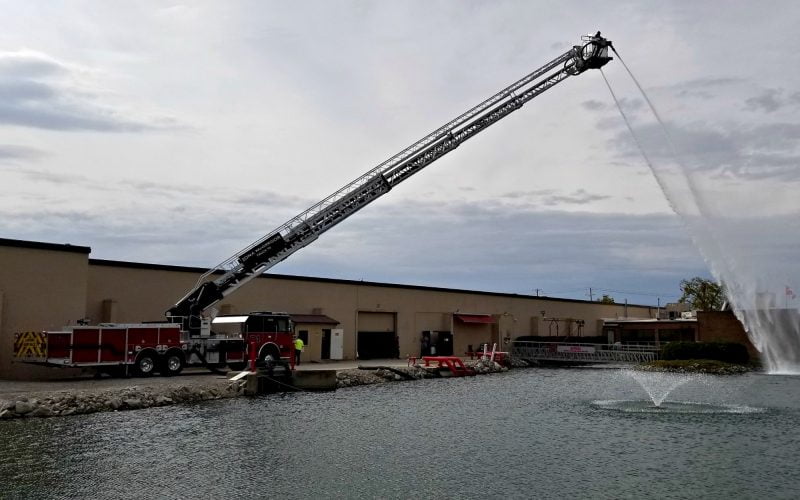

MONITOR:

  • Drive Side Monitor: Akron 3482 Stream Master2, Electric, 1250 GPM
  • Driver Side Nozzle: Akron 5177 Electric Nozzle
  • Officer Side Monitor: Akron 3473 Gemini Manual 1000 GPM
  • Officer Side Nozzle: Akron 5160 Auto
