Delivery Date:
07/29/2022
Department Name:
Courtenay Fire Department
Department City / State:
Courtenay, British Columbia

Sutphen Corporation – HS #7179

Dealer – Fort Garry Fire Trucks

WHEELBASE: 236”

TRAVEL HEIGHT: 11’ – 0”

TRAVEL LENGTH: 47’ – 0”

CHASSIS:             Sutphen Monarch Heavy-Duty Custom Chassis, 62” Extended Cab w/ 10” Raised Roof

  • Four-Door, Six-Person Cab
  • 10” Double Domex Frame Rails (110K PSI)
  • Front Axle and Suspension 23,000 lbs
  • Rear Axle and Suspension 52,000 lbs
  • Engine: Cummins X 12, 500HP
  • Alternator: Leece Neville, 420 AMP
  • Transmission: Allison Gen 5, EVS4500

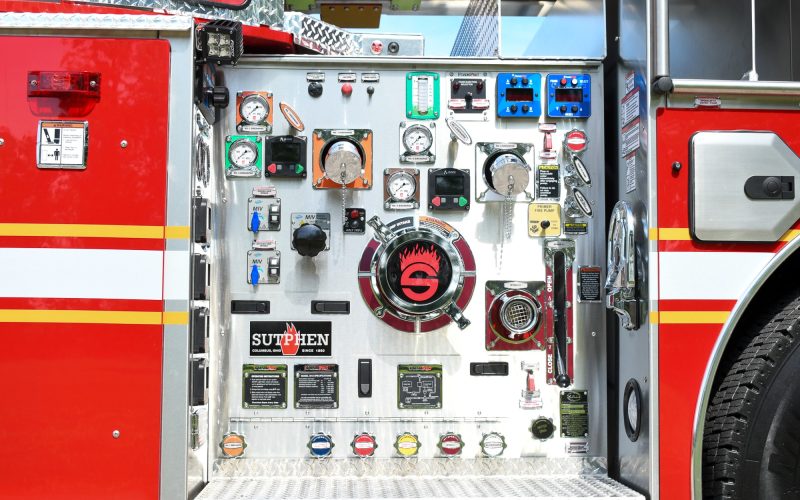

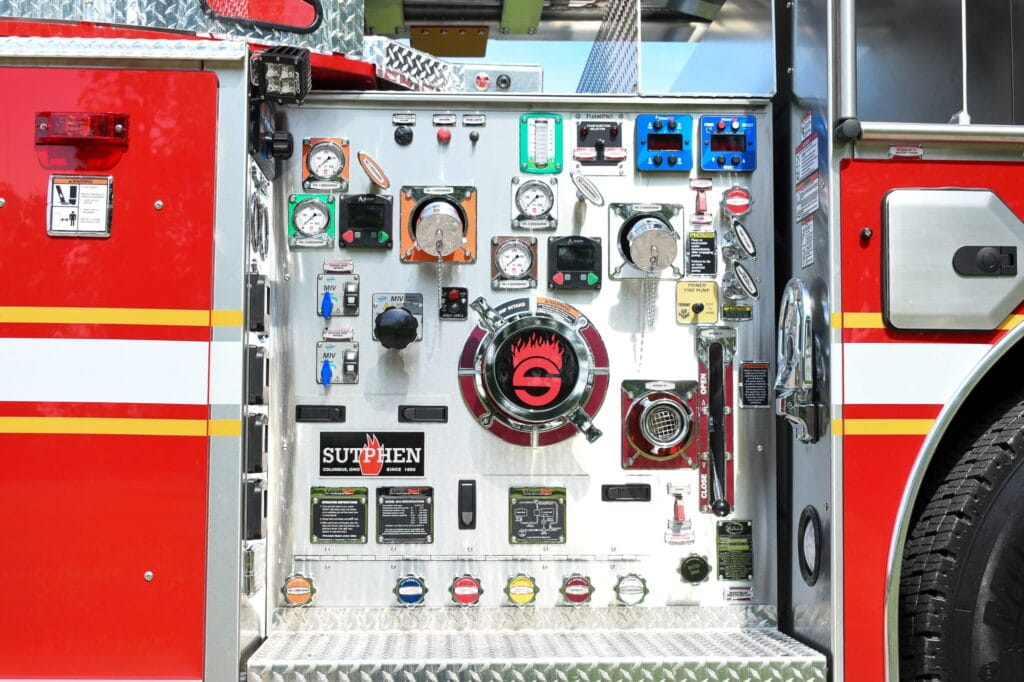

PUMP:                 Hale

  • QMAX-2000 GPM 6” Suction, Single Stage Pump
  • Discharges: (2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right
  • Crosslays: (1) 2 ½” Crosslays, (1) 2 ½” Swivel & (2) 2” Crosslays w/ 1 ½” Swivel
  • 270-Gallon Water Tank
  • 30-Gallon Foam Tank
  • Foam System: Foam Pro 3012

BODY:                  Sutphen

  • Huckbolt #304 Stainless Steel
  • SPH Mixed Amdor Roll-Up and Hinged Compartment Doors
  • Over 283 cu ft. Total Compartment Space
  • Duo-Safety Ladder Package: (1) 14’, (2) 16’ R, (1) 24’ 2-Section, (1) 35’ 2-Section, (1) 10’ Folding
  • Body: SPH-3, Left 56” H / Right 56” H

ADDITIONAL EQUIPMENT:

  • 12” Formed Steel Channel, Bumper Extension
  • Federal Q2B Siren, Grille Mount
  • Intercom System: FRC ACT 2-Station
  • Camera System: Brigade Backeye
  • Hannay Electric Cord Reel, 150’ (1)
  • Generator: 8KW Harrison HYD
  • Whelen Freedom IV 72” Lightbar
  • FireTech 3-Piece 12V Brow Light
  • FR Spectra 12V Scene Light
  • FR Spectra 240V Tele Lights

MONITOR:

  • Driver Side Monitor: Akron 3480 Stream Master2, Electric 2000 GPM w/ Akron 5178 Electric Nozzle
  • Officer Side Monitor: Akron 3483 Stream Master2, Manual 1250 GPM
  • Officer Side Nozzle: Akron 2499 & 3488 Pipe
