Delivery Date:
11/15/2023
Department Name:

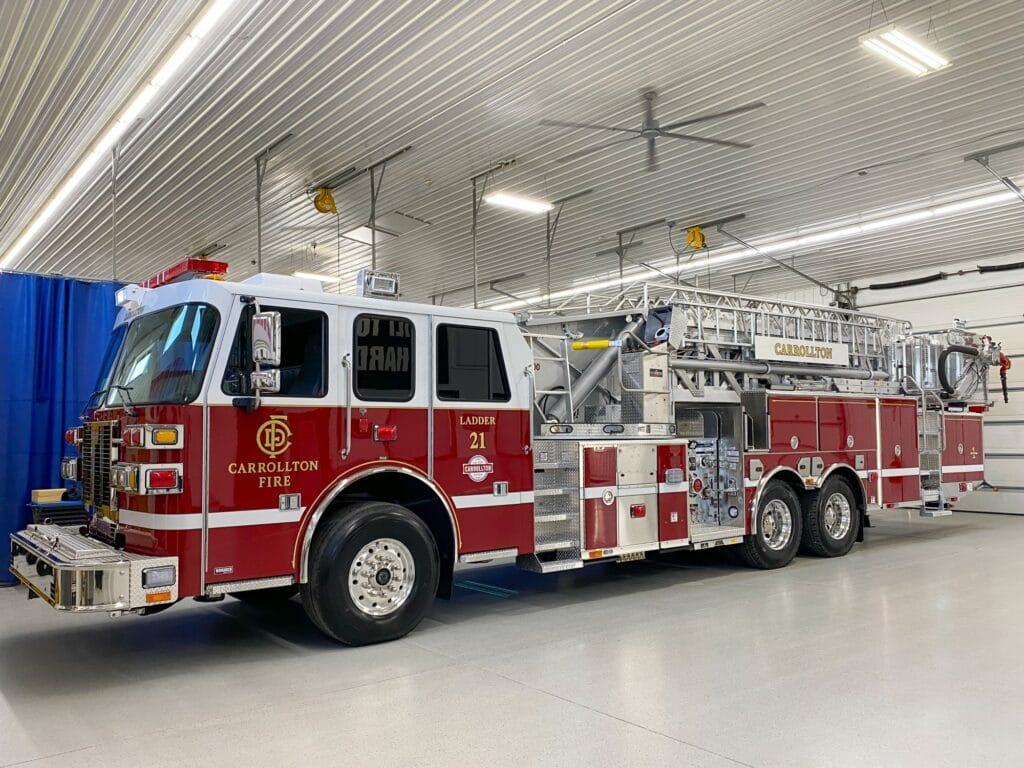

Carrollton Fire Department
Department City / State:
Carrollton, GA

Dealer – Williams Fire Apparatus

WHEELBASE: 236”

TRAVEL HEIGHT: 11’ – 6”

TRAVEL LENGTH: 47’ – 1”

CHASSIS:             Sutphen Monarch Heavy-Duty Custom Chassis, 62” Extended Cab w/ a 10” Raised Roof

  • Four-Door, Six-Person Cab
  • 10” Double Domex Frame Rails (110K PSI)
  • Front Axle and Suspension 24,000 lbs
  • Rear Axle and Suspension 52,000 lbs
  • Engine: Cummins X 15, 600HP
  • Alternator: C.E. Niehoff 415 AMP
  • Transmission: Allison Gen 5, EVS4500

PUMP:                 Hale

  • QMAX-2000 GPM, Single Stage Pump
  • Discharges: (2) 2 ½” Left, (2) 2 ½” Right, (1) 1 ½” Front Bumper
  • Crosslays: (1) 2 ½” Crosslay, 2 ½” Swivel & (2) 2” Crosslays w/ 1 ½” Swivel
  • 300-Gallon Water Tank

BODY:                  Sutphen

  • Huckbolt #304 Stainless Steel
  • Hinged Compartment Doors
  • Over 280 cu ft. Total Compartment Space
  • Duo-Safety Ladder Package: 164’: 14’ Combo; 16’; 16’; 28’ 2-Section; 35’ 2-Section, 35’ 3-Section, 10’ F & 10’F
  • Body: SPH-3, Left 56” H / Right 56” H

ADDITIONAL EQUIPMENT:

  • 18” Polished Stainless Steel, Bumper Extension
  • Intercom System: FRC ACT 2-Station
  • Hannay Electric Cord Reel, 150’ (1)
  • Generator: Smart Power 10KW HYD
  • Camera System: Voyager 2
  • Whelen Freedom IV 72” Lightbar
  • 12V Whelen Pioneer Brow Light
  • 12V Whelen Pioneer Recessed Scene Light
  • 120V FR Spectra Tripod/Tele Lights
  • 12V FireTech Aerial Spotlights

MONITOR:

  • Driver Side Monitor: Akron 3483 Stream Master2, Manual 1250 GPM
  • Driver Size Nozzle: Akron 2499 & 3488 Pipe
  • Officer Side Monitor: Akron 3483 Stream Master2, Manual 1250 GPM
  • Officer Side Nozzle: Akron 5160 Auto
