Department Name:
City of Birmingham Fire and Rescue
Department City / State:
Birmingham, AL

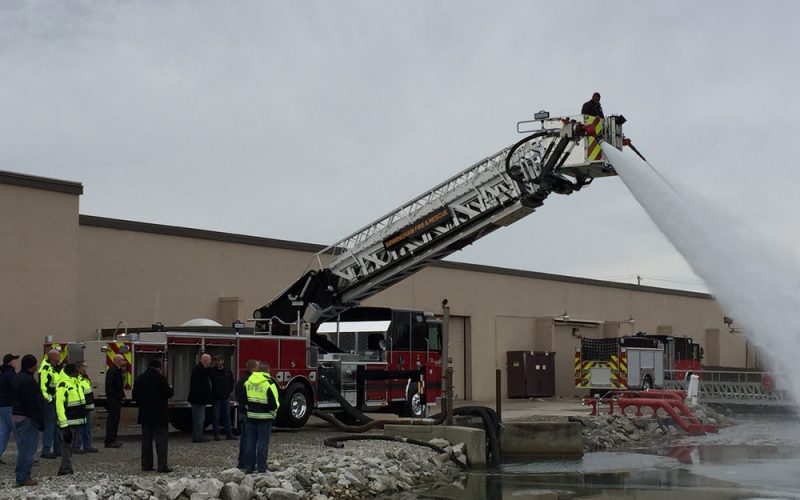

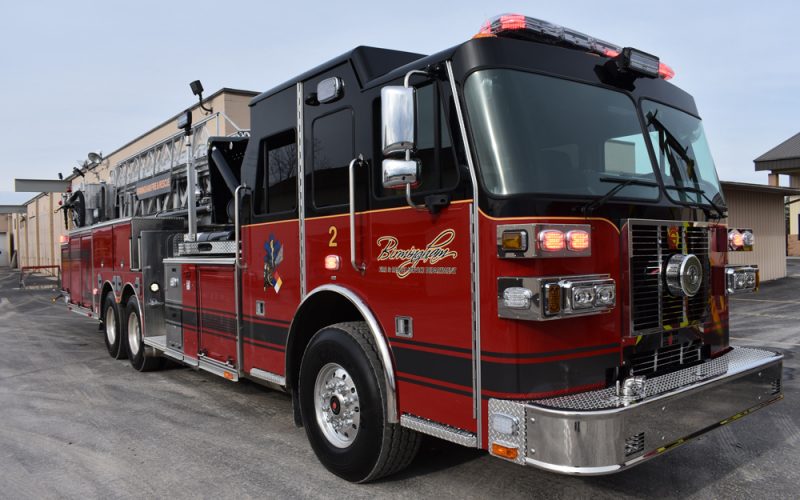

SPH 100 Aerial Platform (HS-5919)

WHEEL BASE: 236”

TRAVEL HEIGHT: 11’-6”

TRAVEL LENGTH: 46’-6 ¾”

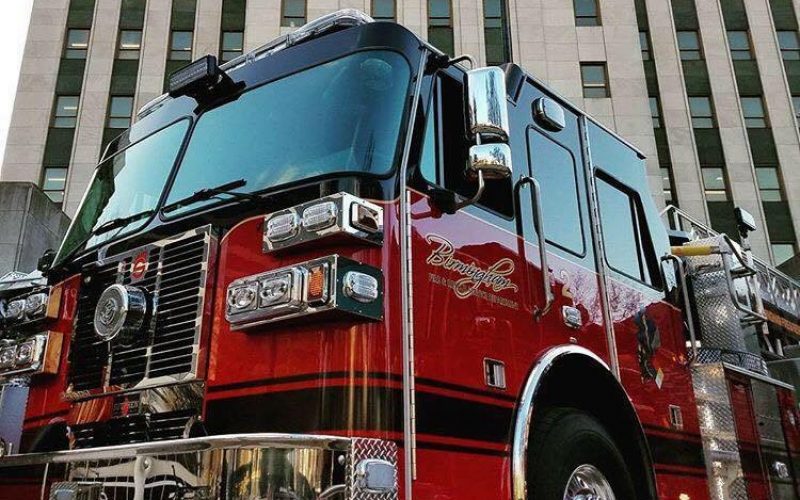

CHASSIS: Sutphen 62” cab with half 10” raised roof

  • Four-door, six-person cab
  • Front Axle and Suspension 23,000 lbs
  • Rear Axle and Suspension 52,000 lbs
  • Engine: Cummins ISX 12, 500 HP
  • Alternator: Leece Neville 320 AMP
  • Transmission: Allison Gen 5, EVS4000

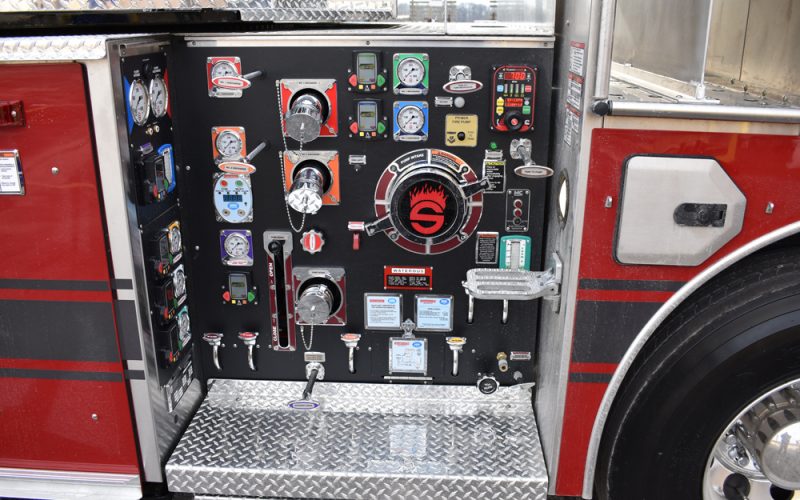

PUMP: Waterous

  • CSU-2000 GPM
  • Discharges: (2) 2 ½” Left, (1) 4” Right, (1) 2 ½” Right, (1) 1 ½” Front Bumper
  • 30-Gallon Foam Tank
  • 330-Gallon Water Tank

BODY: Sutphen

  • Stainless Steel
  • Amdor Roll-up Doors
  • 293 cu. ft. Total Compartment Space
  • SPH, Left High, Right High
  • Alco-Lite Ladder Compliment (SPH)

OPTIONAL EQUIPMENT:

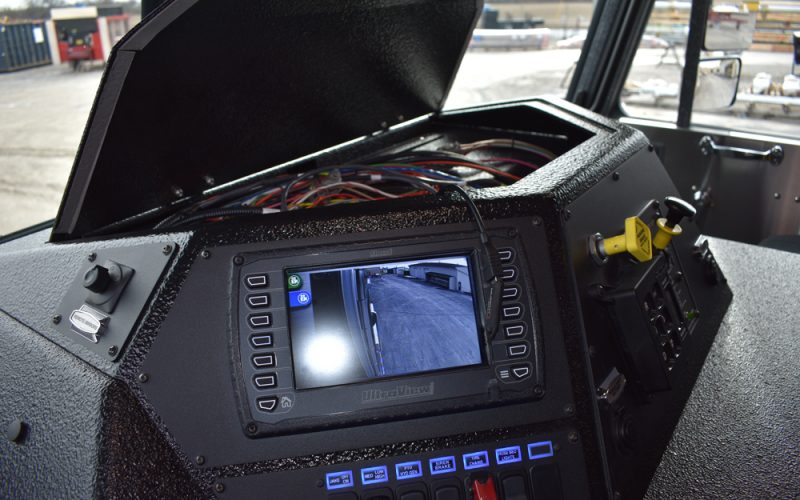

  • Camera system for VMUX
  • Parapet Ladder
  • Stokes Arms
  • Hannay Electric Cord Reel with 200’
  • Warning Lights, Whelen
  • 10 KW Harrison Generator
  • Ladder Lighting System, Rigid
  • Federal Q2B



MONITORS:

  • Driver Side Monitor: Akron 3482 Stream Master2, Electric, 1250 GPM
  • Driver Side Nozzle: Akron 5177 Electric Nozzle
  • Officer Side Monitor: Akron 3473, Gemini Manual 1000 GPM
  • Officer Side Nozzle: Akron 2499 and 3488 PIPE
