Delivery Date:
12/13/2019
Department Name:
Riverview Fire Department
Department City / State:
Riverview, MI

Sutphen Corporation – HS #6298

Dealer – Apollo Fire Equipment and Apparatus Repair

WHEEL BASE: 221”

TRAVEL HEIGHT: 10 – 9 ¼”

TRAVEL LENGTH: 43’ – 5 ¾”

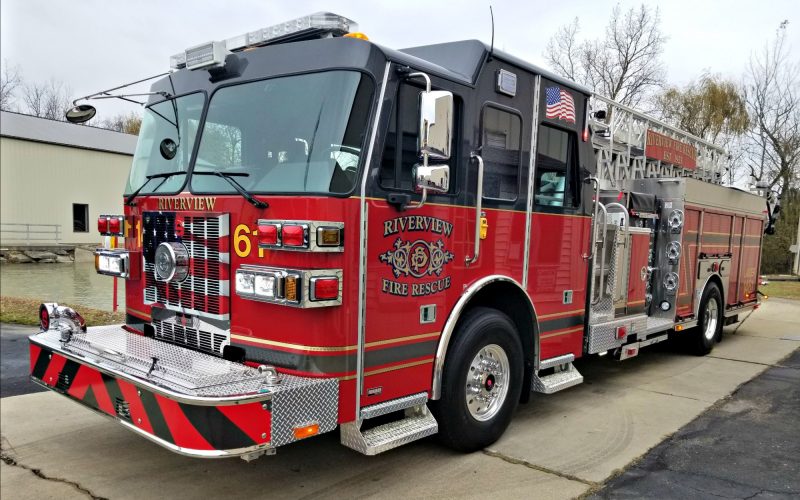

CHASSIS:             Sutphen Monarch Heavy-Duty Custom Chassis, 62” Extended Cab with a 10” Raised Roof

  • Four-Door, Six-Person Cab
  • 10” Double Frame Rails (50K PSI)
  • Front Axle and Suspension 23,000 lbs
  • Rear Axle and Suspension 31,000 lbs
  • Engine: Cummins L 9, 450 HP
  • Alternator: Leece Neville, 320 AMP
  • Transmission: Allison Gen 5, EVS 3000

PUMP:                 Hale

  • QMAX-2000 GPM, Single Stage Pump
  • Discharges: (2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (1) 2 ½” Upper Left Side, (1) 1 ½” Front Bumper
  • Monitor: TFT Monsoon RF 1,250 GPM Monitor w/ Electric Fog Nozzle and 1 TFT Monsoon 1,250 GPM Manual Monitor with Stream Shaper and Stacked Tips
  • Crosslays: (2) 2” Valve-Piping 1 ½” Swivel
  • 500-Gallon Water Tank
  • 30-Gallon Foam Tank

BODY:                  Sutphen

  • Huck Bolted #304 Stainless Steel

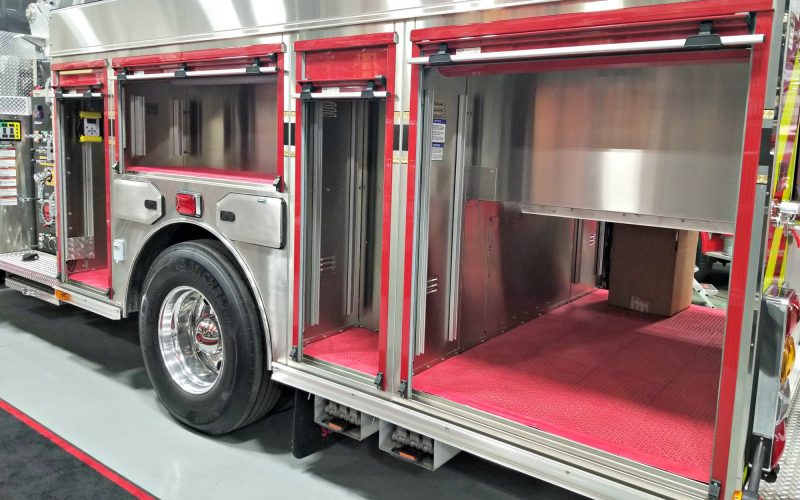

  • ROM Roll-Up Compartment Doors
  • Over 190 cu. ft. Total Compartment Space

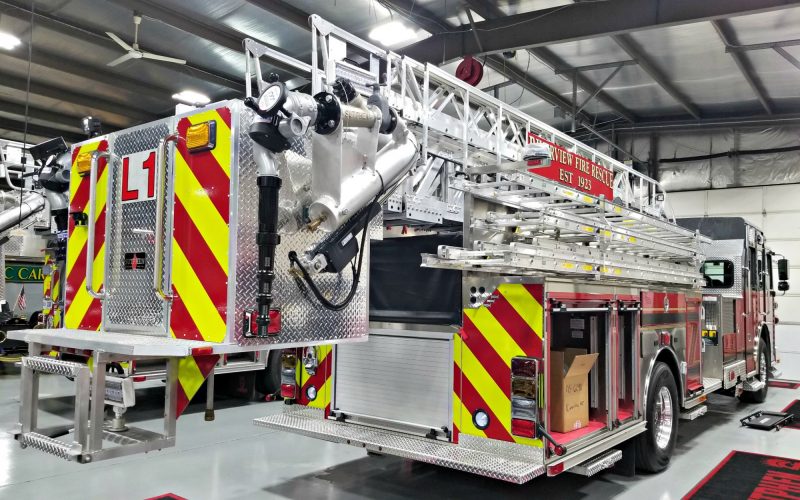

  • Alco-Lite Quint Ladder Compliment (85’: 16’ Roof, 24’ 2-Section, 35’ 3-Section & 10’ Folding)
  • Body: SAA-4 Left High / Right Intermed / Transverse

ADDITIONAL EQUIPMENT:

  • 24” Polished Stainless Steel Bumper Extension
  • FRC Inview Trueview, Camera System
  • FRC ACT 2-Station, Intercom System
  • 8KW Smart Power Generator
  • (1) Hannay Electric Cord Reel, 150’
  • (6) Pike Pole Storage Tubes
  • Federal Q2B Siren, Flush Grille Mounted
  • Whelen Freedom 4 Lightbar
  • FRC Spectra 12V LED Brow Light
  • FRC Spectra 240V LED Telescoping Scene Lights
  • FireTech LED Boom Spotlights
