Delivery Date:
07/28/2020
Department Name:
Midland Fire and Rescue
Department City / State:
Midland, NC

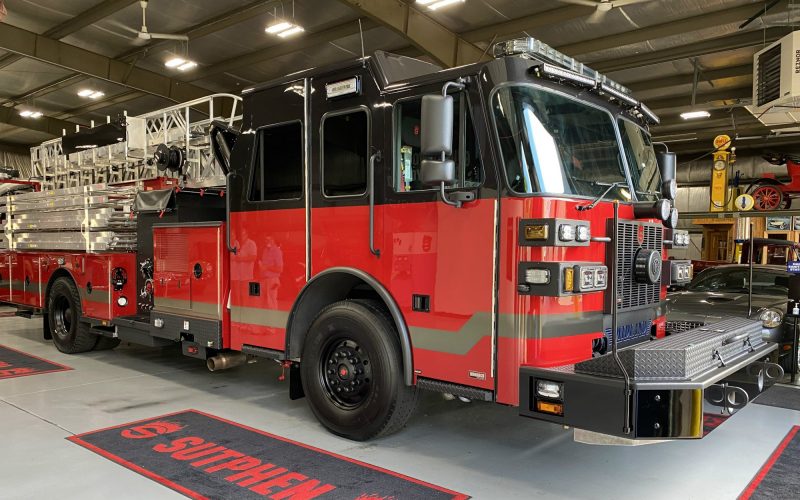

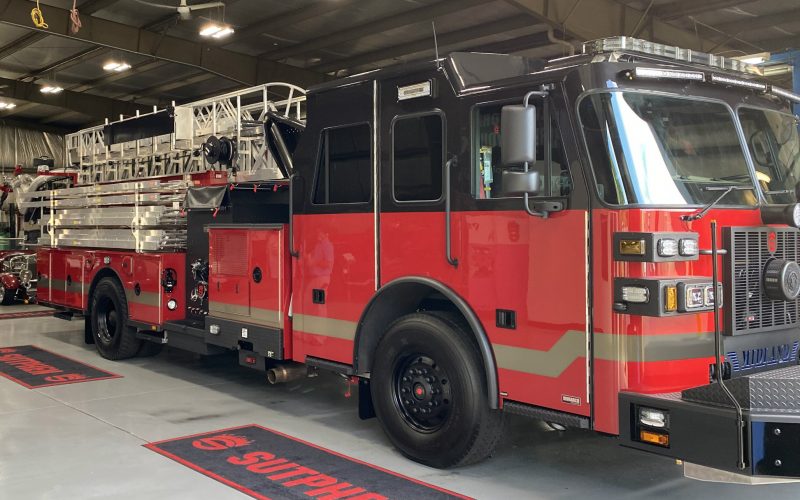

Truck Type:

Sutphen Corporation – HS #6601

Dealer – Stevens Fire Equipment

WHEELBASE: 221”

TRAVEL HEIGHT: 10’ – 9 ¼”

TRAVEL LENGTH: 43’ – 11 ¾”

CHASSIS:             Sutphen Monarch Heavy-Duty Custom Chassis, 62” Extended Cab w/ 10” Raised Roof

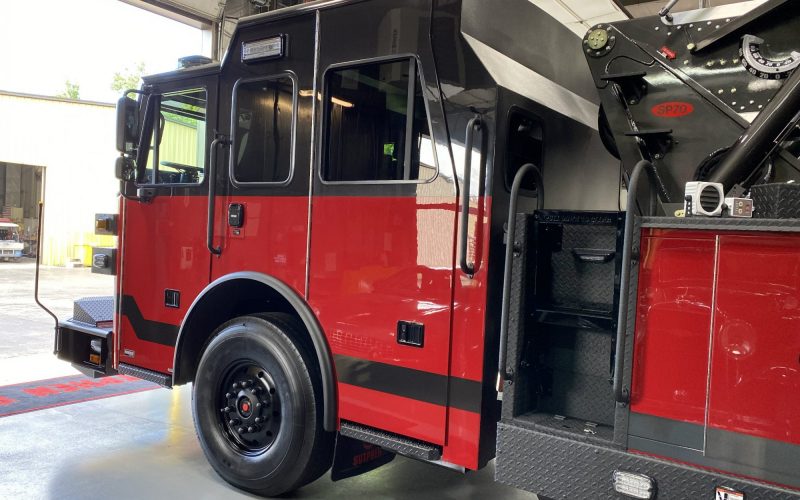

  • Four-Door, Four-Person Cab
  • 10” Double Domex Frame Rails (110K PSI)
  • Front Axle and Suspension 23,000 lbs
  • Rear Axle and Suspension 31,000 lbs
  • Engine: Cummins L 9, 450 HP
  • Alternator: Leece Neville, 320 AMP
  • Transmission: Allison Gen 5, EVS3000

PUMP:                 Hale

  • QMAX-2,000 GPM, Single Stage Pump
  • Discharges: (2) 2 ½” Left, (1) 4” Right, (1) 2 ½” Right, (1) 2 ½” Front Left, (1) 1 ½” Front Bumper
  • Crosslay: (2) 2” Valve-Piping w/ 1 ½” Swivel
  • 500-Gallon Water Tank

BODY:                  Sutphen

  • Hinged Compartment Doors
  • 01 Cu. Ft. Compartment Space
  • Duo-Safety Ladder Package ((2) 30’ 3-Section, ( 2) 16’ Roof and (2) 10’ Folding)
  • Body: SAA-1, Left High/Right Low

ADDITIONAL EQUIPMENT:

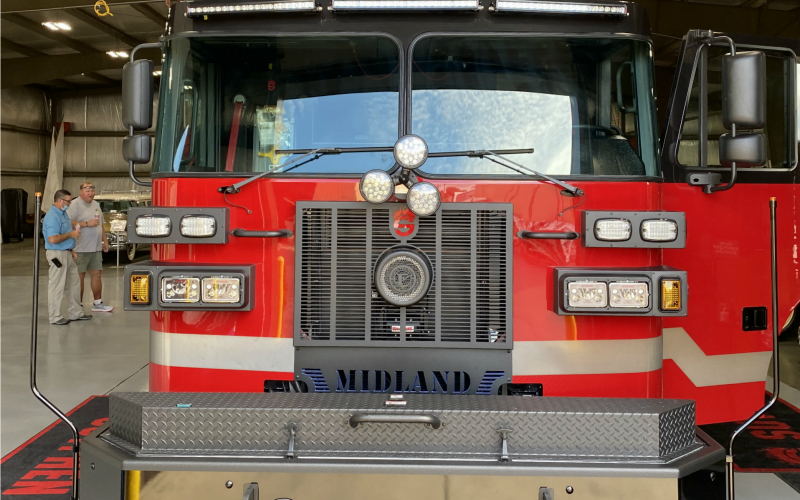

  • 30” Formed Steel Channel Bumper
  • Federal Q2B Siren, Grille Mount
  • Camera System: FRC, Inview Trueview
  • 6KW Onan Generator
  • 4 Bottle Compartments
  • HiViz 3-piece 12v LED Brow Light
  • Whelen Freedom 4 Lightbar
  • FRC Spectra 240v 20k Surface Mount Telescopic Lights
  • Firetech LED Rear Work Lights
  • Whelen L31 Beacons
  • Whelen M6V2 Warning Lights
