Delivery Date:
10/19/2019
Department Name:
Dagsboro Fire Department
Department City / State:
Dagsboro, DE

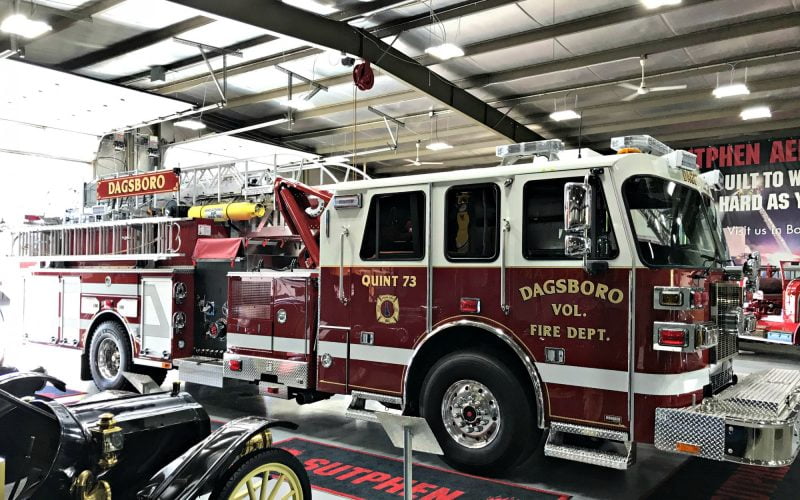

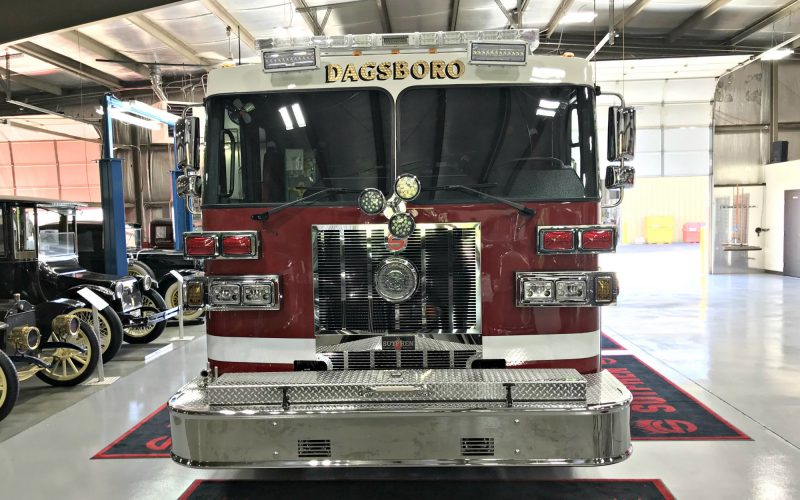

Sutphen Corporation – HS #6217

WHEEL BASE: 232”

TRAVEL HEIGHT: 10’ – 9 ¼”

TRAVEL LENGTH: 44’ – 4 ¾”

CHASSIS:             Sutphen Monarch Heavy-Duty Custom Chassis, 73” Extended Cab with a Flat Roof

  • Four-Door, Six-Person Cab
  • 10” Double Domex Frame Rails (110K PSI)
  • Front Axle and Suspension 23,000 lbs
  • Rear Axle and Suspension 31,000 lbs
  • Engine: Cummins L 9, 450 HP
  • Alternator: Leece Neville, 320 AMP
  • Transmission: Allison Gen 5, EVS3000

PUMP:                 Hale

  • QMAX-2000 GPM, Single Stage Pump
  • Discharges: (2) 2 ½” Left, (1) 4” Right, (1) 2 ½” Right, (1) 2 ½” Front/Right of Main Hosebed, (1) 3” Upper Left Side, (1) 1 ½” Front Bumper
  • Monitor: Elkhart (1) Vulcan Manual (1) TFT Y5-E11A-L Typhoon w/ Nozzles & Streamshaper
  • Crosslays: (3) 2” Crosslays w/ 1 ½” Swivel
  • 500-Gallon Water Tank
  • 30-Gallon Foam Tank
  • Hale SmartFoam, 5.0 w/ Flush

BODY:                  Sutphen

  • Huck Bolted #304 Stainless Steel
  • Amdor Roll-Up Compartment Doors
  • Over 192 cu. ft. Total Compartment Space
  • Duo-Safety Ladder Compliment (85’: 16’ R, 24’ 2-Section, 35’ 3-Section & 10’ Folding)
  • SAA-4: Left High / Right Intermed / Trans

ADDITIONAL EQUIPMENT:

  • 24” Polished Stainless Steel Bumper Extension
  • Camera System, Voyager 3, Split Screen
  • 6KW Smart Power Generator
  • Pike Pole Storage Tubes (4)
  • Federal Q2B Siren, Grille Mount
  • Hannay Electric Cord Reel, 150’ (1)
  • Whelen Freedom 4 Lightbar
  • Whelen Freedom Mini Lightbar
  • Two FR Spectra 12V LED Brow Lights
  • FRC Spectra 12V 20K LED Scene Light
  • FRC Spectra 240V LED Telescoping Scene Lights
  • FireTech LED Aerial Illumination Lights
  • FireTech LED Platform Spotlight
