Delivery Date:
04/22/2020
Department Name:
Bethesda Fire Department
Department City / State:
Bethesda, Ohio
Truck Type:

WHEELBASE: 221”

TRAVEL HEIGHT: 10’ – 9 ¼”

TRAVEL LENGTH: 42’ – 5 ½”

CHASSIS:             Sutphen Monarch Heavy-Duty Custom Chassis, 62” Extended Cab

  • Four-Door, Six-Person Cab
  • 10” Double Frame Rails (50K PSI)
  • Front Axle and Suspension 23,000 lbs
  • Rear Axle and Suspension 31,000 lbs
  • Engine: Cummins L 9, 450 HP
  • Alternator: Leece Neville, 420 AMP BLP4003
  • Transmission: Allison Gen 5, EVS3000

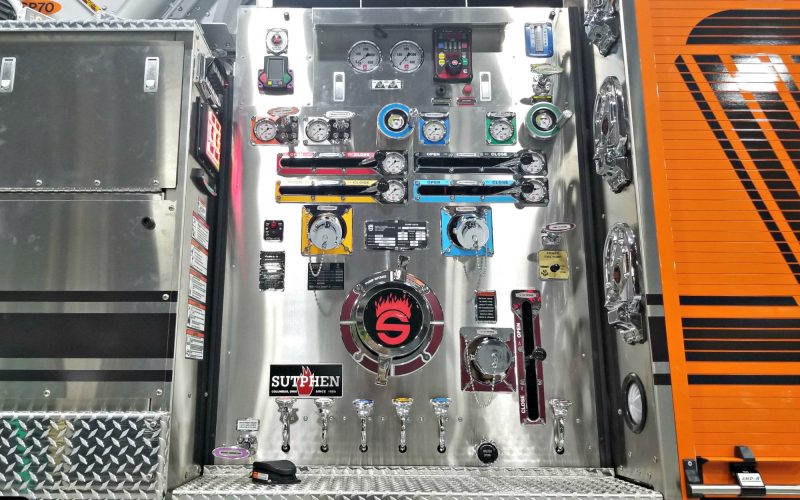

PUMP:                 Hale

  • QMAX-2000 GPM, Single Stage Pump
  • Discharges: (2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (1) 2 ½” Upper Left Side
  • Crosslay: (1) 2 ½” Crosslay, 2 ½” Swivel & (2) 2” Crosslay w/ 1 ½” Swivel
  • 500-Gallon Water Tank

BODY:                  Sutphen

  • Huck Bolted #304 Stainless Steel

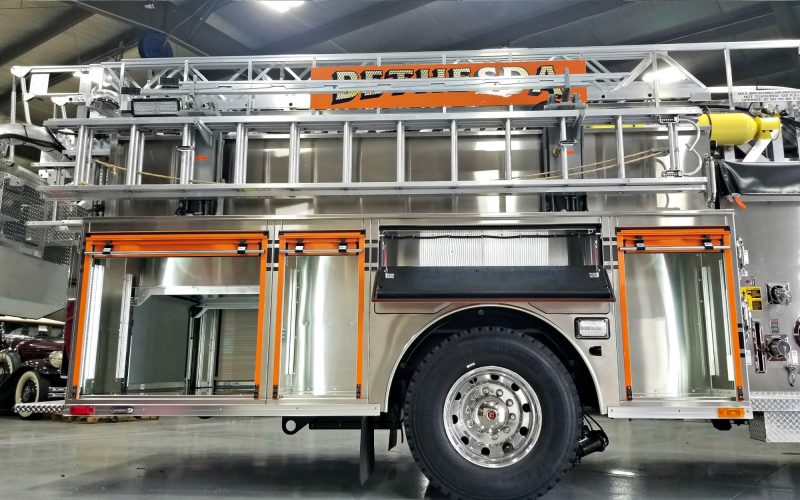

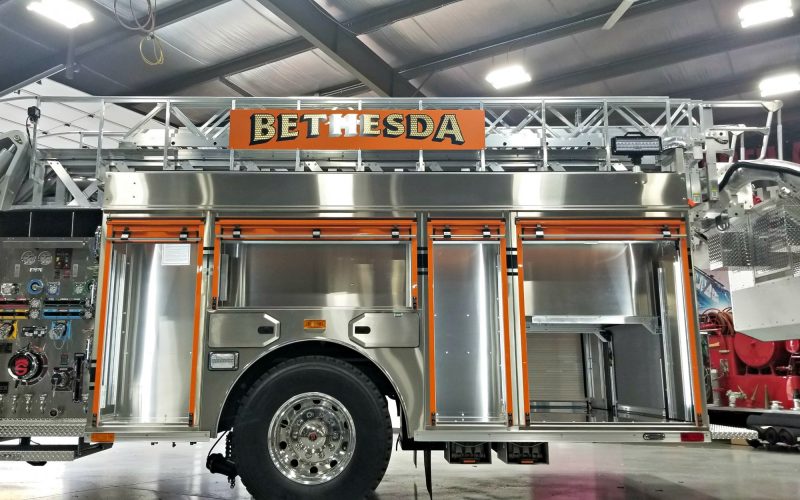

  • Amdor Roll-Up Compartment Doors
  • Over 192 cu. ft. Total Compartment Space
  • Duo-Safety Ladder Package (85’: 14’R, 16’R, 24’ 2-Section, 35’ 3-Section and 10’F)
  • Body: SAA-4 Left High/Right Intermed/Trans

ADDITIONAL EQUIPMENT:

  • 12” Polished Stainless Steel Bumper
  • Federal Q2B Siren, Grille Mount
  • Camera System: FRC, Inview Trueview, Single Camera
  • Energized Inverter 3200 WatT Remote Start Generator
  • Ziamatic Electric Ladder Rack
  • Roller on Ladder Chute
  • FRC Spectra Max 12V 28K LED Scene Light
  • FRC Spectra 12V 20K LED Scene Light
  • Firetech 12V LED Boom Spotlights
  • Whelen Freedom 4 Lightbar
