Delivery Date:
12/15/2022
Department Name:
Murfreesboro Fire Rescue
Department City / State:
Murfreesboro, TN
Truck Type:

Sutphen Corporation – HS #7024

Dealer – Southeast Fire

WHEELBASE: 232”

TRAVEL HEIGHT: 10’ – 0 ½”

TRAVEL LENGTH: 42’ – 3 ½”

CHASSIS: Sutphen Monarch Heavy-Duty Custom Chassis, 73” Extended Cab w/ 10” Raised Roof

  • Four-Door, Five-Person Cab
  • 10” Double Frame Rails (50K PSI)
  • Front Axle and Suspension 23,000 lbs
  • Rear Axle and Suspension 31,000 lbs
  • Engine: Cummins X 12 500hp
  • Alternator: Leece Neville, 320 AMP
  • Transmission: Allison Gen 5, EVS4000

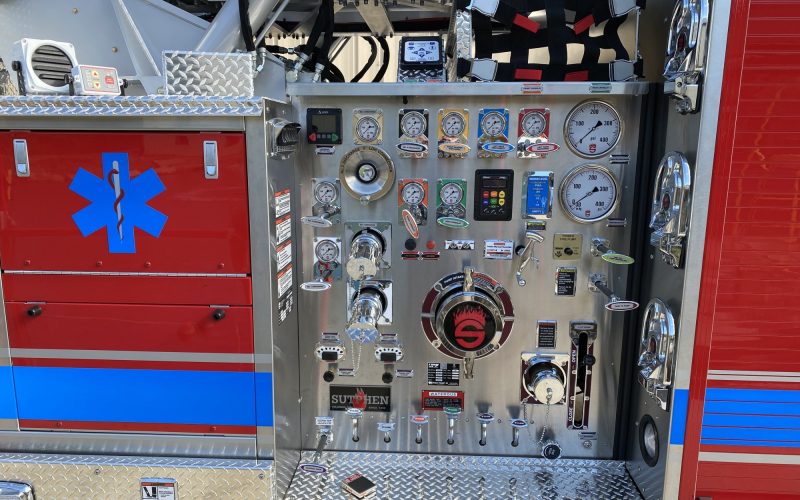

PUMP:                 Waterous

  • CSU-2000 GPM, Single Stage Pump
  • Discharges: (2) 2 ½” Left, (1) 4” Right, (1) 2 ½” Right, (1) 2 ½“ Pipe to Left of Rear, (1) 2 ½” Upper Left Side Body, (1) 2 ½” Front Bumper
  • Crosslay: (2) Crosslays 2” Valve-Piping 1 ½” Swivel
  • 500-Gallon Water Tank

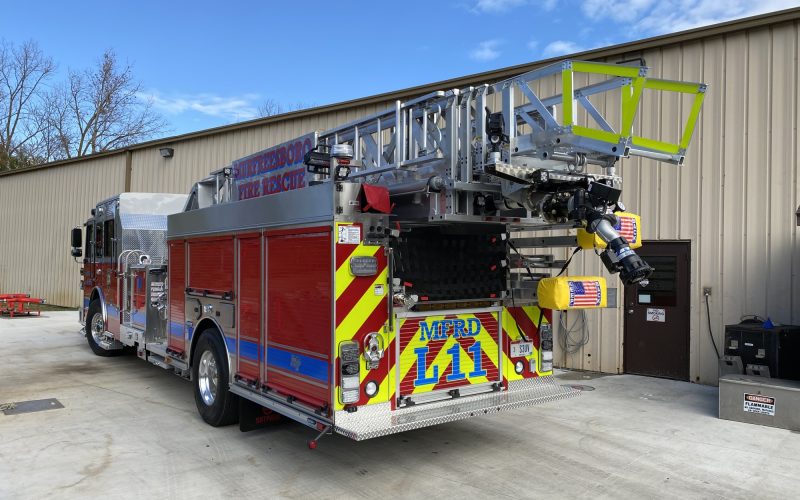

BODY:                  Sutphen

  • Rom Roll-up Compartment Doors
  • Over 162 cu. ft. Total Compartment Space

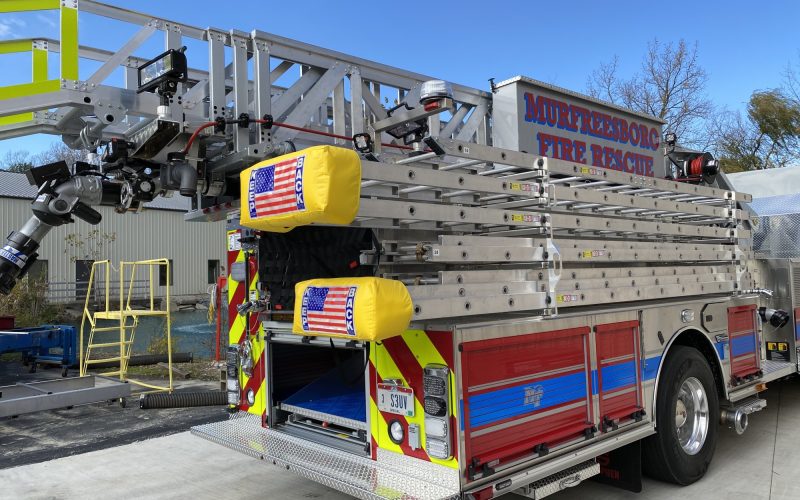

  • Duo-Safety Custom Ladder Compliment: (115’: 14’C, 16’R, 24’ 2-Section, 35’ 3-Section & 10’ F)
  • Body: SAA-3, Left High / Right Low / Trans Rear
  • Monitor: TFT Y4-E11A-P-01 Monsoon Electric w/ M-ERP-1500 Nozzle

ADDITIONAL EQUIPMENT:

  • 24” Formed Steel Bumper
  • Federal Q2B Siren, Grille Mount
  • Camera System: FRC, Inview Trueview, Two Cameras
  • Intercom System: FRC ACT 2-Station
  • Hannay Electric Cord Reel, 150’ (1)
  • Generator: Smart Power 8KW
  • Whelen Pioneer Summit 72” Lightbar
  • Whelen Freedom IV Mini Lightbars
  • Whelen 120V Scene Light
