More Recent Deliveries

Delivery Date:
11/16/2018
Department Name:
Dormont Fire Department
Department City / State:
Pittsburgh, PA

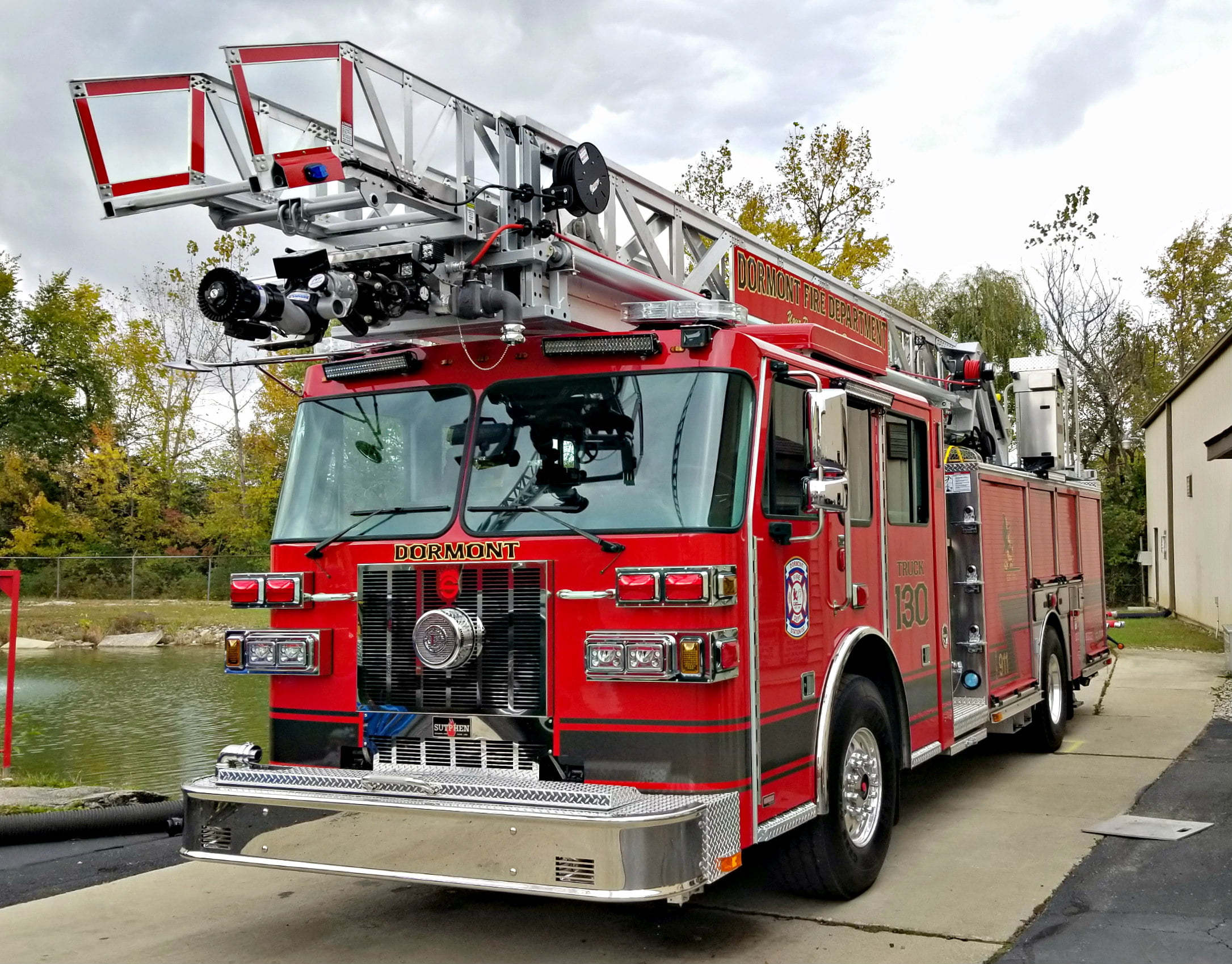

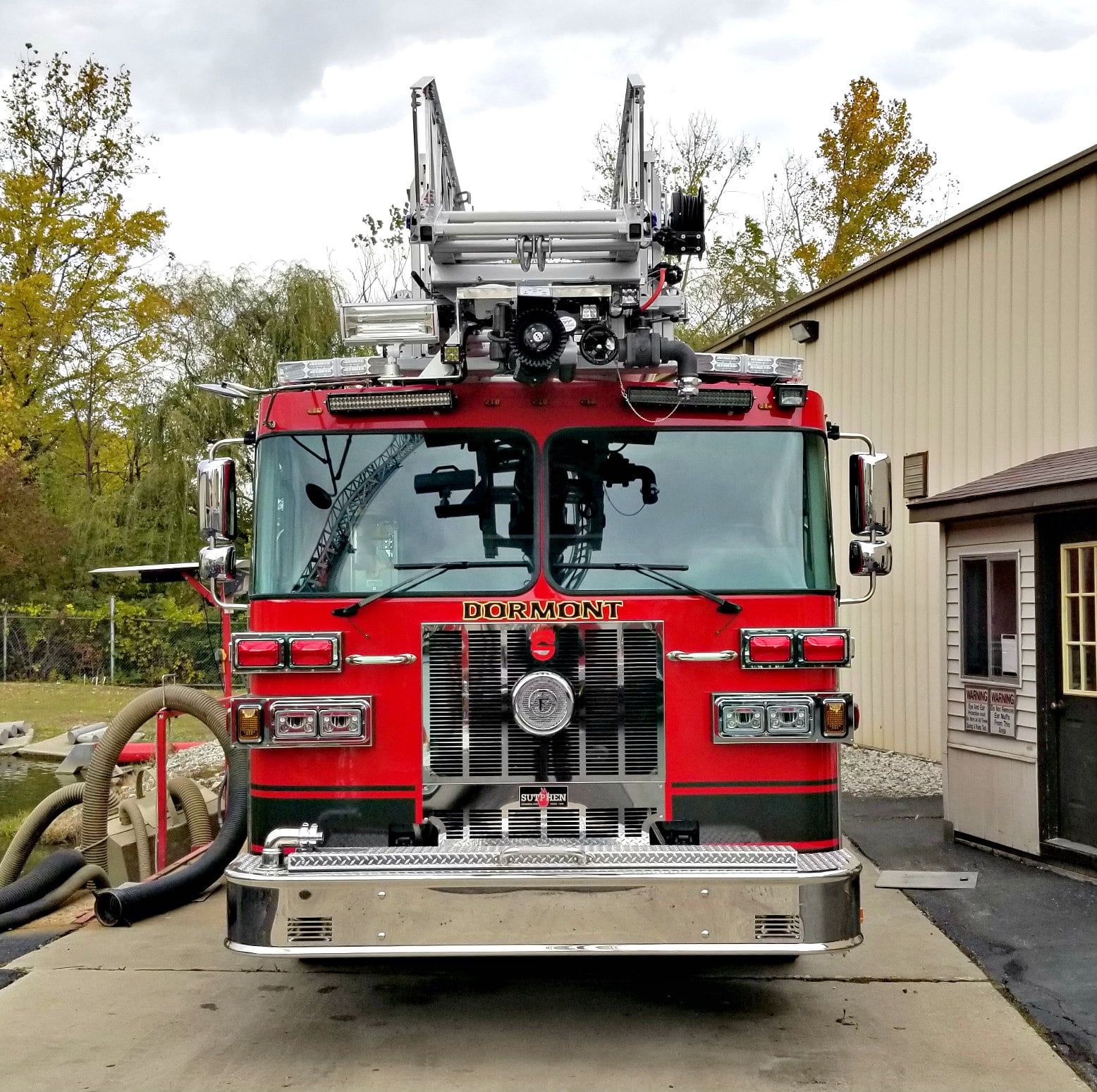

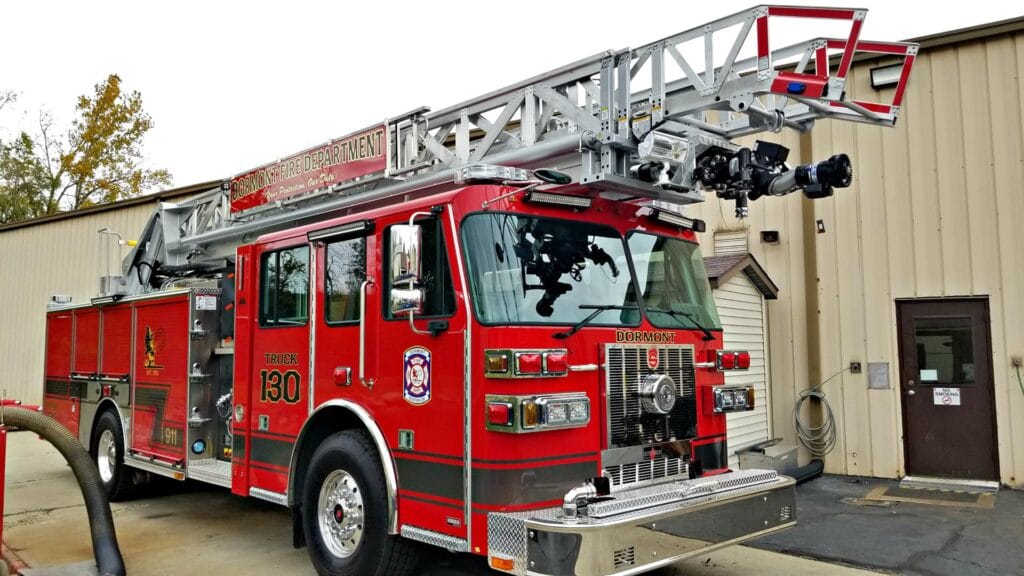

Sutphen Corporation

WHEEL BASE: 200”

TRAVEL HEIGHT: 11’-9 ½”

TRAVEL LENGTH: 37’-11”

CHASSIS:             Sutphen Monarch Heavy-Duty Custom Chassis, 56” Extended Cab with a Flat Roof

  • Four-Door, Six-Person Cab
  • 10” Double Domex Frame Rails (110K PSI)
  • Front Axle and Suspension: 23,000 lbs
  • Rear Axle and Suspension: 35,000 lbs
  • Engine: Cummins L 9, 450 HP
  • Alternator: Leece Neville, 320 AMP
  • Transmission: Allison Gen 5, EVS3000

PUMP:                 Hale

  • QMAX-2000 GPM Single Stage
  • Discharge: (2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (1) 2 ½” Front Bumper, (1) 2 ½” Auxiliary Discharge
  • Monitor: TFT Y4-E11A-P-01 Monsoon Electric with M-ERP-1500 Nozzle
  • Crosslays: (1) 2 ½”, 2 ½” Swivel and (2) 2” Crosslays with 1 ½” Swivel
  • 500-Gallon Water Tank

BODY:

  • Huck Bolted #304 Stainless Steel
  • Stainless Steel Left High/Right High
  • 31 cu. ft. Total Compartment Space
  • Alco-Lite Quint Ladder Compliment
  • ROM Roll-Up Doors
  • Ladder Chute

OPTIONAL EQUIPMENT:

  • Federal Q2B Siren
  • 6KW Smart Power Generator
  • Hannay Electric Cord Reel, 150’ (1)
  • Camera System, FRC Inview True Sight, Single Camera
  • Whelen Mini Freedom IV 21” LED Light Bars
  • Whelen M2 Flashing Blue LED Light at Ladder Tip (2)
