Delivery Date:
07/19/2017
Department Name:
Copper Mountain Fire Department
Department City / State:
Copper Mountain, CO
Truck Type:

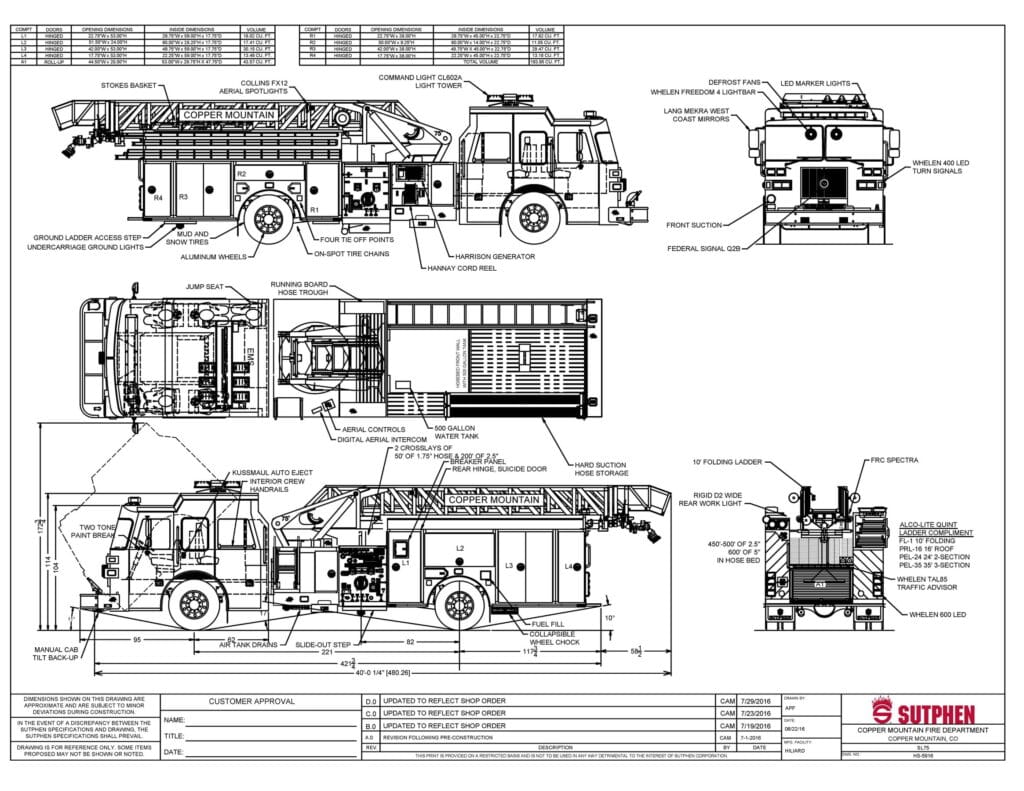

SL75 Aerial Ladder (HS-5916)

WHEEL BASE: 221”

TRAVEL HEIGHT: 114”

TRAVEL LENGTH: 40’ – 0 ¼”

CHASSIS: 62” Sutphen cab with half 10” raised roof

  • Four-door, five-person cab
  • Front Axle and Suspension 23,000 lbs
  • Rear Axle and Suspension 31,000 lbs
  • Engine: Cummins ISX 12, 500 HP
  • Alternator: Leece Neville, 320 AMP
  • Transmission: Allison Gen 5, EVS4000

PUMP: Hale

  • QMAX-1500 GPM
  • Discharges: (2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (1) 2 ½” Right Rear, (1) 1 ½” Front Bumper
  • 500-Gallon Water Tank

BODY: Sutphen

  • Stainless Steel
  • A1 Rom Roll-up Doors
  • L1 Suicide Hinged Doors
  • 95 cu. ft. Total Compartment Space
  • Alco-Lite Quint Ladder Compliment

OPTIONAL EQUIPMENT:

  • Hannay Electric Cord Reel, 200’
  • Harrison 6KW Generator
  • Federal Q2B
  • Warning Lights, Whelen
  • Traffic Advisor, Whelen
  • Command Light Tower
  • Monitor, Elkhart 7205 Cobra with SM1500E Nozzle
