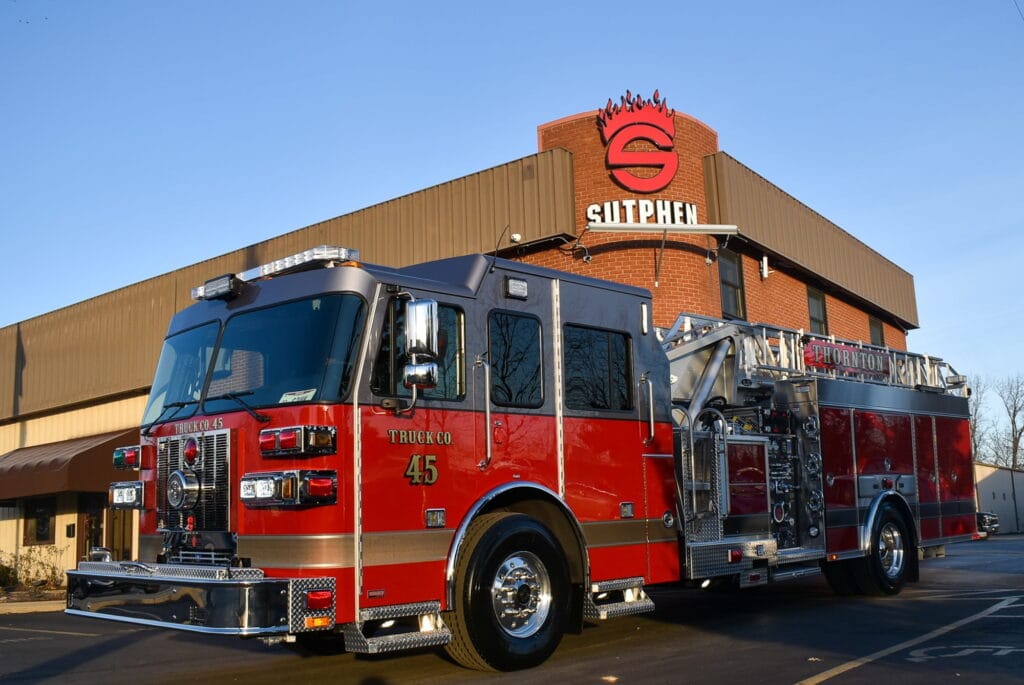

Delivery Date:
12/21/2022
Department Name:
Thornton Fire Department
Department City / State:
Thornton, IL
Truck Type:

Sutphen Corporation – HS #7193

Dealer – Legacy Fire Apparatus

WHEELBASE: 232”

TRAVEL HEIGHT: 10’ – 0 ½”

TRAVEL LENGTH: 42’ – 3”

CHASSIS:             Sutphen Monarch Heavy-Duty Custom Chassis, 73” Extended Cab with 10” Raised Roof

  • Four-Door, Four-Person Cab
  • 10” Double Frame Rails (50K PSI)
  • Front Axle and Suspension 23,000 lbs
  • Rear Axle and Suspension 31,000 lbs
  • Engine: Cummins L 9 450HP
  • Alternator: Leece Neville, 320 AMP
  • Transmission: Allison Gen 5, EVS3000

PUMP:                 Hale

  • QMAX-1500 GPM, Single Stage Pump
  • Discharges: (2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (1) 2 ½” Upper Left Side Body, (1) 2 ½” Front Bumper
  • Crosslay: (2) 2” Valve-Piping 1 ½” Swivel
  • 500-Gallon Water Tank

BODY:                  Sutphen

  • Huckbolted #304 Stainless Steel
  • Hinged Compartment Doors
  • 192 cu ft. Total Compartment Space
  • Duo-Safety Ladder Package: 16’ R, 28’ 2-Section & 10’ Folding
  • Body: SAA-4, Left High / Right Intermed / Trans

ADDITIONAL EQUIPMENT:

  • 18” Polished Stainless Steel, Bumper Extension
  • Federal Q2B Siren, Grille Mount
  • Camera System: Inview Trueview, Two Cameras
  • Intercom System: FRC ACT 2-Station
  • Ziamatic Quic-Lift Electric Ladder Rack w/ Ladder Chute
  • FRC Spectra 12V LED Brow Light
  • Opticom Installed in Lightbar
  • Whelen Freedom 4 Lightbar
  • FireTech FT-MB-2.27-FT 30.2” 12V LED Scene Light
  • FireTech 12V LED Rear Work Lights
  • FRC Spectra MS 12V 14K Scene Light

MONITOR:

  • Monitor: Elkhart 7205 Cobra EXM w/ SM1500E Nozzle
