More Recent Deliveries

Delivery Date:
01/09/2019
Department Name:

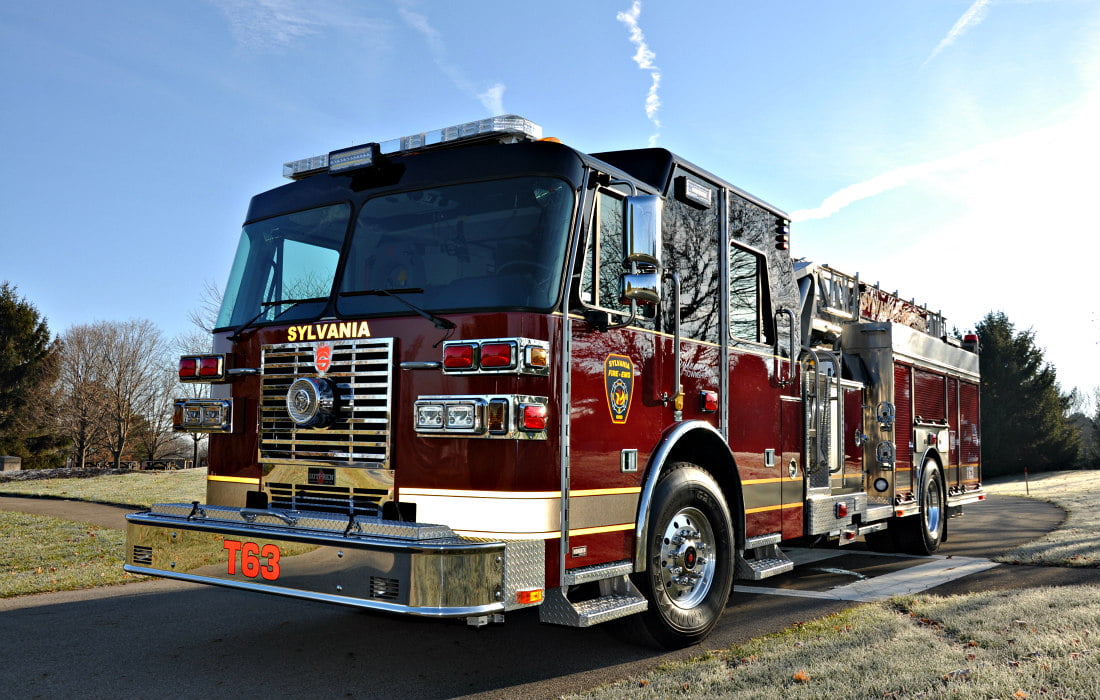

Sylvania Fire Department
Department City / State:
Sylvania, OH
Truck Type:

Sutphen Corporation – HS #6243

Dealer – Herb Fire Equipment

WHEEL BASE: 232”

TRAVEL HEIGHT: 10’-0 ½”

TRAVEL LENGTH: 41’-5 ¼”

CHASSIS:             Sutphen Monarch Heavy-Duty Custom Chassis, 73” Extended Cab with a 10” Raised Roof

  • Four-Door, Four-Person Cab
  • 10” Double Rails (50K PSI)
  • Front Axle and Suspension 23,000 lbs
  • Rear Axle and Suspension 31,000 lbs
  • Engine: Cummins L 9, 450 HP
  • Alternator: Niehoff, 360 AMP
  • Transmission: Allison Gen 5, EVS 3000

PUMP                   Hale

  • QMAX-1500 GPM Single Stage
  • Discharges: (2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (2) Pipe to Right Rear, (1) 2 ½” Upper Left Side of Body, (1) 1 ½” Front Bumper
  • Monitor: (2) Elkhart 7250 Cobra EXM w/ SM 1500 E Nozzle
  • Crosslays: (2) 2” Valve-Piping 1 ½” Swivel
  • 500-Gallon Water Tank

BODY:                  Sutphen

  • HuckBolted #304 Stainless Steel
  • Amdor Roll-Up Compartment Doors
  • Over 192 cu. ft. Total Compartment Space
  • Alco-Lite Quint Ladder Compliment
  • Left High/Right Intermed/Trans

OPTIONAL EQUIPMENT

  • 18” Bumper Extension
  • VMUX Camera System
  • Federal Q2B
  • 10KW Smart Power Generator
  • FireTech 30” Scene Light Bar
  • Hannay Electric Cord Reel, 200’ (1)
  • Pike Pole Storage Tubes (4)
  • Whelen Freedom 4 Lightbar
  • FRC Spectra 12V LED Brow Light
  • Ziamatic Electric Ladder Rack
