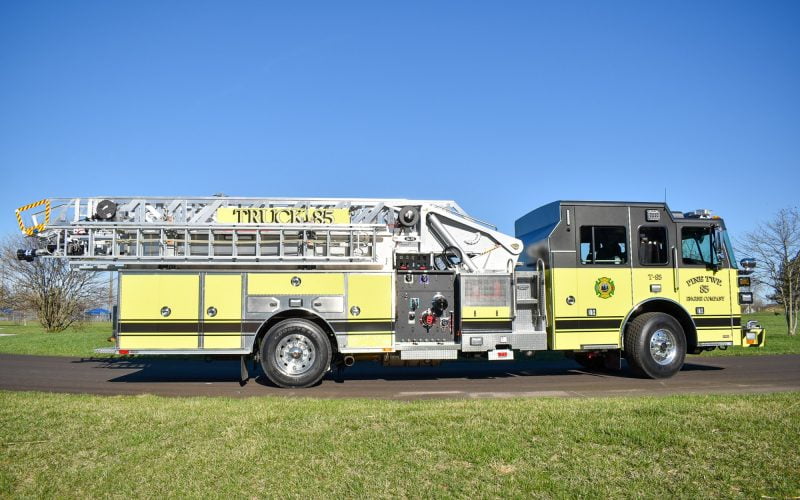

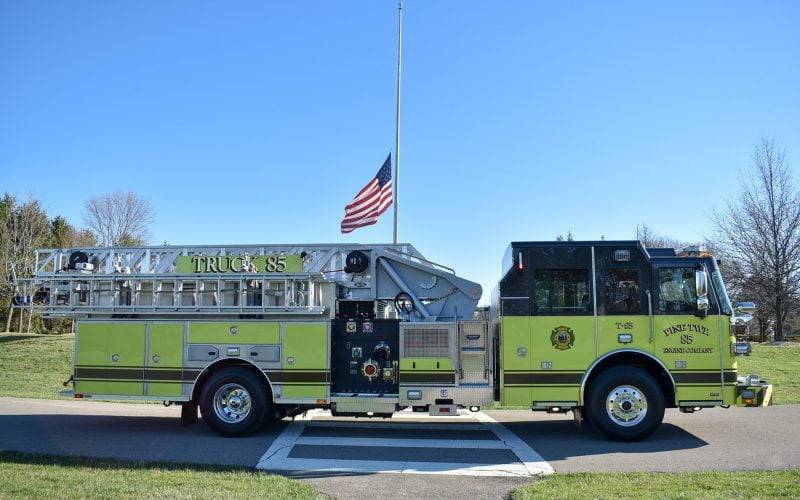

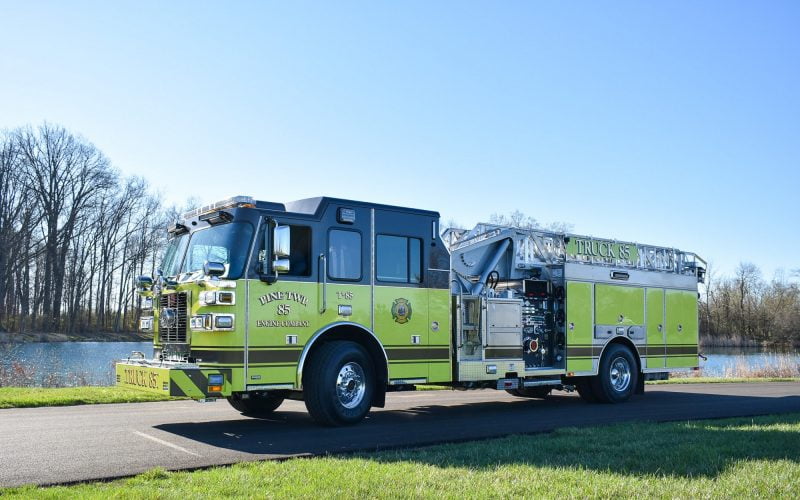

Delivery Date:
03/15/2021
Department Name:
Pine Township Engine Company
Department City / State:
Grove City, PA
Truck Type:

Sutphen Corporation – HS #6894

Dealer – F.A.S.T. of the Allegheny Mountains

WHEELBASE: 232”

TRAVEL HEIGHT: 10’ – 0 ½”

TRAVEL LENGTH: 42’ – 3 ¼”

CHASSIS:             Sutphen Monarch Heavy-Duty Custom Chassis, 73” Cab w/ 10” Raised Roof

  • Four-Door, Six-Person Cab
  • 10” Double Frame Rails (50K PSI)
  • Front Axle and Suspension 23,000 lbs
  • Rear Axle and Suspension 31,000 lbs
  • Engine: Cummins X 12 500HP
  • Alternator: Leece Neville, 420 AMP
  • Transmission: Allison GEN 5 EVS4000

PUMP:                 Hale

  • QMAX-2000 GPM 6” Suction, Single Stage Pump
  • Discharges: (2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (2) 2 ½” Upper Left Side Body, (1) 2 ½” to Front Bumper, (1) 2 ½” Tip of Ladder
  • Crosslay: (2) 2” Crosslays
  • 500-Gallon Water Tank

BODY:                  Sutphen

  • Mix of Roll-Up and Hinged Compartment Doors
  • Over 192 cu. ft. Total Compartment Space
  • Ladder Package: Alco-Lite Quint (85’ 16R’, 24’ – 2 Sec, 35’ – 3 Sec, & 10’ F)
  • Body: SAA-4, Left High / Right Intermed / Trans

ADDITIONAL EQUIPMENT:

  • 18” Painted Formed Steel Channel Bumper
  • Federal Q2B Siren, Grille Mount
  • Camera System: FRC Inview 360 HD
  • Generator: Harrison, 6KW
  • Intercom System: FRC ACT 2-Station
  • Hannay Electric Cord Reel, 150’ (1)
  • Whelen Freedom 4 Lightbar
  • Firetech 12V LED Brow Lights
  • Firetech 12V Guardian Elite Scene Lights
  • Mars 888 Lights
  • FRC Optimum 240V 1,500 Watt Scene Light

MONITOR:

  • TFT Y5-E11A-L Typhoon Elec W/M-Erp-1500 Nozzle
