Delivery Date:
08/11/2025
Department Name:
Covington Fire & Rescue
Department City / State:
Covington, OH
Truck Type:

Dealer – Heritage Fire Equipment

WHEELBASE: 232”

TRAVEL HEIGHT: 10’ – 1”

TRAVEL LENGTH: 42’ – 10”

CHASSIS:           Sutphen Monarch Heavy-Duty Custom Chassis, 73” Extended Cab w/ a 10-Inch Raised Roof

  • Four-Door, Eight-Person Cab
  • 10” Double Domex Frame Rails (110K PSI)
  • Front Axle and Suspension 23,000 lbs w/ (4) 56” Leafs
  • Rear Axle and Suspension 35,000 lbs
  • Engine: Cummins L 9, 450 HP
  • Alternator: Leece Neville, 420 AMP
  • Transmission: Allison Gen 6, EVS3000

PUMP:                 Waterous

  • CSU-1500 GPM, Single Stage Pump
  • Discharges: (2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (1) 2 ½” Upper Right Side Body, (1) 1 ½” Front Bumper, 2” Plumbing, (1) 2 ½” Auxiliary Waterway
  • Crosslays: (2) 2” Crosslays 2” Valve-Piping 1 ½” Swivel
  • 500-Gallon Water Tank

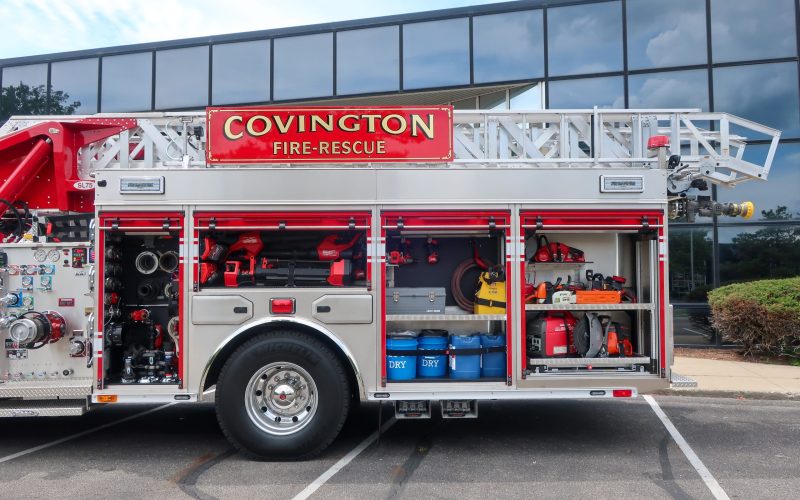

BODY:                 Sutphen

  • Huckbolt #304 Stainless Steel
  • Mixed AMDOR Roll Up and Hinged Compartment Doors
  • Over 230 cu. ft. Total Compartment Space
  • Duo-Safety Ladder Package 83’: 14’ Roof, 24’ 2-Section, 35’ 3-Section & 10’ Folding
  • Body: SAA-6 Left High / Right High Split / Ext Trans

ADDITIONAL EQUIPMENT:

  • 24” Polished Stainless Steel Bumper
  • Federal Q2B Siren, Grille Mount
  • Camera System: FRC, Inview Trueview 360HD w/ Built-In DVR
  • Intercom System: FRC, ACT 2-Station
  • Roto-Ray LED Warning Light
  • FireTech 3-Piece 12V LED Brow Lights
  • Whelen Freedom 4 Lightbar
  • FireTech Laser Cannon Jack Spotting Lights
  • FRC Spectra Scene Lights
  • FireTech 12V LED Rear Work Lights

MONITOR:

  • Elkhart 7200X2 Cobra EXM2 w/ SM1500E Nozzle
