Delivery Date:
05/16/2022
Department Name:
Cicero Fire Department
Department City / State:
Cicero, NY
Truck Type:
Sutphen Corporation – HS #7121
Dealer – Vander Molen Fire Apparatus Sales and Service
WHEELBASE: 232”
TRAVEL HEIGHT: 10’ – 0 ½”
TRAVEL LENGTH: 42’ – 9”
CHASSIS: Sutphen Monarch Heavy-Duty Custom Chassis, 73” Extended Cab w/ 10” Raised Roof
- Four-Door, Five-Person Cab
- 10” Double Domex Frame Rails (110K PSI)
- Front Axle and Suspension 23,000 lbs
- Rear Axle and Suspension 31,000 lbs
- Engine: Cummins L 9 450hp
- Alternator: Leece Neville, 320 AMP
- Transmission: Allison Gen 5, EVS3000

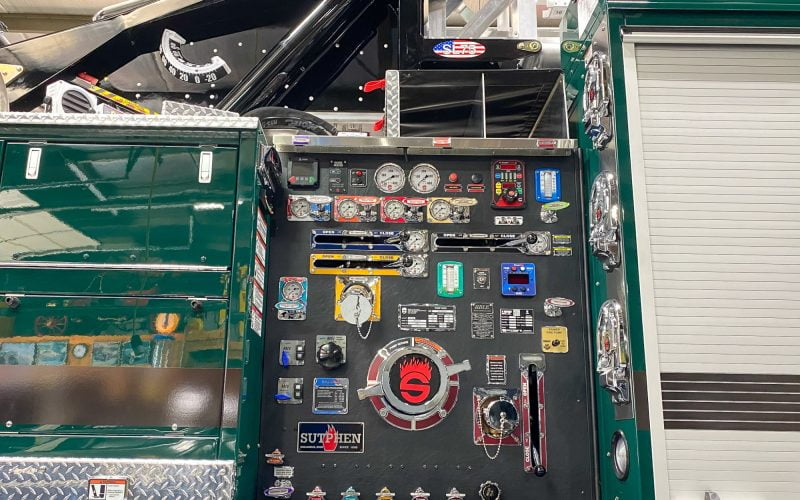

PUMP: Hale
- QMAX-2000 GPM, Single Stage Pump
- Discharges: (1) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (1) 2 ½” Upper Left Side Body, (2) 1 ½” Front Bumper
- Crosslay: (2) 2 ½” Crosslays, 2 ½” Swivel & (2) 2” Crosslay w/ 1 ½” Swivel
- 500-Gallon Water Tank
- 25-Gallon Foam Tank
- Foam System: FoamPro 2002, 5.0 GPM

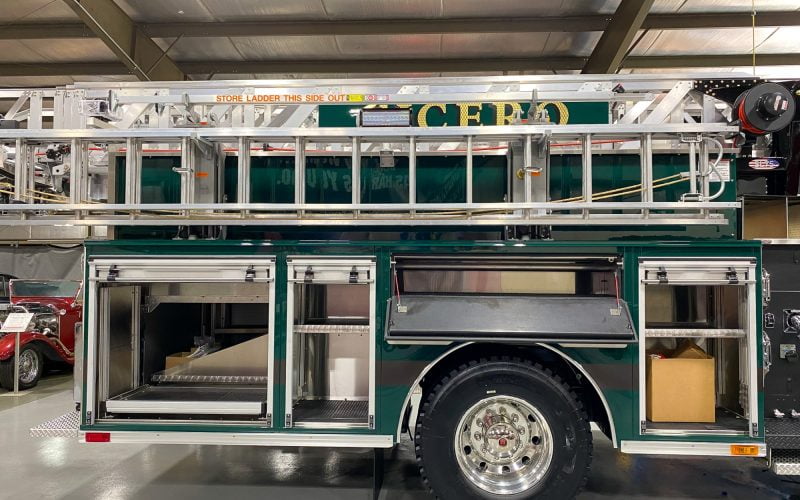

BODY: Sutphen
- Amdor Roll-up Compartment Doors
- Over 192 cu. ft. Total Compartment Space
- Duo-Safety Ladder Compliment: (14’-DR, 16’-DR, 16’-DR, 24’ 2-Section, 28’ 2-Section & 10’ F)
- Body: SAA-4, Left High / Right Intermed / Trans
- Monitor: TFT Y5-E11A-L Typhoon Elec w/ M-ERP-1500 Nozzle
ADDITIONAL EQUIPMENT:
- 24” Formed Steel Channel Bumper Extension
- Federal Q2B Siren, Grille Mount
- Camera System: FRC, Inview Trueview, Single Camera
- Intercom System: FRC ACT 2-Station
- Generator: 10KW Harrison
- Hannay Electric Cord Reel, 150’ (1)
- Whelen Freedom 4 Lightbar
- Whelen M9 Scene Light
- FRC Spectra Scene Light
