Delivery Date:
10/17/2017
Department Name:
Columbia Fire Department
Department City / State:
Columbia, MO

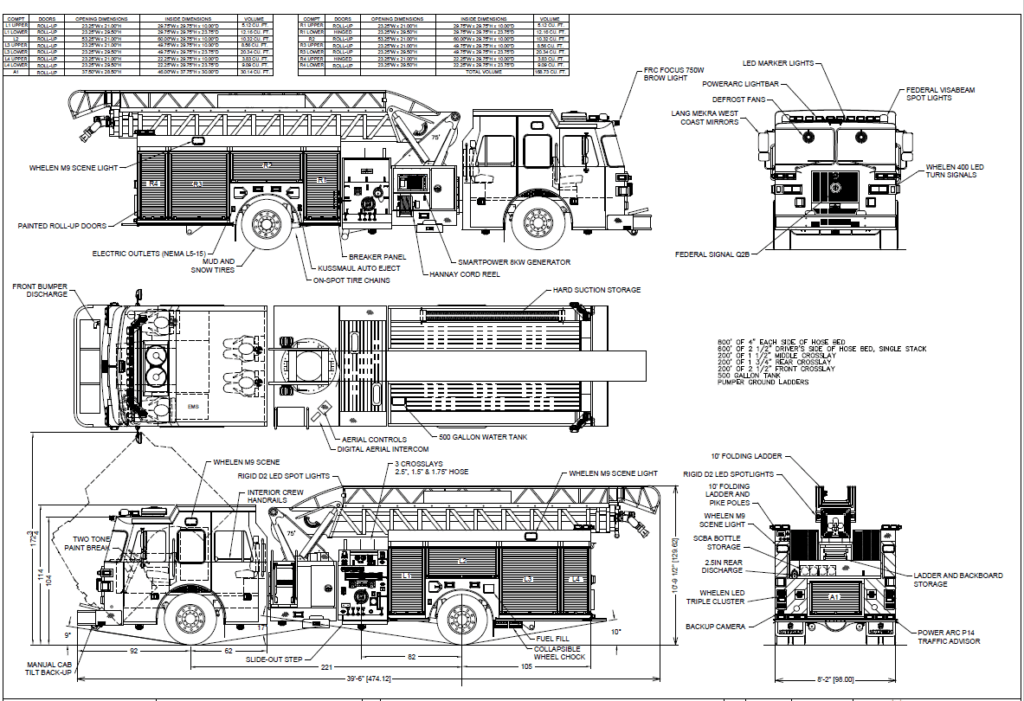

Truck Type:

WHEEL BASE: 221”

TRAVEL HEIGHT: 10’-9”

TRAVEL LENGTH: 39’-6”

CHASSIS:              Sutphen 62” extended cab with half 10” raised roof

  • Four-Door, Four-Person Cab
  • Front Axle and Suspension 23,000 lbs
  • Rear Axle and Suspension 31,000 lbs
  • Engine: Cummins ISX 12, 500HP
  • Alternator: Leece Neville, 320 AMP
  • Transmission: Allison Gen 5, EVS4000

PUMP:                  Hale

  • QMAX-2000 GPM
  • Discharge: (2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (1) 2 ½” Left Rear, (1) 1 ½” Front Bumper
  • 500-Gallon Water Tank

BODY:                   Sutphen

  • Stainless Steel
  • Rom Roll-Up Compartment Doors
  • 73 cu. ft. Total Compartment Space



OPTIONAL EQUIPMENT:

  • Duo-Safety 10’ Folding Attic Ladder
  • Monitor: Elkhart 7205 Cobra EXM w/ SM1500E Nozzle
  • Intercom System, FRC ACT 2-Station
  • Ziamatic SAC-44 Folding Wheel Chocks
  • 8KW Smart Power Generator
  • Hannay Electric Cord Reel, 200’
  • Traffic Advisor, PowerArc PSK-6Y
  • Scene Lights, Whelen
  • Federal Q2B
  • 24” Bumper
