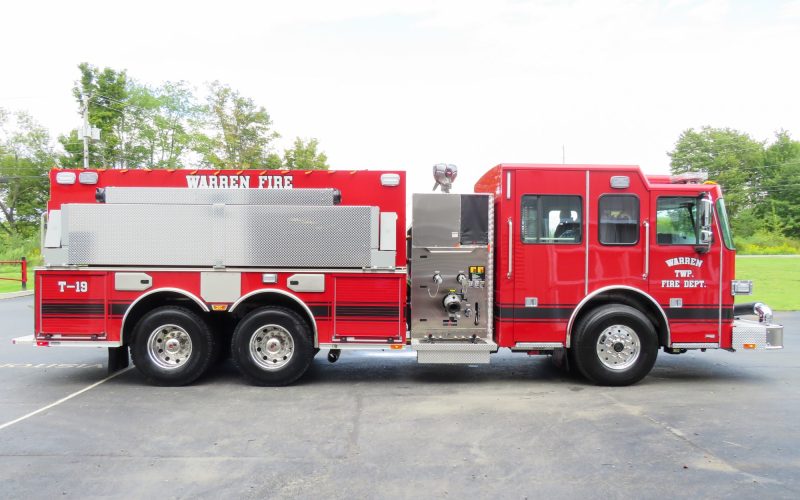

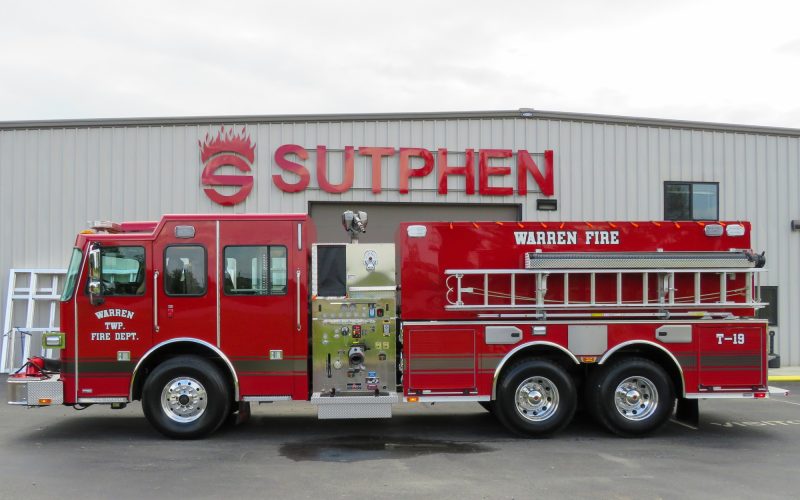

Delivery Date:
11/08/2023
Department Name:
Warren Township Fire Department
Department City / State:
South Bend, IN
Truck Type:
Dealer – Herb Fire
WHEELBASE: 206”
TRAVEL HEIGHT: 9’ – 11”
TRAVEL LENGTH: 34′ – 2”
CHASSIS: Sutphen Monarch Heavy-Duty Custom Chassis, 62” cab with 10” Raised Roof
- Four-Door, Four-Person Cab
- 10” Double Domex Frame Rails (110K PSI)
- Front Axle and Suspension: 23,000 lbs.
- Rear Axle and Suspension: 48,000 lbs.
- Engine: Cummins L 9, 450 HP
- Alternator: Leece Neville 320 AMP
- Transmission: Allison Gen 5, EVS3000
PUMP: Waterous
- CSU-1500 GPM, Single Stage Pump
- Discharge: (1) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (1) 2 ½” Left Rear, (1) 1 ½” Front Bumper, (1) 3” Deck Gun
- Crosslay: (2) 2” w/ (1) 1 ½” Swivel
- 2,500-Gallon Water Tank
- 20-Gallon Foam Tank
BODY: Sutphen
- HuckBolted #304 Stainless Steel
- ROM Roll-Up Compartment Doors
- 76 cu. ft. Total Compartment Space
- Alco-Lite Ladder Package: 24’ 2-Section & 14’ Roof & 10’ Folding
- Body: SWT-04A STS Wet Side Tanker Tandem, Pump Module
ADDITIONAL EQUIPMENT:
- 24” Polished Stainless Steel, Bumper Extension
- Federal Q2B Siren, Grille Mount
- Camera System: FRC, Inview Trueview, Single Camera
- Portable Tank: Zico Elec/HYD Rack
- Whelen 72” Freedom Lightbar
- FR Spectra Brow Light
- Whelen M9 Scene Lights
- Whelen 36” Traffic Advisor
