Delivery Date:
06/02/2025
Department Name:

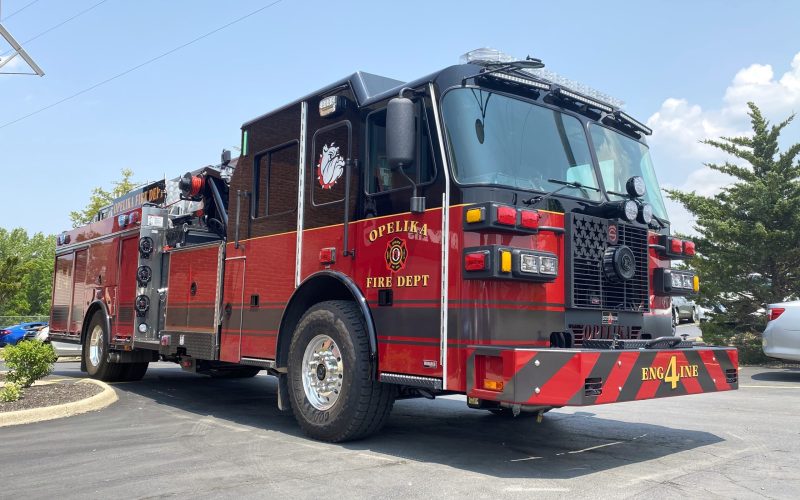

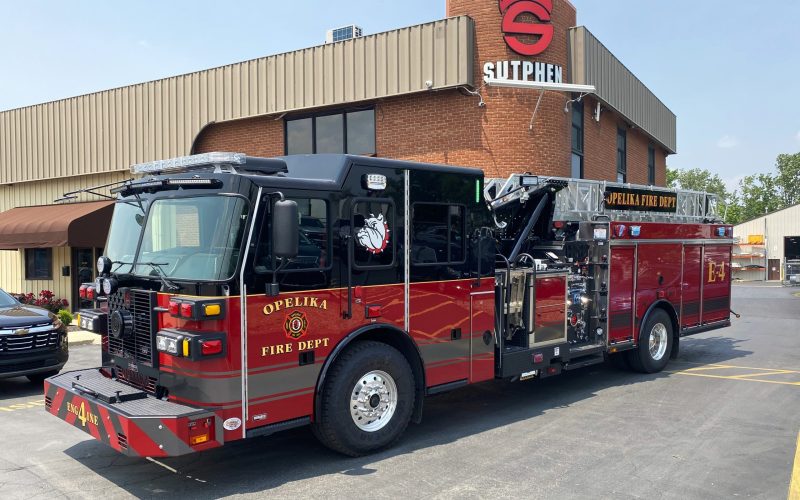

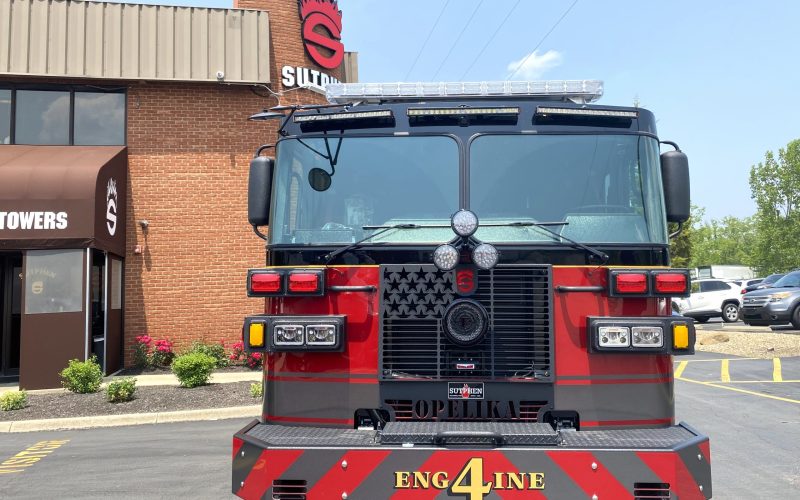

Opelika Fire Department
Department City / State:
Opelika, AL
Truck Type:

Dealer – Williams Fire Apparatus

WHEELBASE: 232”

TRAVEL HEIGHT: 10’ – 1”

TRAVEL LENGTH:  42’ – 3”

CHASSIS:    Sutphen Monarch Heavy-Duty Custom Chassis, 73” Extended Cab w/ 10” Raised Roof

  • Four-Door, Five-Person Cab
  • 10” Double Domex Frame Rails (110K PSI)
  • Front Axle and Suspension 23,000 lbs w/ (4) 56” Leafs
  • Rear Axle and Suspension 31,000 lbs
  • Engine: Cummins X 12, 525 HP
  • Alternator: Leece Neville 420 AMP
  • Transmission: Allison Gen 6, EVS4000

PUMP:                 Hale

  • QMAX-2000 GPM, Single Stage Pump
  • Discharges: (2) 2 ½” Left, (1) 4” Right, (1) 2 ½” Right, (1) 2 ½” Upper Left Side Body, (1) 2 ½” Upper Right Side Body, (1) 1 ½” Front Bumper, 2” Plumbing, (1) 2 ½” Auxiliary Waterway
  • Crosslays: (2) 2” Valve-Piping 1 ½” Swivel
  • 500-Gallon Water Tank
  • 30-Gallon Foam Tank
  • Foam System: Hale Smartfoam 3.3

BODY:                 Sutphen

  • Huckbolted #304 Stainless Steel
  • Mixed AMDOR Roll-Up and Hinged Compartment Doors
  • Over 220 cu ft. Total Compartment Space
  • Duo-Safety Ladder Package: 24’ 2-Section, 16’ Roof, 14’ Roof, 10’ Folding & 10’ Folding
  • Body: SAA-Custom, Left High / Right High Split Depth / Trans / 6” Extension

ADDITIONAL EQUIPMENT:

  • 18” Formed Steel Bumper
  • Camera System: FRC, Inview 360HD w/ Built-In DVR
  • Intercom System: FRC Act 2-Station
  • Federal Q2B, Grille Mount
  • Roto-Ray LED Warning Light
  • Hiviz 3-Piece 12V LED Brow Light
  • Whelen Freedom 4 72” Lightbar
  • FRC Spectra 12V 20K LED Scene Light
  • FireTech 12V LED Boom Spotlights
  • Whelen M9 LED Warning Lights

MONITOR:

  • TFT Y5-E11A-L Typhoon Elec W/M-ERP-1500 Nozzle
