Delivery Date:
07/20/2018
Department Name:
Baugo Township Fire Department
Department City / State:
Baugo Twp, IN

WHEEL BASE: 219”

TRAVEL HEIGHT: 10’ 5”

TRAVEL LENGTH: 35’ 11”

CHASSIS:              Sutphen 62” Cab with 10” half raised roof

  • Four-Door, Six-Person Cab
  • Front Axle and Suspension: 23,000 Lbs.
  • Rear Axle and Suspension: 48,000 Lbs.
  • Engine: Cummins ISX 12 500HP
  • Alternator: Leece Neville 320 AMP
  • Transmission: Allison Gen 5

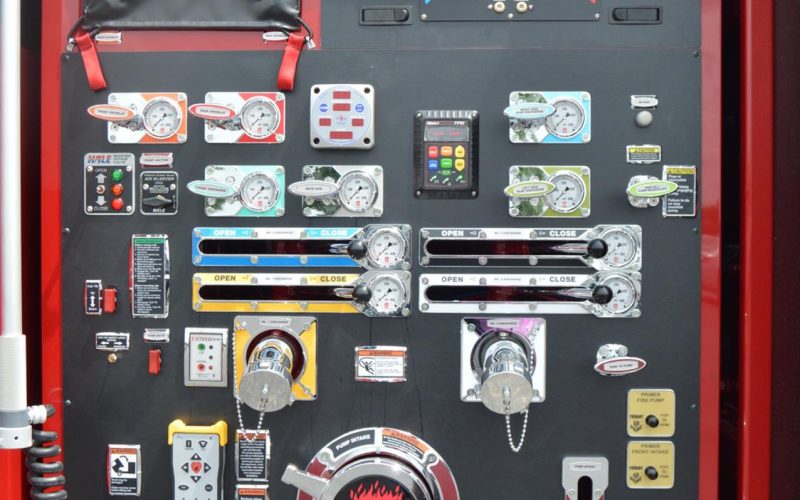

PUMP:                  Hale

  • QMAX-1500 6” Suction Single Stage
  • Discharge: (2) 2.5 Left, 3” Right, 2.5” Right, (2) 2.5” Valve 2.5” Pipe to Right Rear, 1.5” Front Bumper, 2” Plumbing, 3” Deck Gun
  • 2500 Gallon Water Tank

OPTIONAL EQUIPMENT:

  • Black Durabak Over Top Cab Steps that are Treadplate
  • Black Textured Powder Coat Over Grip Strut Cab Steps
  • Black Rubber Fenderette Attachment (2)
  • 24” Bumper formed Steel Channel, Black Durabak Paint
  • 3-Way Switch For Scene Light on Officer’s Side
  • 6’ x 6” Hard Suction Hose
  • Low Level Strainer Kochek LL60
  • Deck Gun Monitor, Elkhart Brass Cobra EXM, Electric
  • Smooth Aluminum Trough in Running Board on the Left and Right Side
  • Electronic Dump Valve Switch in Cab (3)
  • Black Wheel Well Trim Fenderette (2)
  • (3) Double Cylinder Compartments & Single Cylinder Compartments
  • Hard Suction Storage Compartment
  • Chevron Striping Miscellaneous Rear Compartment Doors, Reflexite
  • Pike Pole Storage
