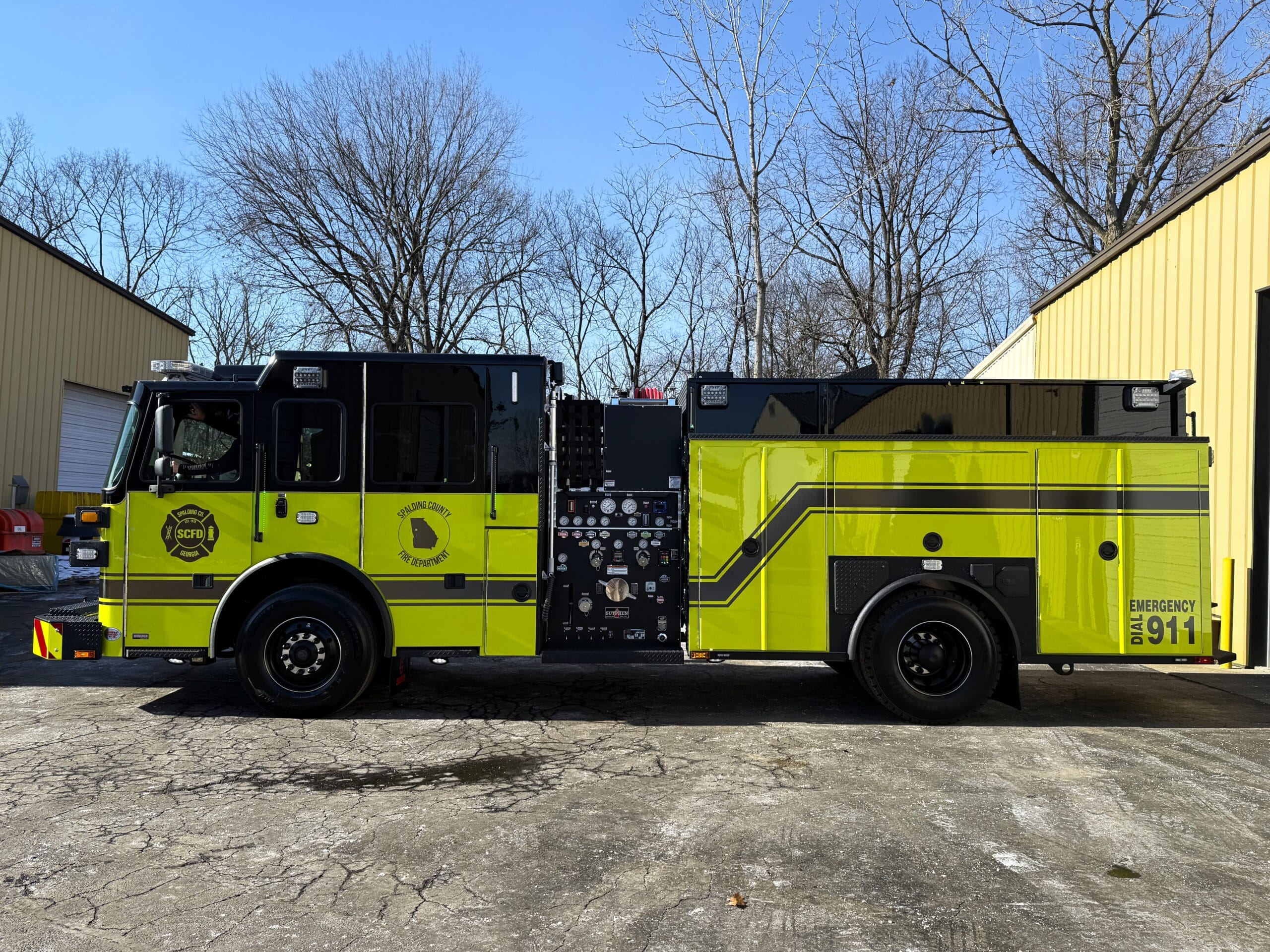

Custom Pumper – Spalding County Fire Department, GA

Specs

Cab
Four-Door, Four-Person
10" Double
Frame Rails (50K PSI)
Front Axle and Suspension
20,000 lbs w/ (4) 56" Leafs
Rear Axle and Suspension
27,000 lbs
Engine
Cummins L 9, 450 HP
Alternator
Leece Neville, 420 AMP
Transmission
Allison Gen 6, EVS3000
Pump
QMAX-1500 GPM, Single Stage Pump
Discharges
(2) 2 ½” Left, (1) 4” Right, (1) 2 ½” Right, (1) 2 ½” Front/ Left of Main Hosebed, (1) 2 ½” Front Bumper, 2 ½” Plumbing, (1) 3” Deck Gun
Crosslays
(2) 1 ½” & (1) 2 ½” w/ Swivels
Water Tank
750-Gallon
Foam Tank
30-Gallon
Foam System
FoamPro 2002, 5.0 GPM
Construction
3/16” Extruded Aluminum
Compartment Doors
Hinged Compartment Doors
Total Compartment Space
240 cu ft.
Alco-Lite Ladder Package
PEL-24 24’ 2-Section & PRL-14 14’ Roof & 10’ Folding
Body
G9 - Alum 40/51 Ladders Thru Tank
Bumper
18” Formed Steel Channel Painted
Federal Q2B
Grille Mount
Camera System
FRC, Inview Trueview, Two Cameras (Wired)
Brow Light
Hiviz 72"
Light Bar
Whelen Freedom LED
Beacon
Whelen L31 Red LED
