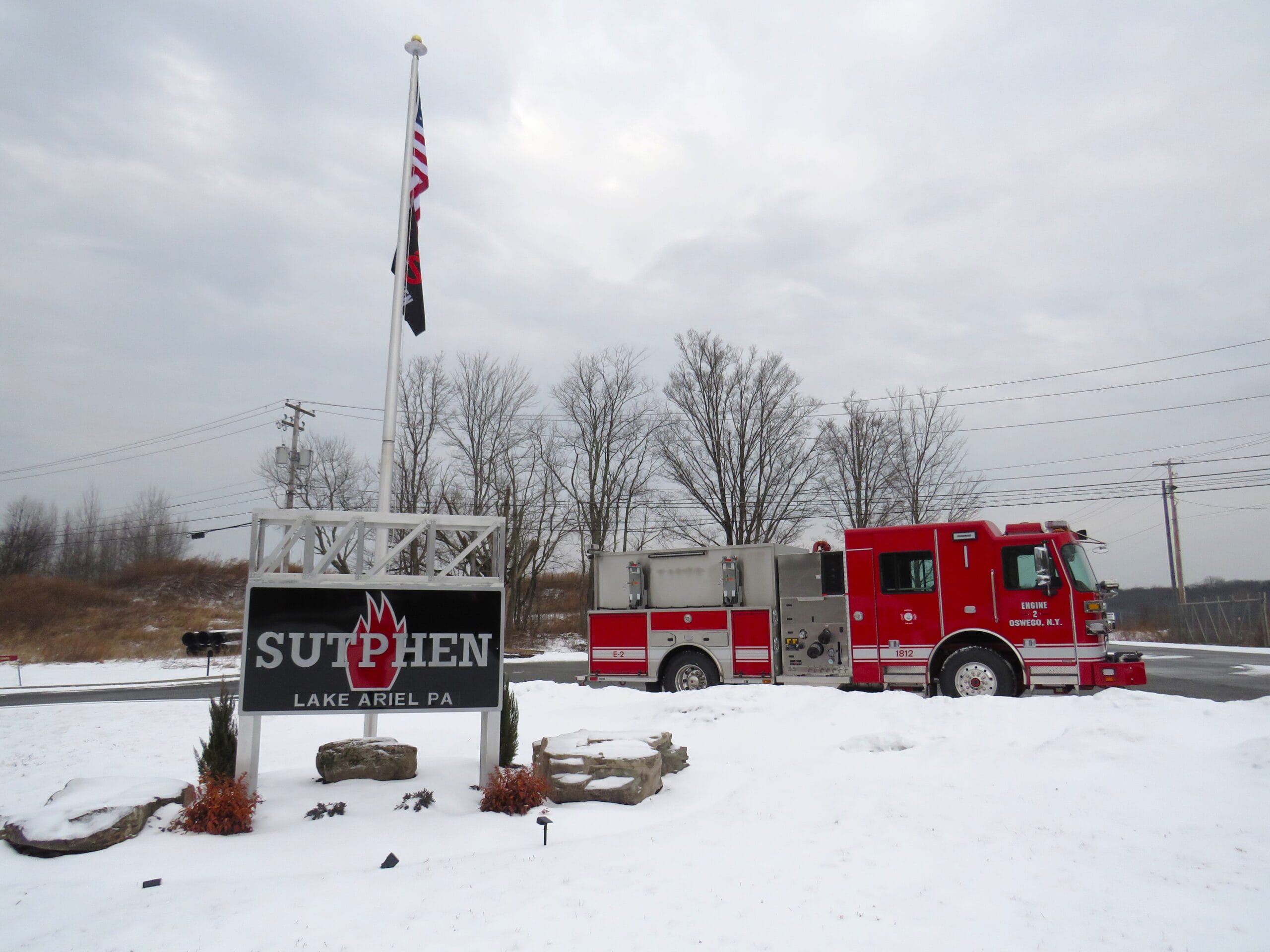

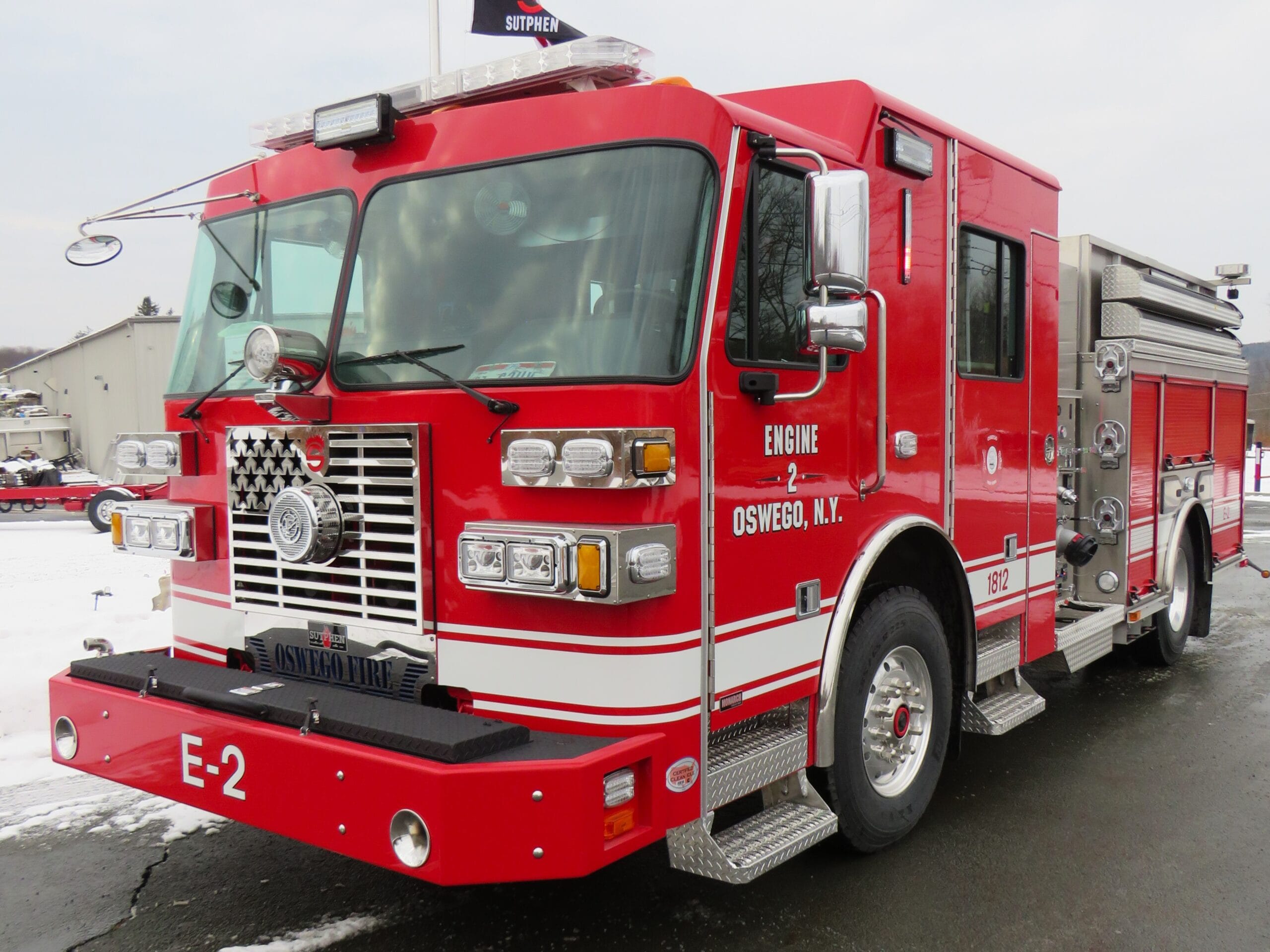

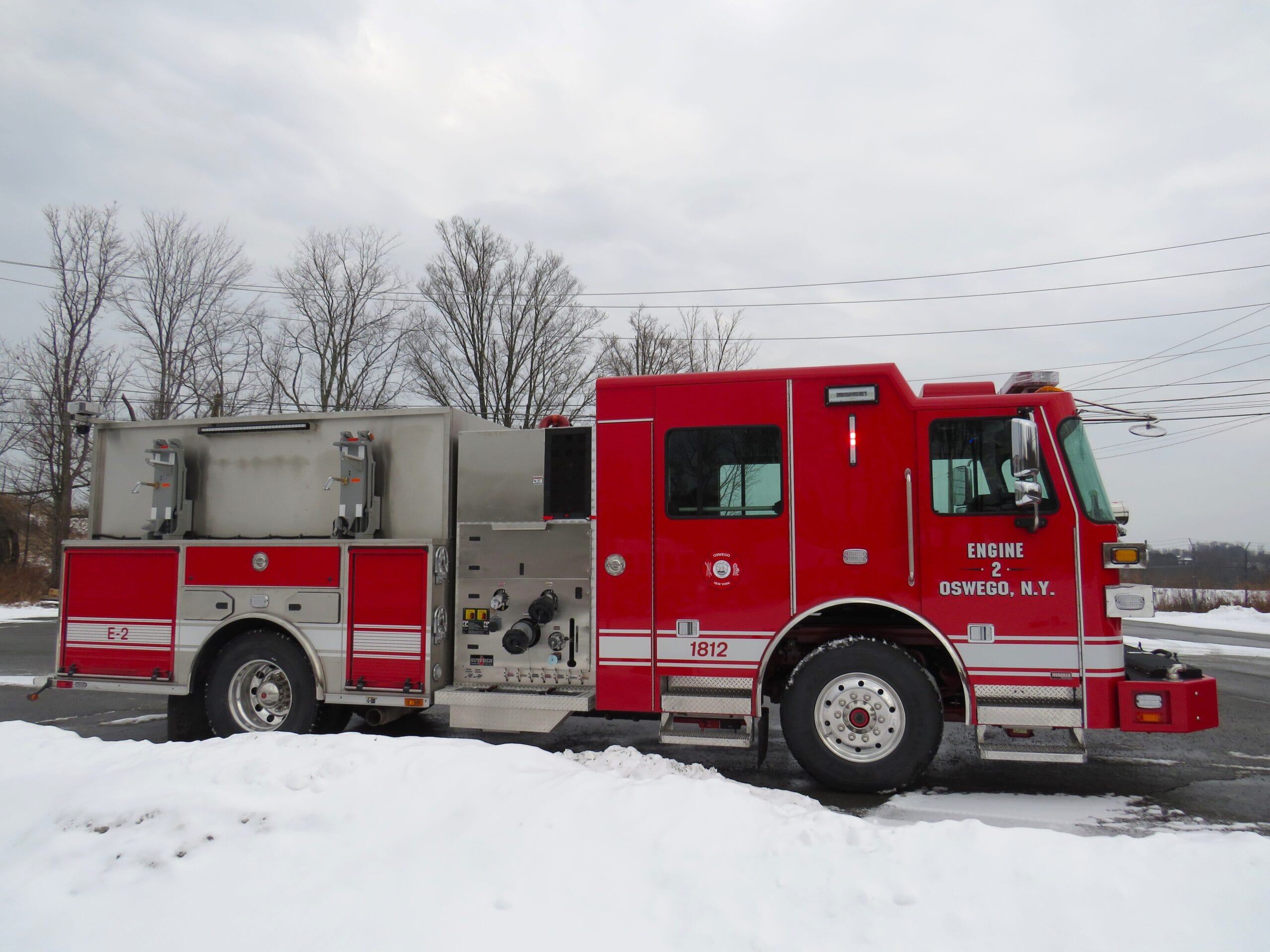

Custom Pumper – Oswego Fire Department, NY

Specs

Cab
Four-Door, Four-Person
Frame Rails
10” Double (50K PSI)
Front Axle and Suspension
20,000 lbs w/ (4) 56" Leafs
Rear Axle and Suspension
24,000 lbs
Engine
Cummins L 9, 450 HP
Alternator
Leece Neville, 320 AMP
Transmission
Allison Gen 5, EVS3000
Hale
QMAX-1500 GPM, Single Stage Pump
Discharges
(2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (1) 2 ½” Front/ Left of Main Hosebed, (1) 2 ½” Valve 2 ½” Pipe to Left Rear, (1) 1 ½” Front Bumper, 2” Plumbing, (1) 3” Deck Gun Discharge
Crosslay
(1) 2” w/ 1 ½” Swivel
Water Tank
750-Gallon
Construction
3/16" Extruded Aluminum
Doors
AMDOR Roll-Up Compartment Doors
Total Compartment Space
Over 170 cu ft.
Alco-Lite Ladder Package
900A 24’ 2-Sction & 775DR, 14’ Double Roof Hook & 10’ Folding
Body
S1 – STS 31/47 L60H / R45H (Brackets/ Elec Rack)
Bumper
18” Formed Steel Channel Painted
Federal Q2B
Grille Mount
Camera System
FRC, Inview Trueview, Single Camera (Wired)
Brow Light
FRC Spectra LED
Beacons
Whelen McFled
Light Bar
Whelen Freedom IV 72" LED
Tail Lights
Whelen M6
Monitor
Akron Apollo 3423 w/ Quad Stacked Tips & Stream Shaper
