Tiffin Fire Department, IA

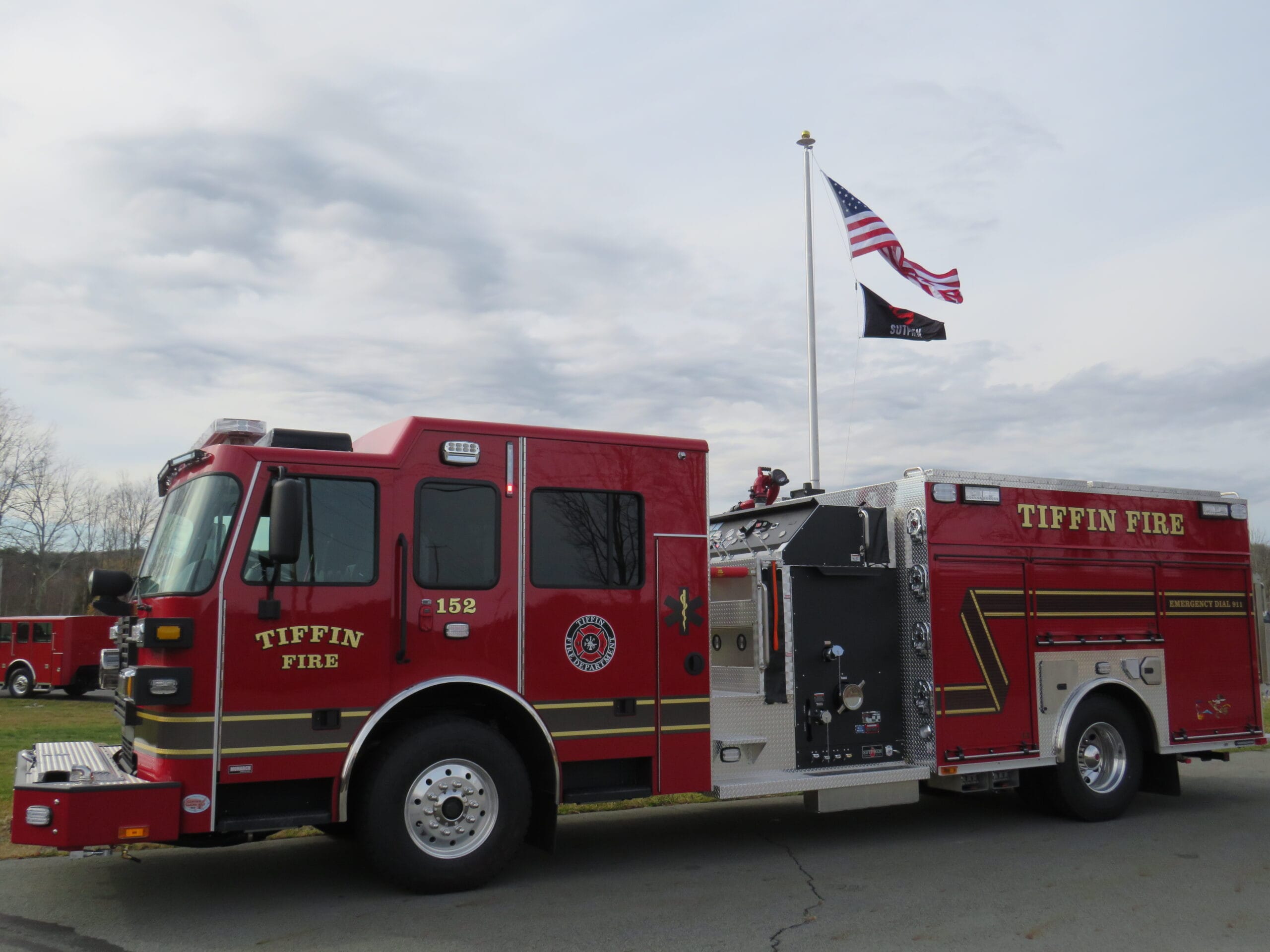

Custom Pumper – Tiffin Fire Department, IA

Specs

Cab
Four-Door, Six-Person
10" Double Domex
Frame Rails (50K PSI)
Front Axle and Suspension
20,000 lbs w/ (4) 56" Leafs
Rear Axle and Suspension
24,000 lbs
Engine
Cummins L 9, 450 HP
Alternator
Leece Neville, 420 AMP
Transmission
Allison Gen 5, EVS3000
Pump
CSU-1500 GPM, Single Stage Pump
Discharges
(1) 2 ½” Left, (1) 3” w/ 4” Outlet, (1) 2 ½” Right, (1) 2 ½” Right Rear, (1) 1 ½” Front Bumper, 2” Plumbing, (1) 3” Deck Gun
Crosslay
(1) 2 ½” w/ 2 ½” Swivel (Top Mount)
Speedlays
(2) 2” w/ Swivels & Poly Lift-Out Trays
Water Tank
750-Gallon
Foam Tank
20-Gallon
Construction
3/16” Extruded Aluminum
Compartment Doors
Amdor Roll-Up Compartment Doors
Total Compartment Space
Over 350 cu ft.
Duo-Safety Ladder Package
900A 24’ 2-Section & 775A 14’ Roof & 10’ Folding
Body
S9 – Alum 43/53 Ladders Thru Tank
Bumper
24" Formed Steel Channel Painted
Federal Q2B
Grille Mount
Camera System
Brigade, Backeye 360 Camera System (Wired)
Brow Light
FireTech 72" LED
Lightbar
Whelen Freedom IV WeCanX 72” LED
Warning Light
Mars 888
Scene Light
Whelen PCPSM2
