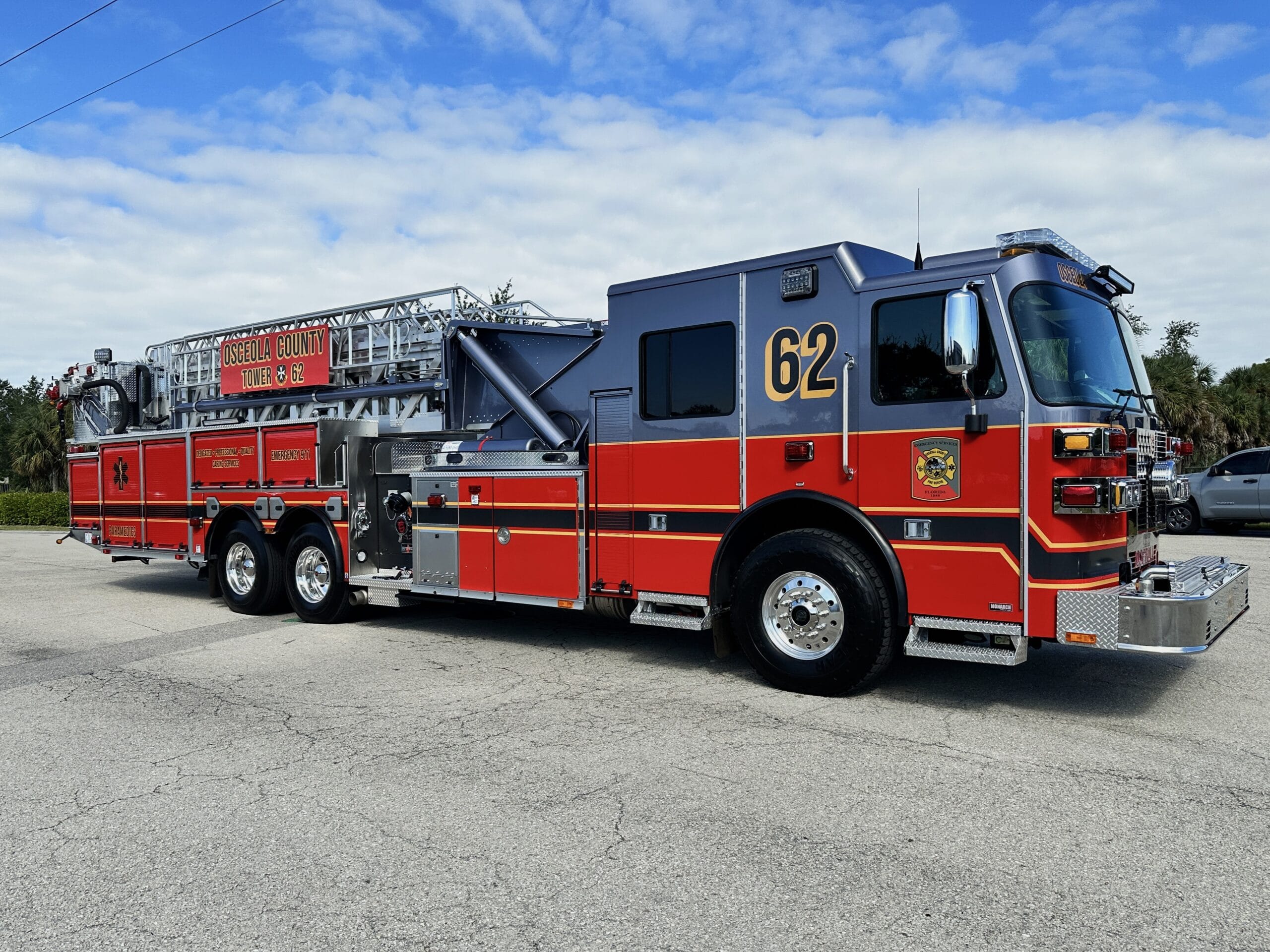

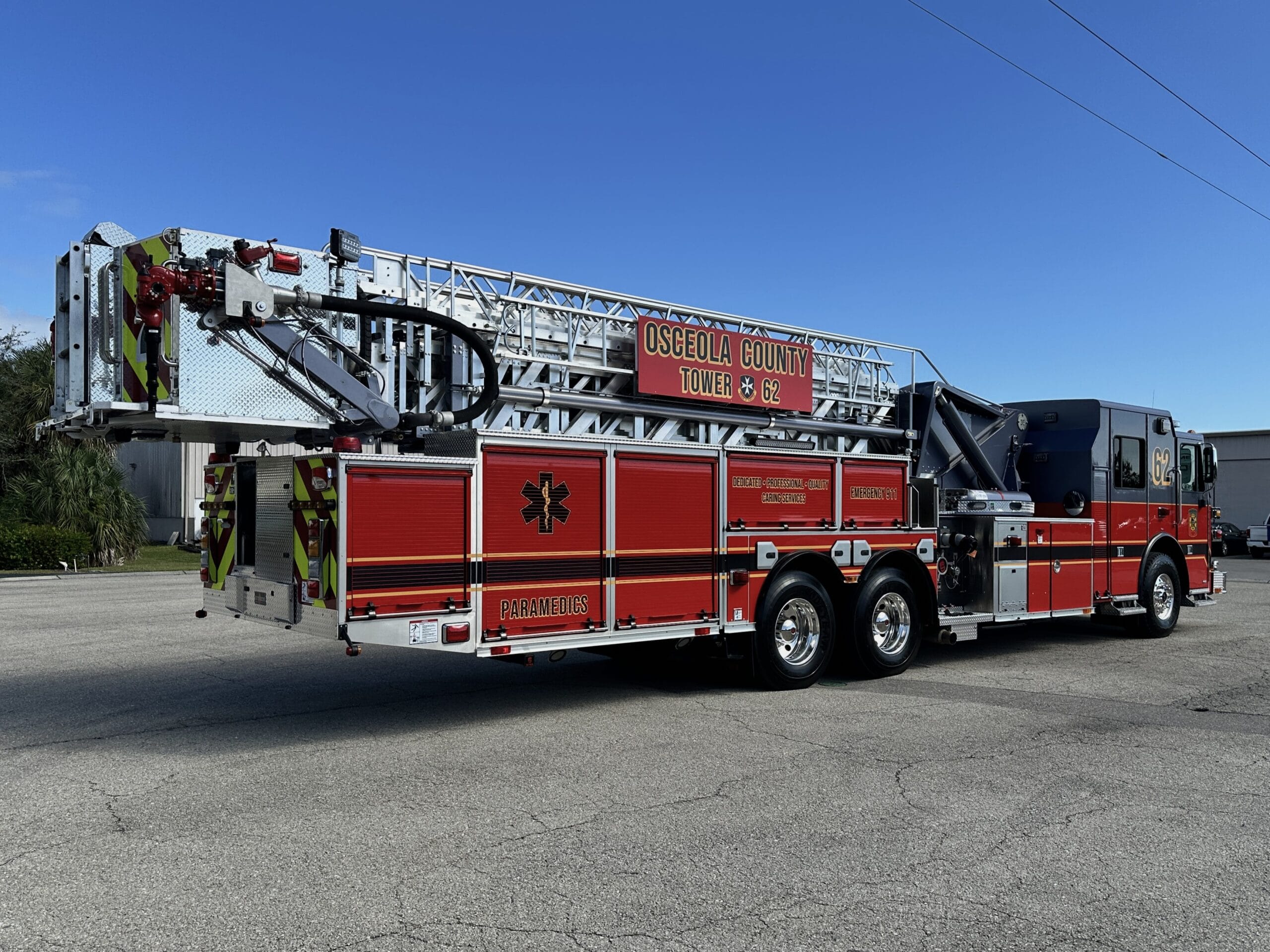

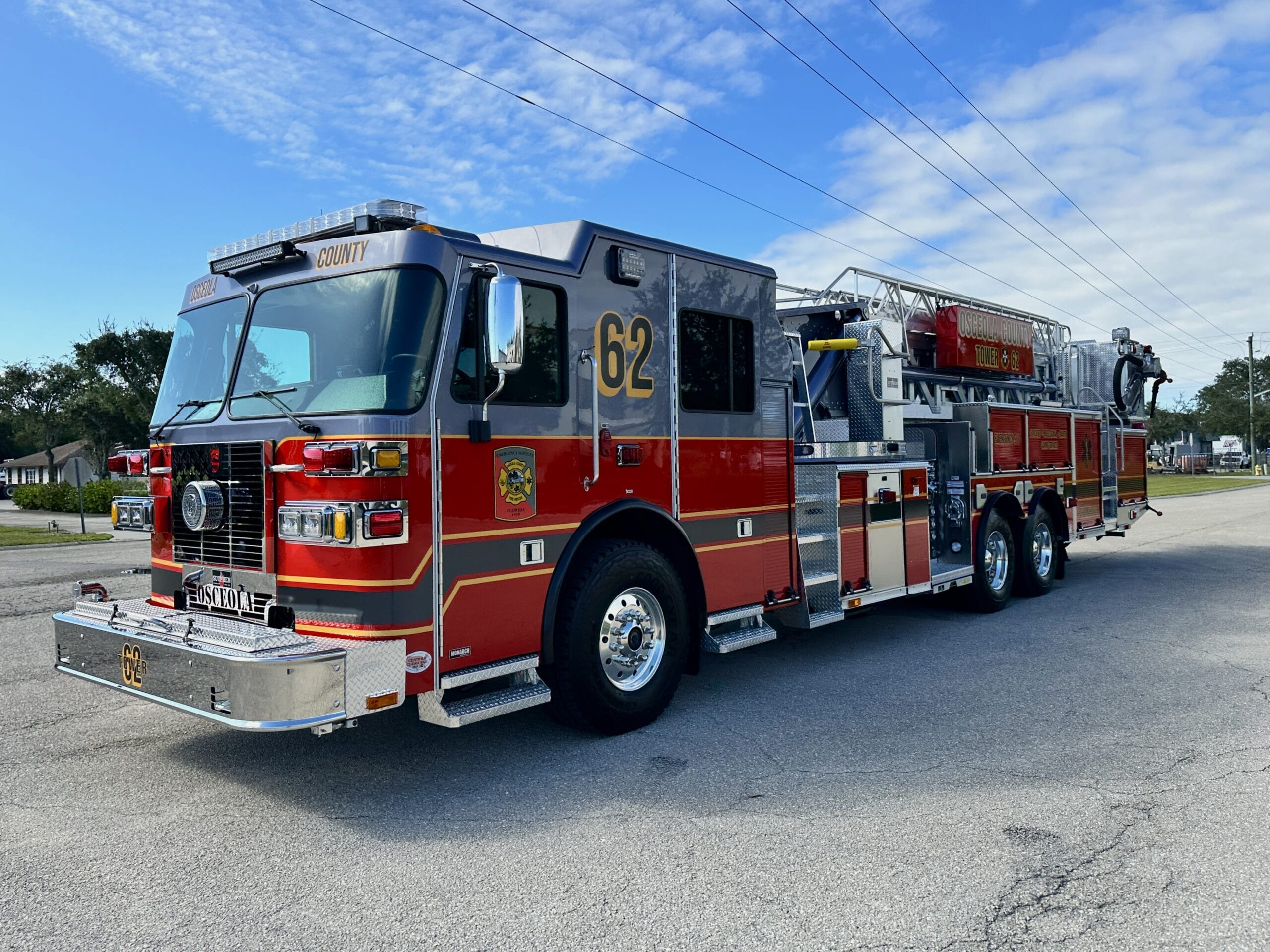

SPH 100 – Osceola County Fire Rescue and EMS, FL

Specs

Cab
Four-Door, Four-Person
10" Double Domex
Frame Rails (110K PSI)
Front Axle and Suspension
24,000 lbs w/ (4) 56" Leafs
Rear Axle and Suspension
52,000 lbs
Engine
Cummins X 12, 500 HP
Alternator
Leece Neville, 420 AMP
Transmission
Allison Gen 6, EVS4000

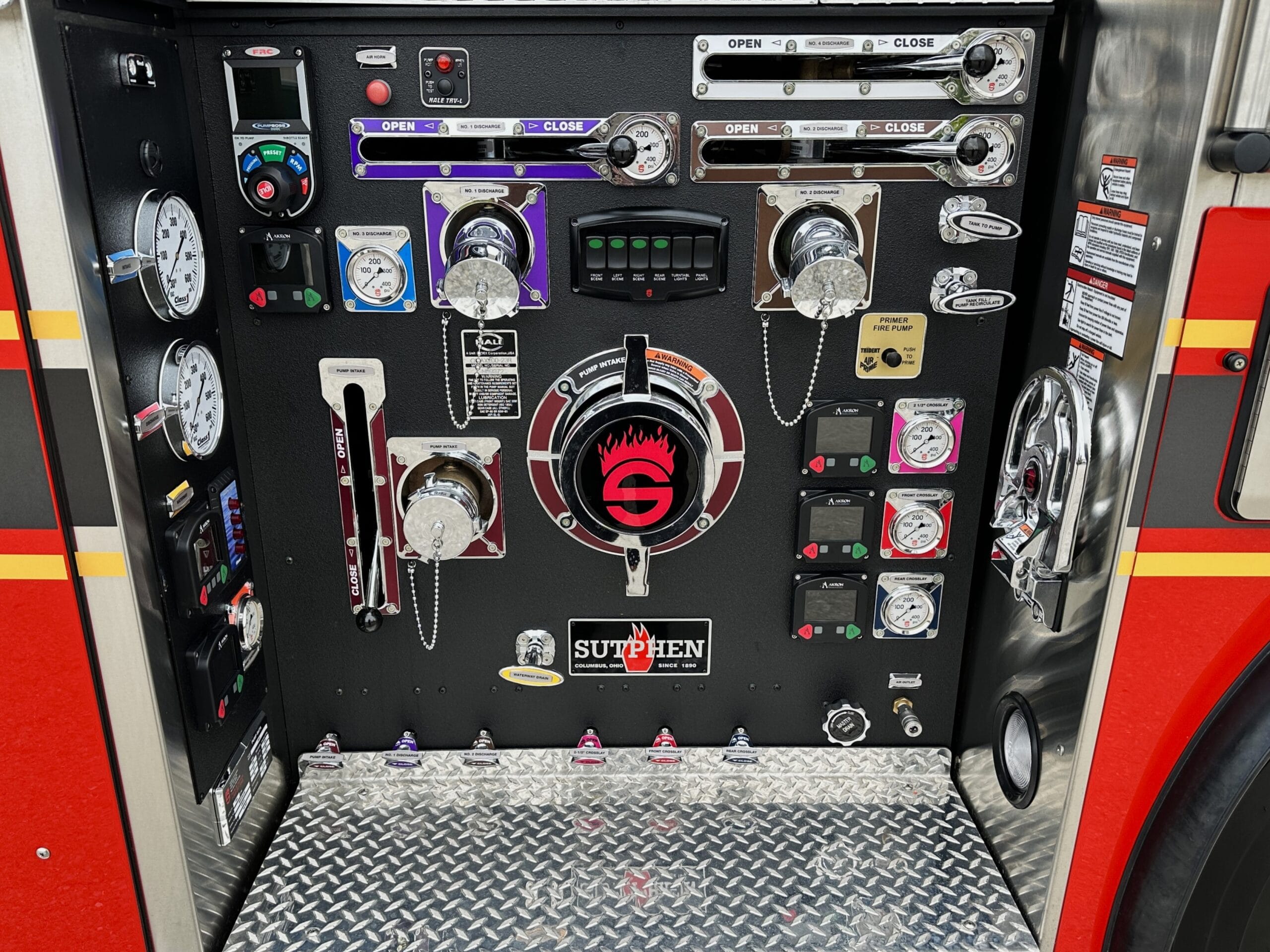

Pump
QMAX-2000 GPM, Single Stage Pump
Discharges
(2) 2 ½” Left, (1) 4” Right, (1) 2 ½” Right, (1) 2 ½” to Front Bumper
Crosslays
(1) 2 ½”, 2 ½” Swivel & (2) 2” w/ 1 ½” Swivel
Water Tank
300-Gallon
Construction
Huckbolt #304 Stainless Steel
Compartment Doors
AMDOR Roll-Up Compartment Doors
Total Compartment Space
Over 280 cu ft.
Alco-Lite Ladder Package 121'
14’, 16’, 18’, 28’ 2-Section, 35’ 2-Section & 10’ Folding
Body
SPH-3, Left 56” H / Right 56” H

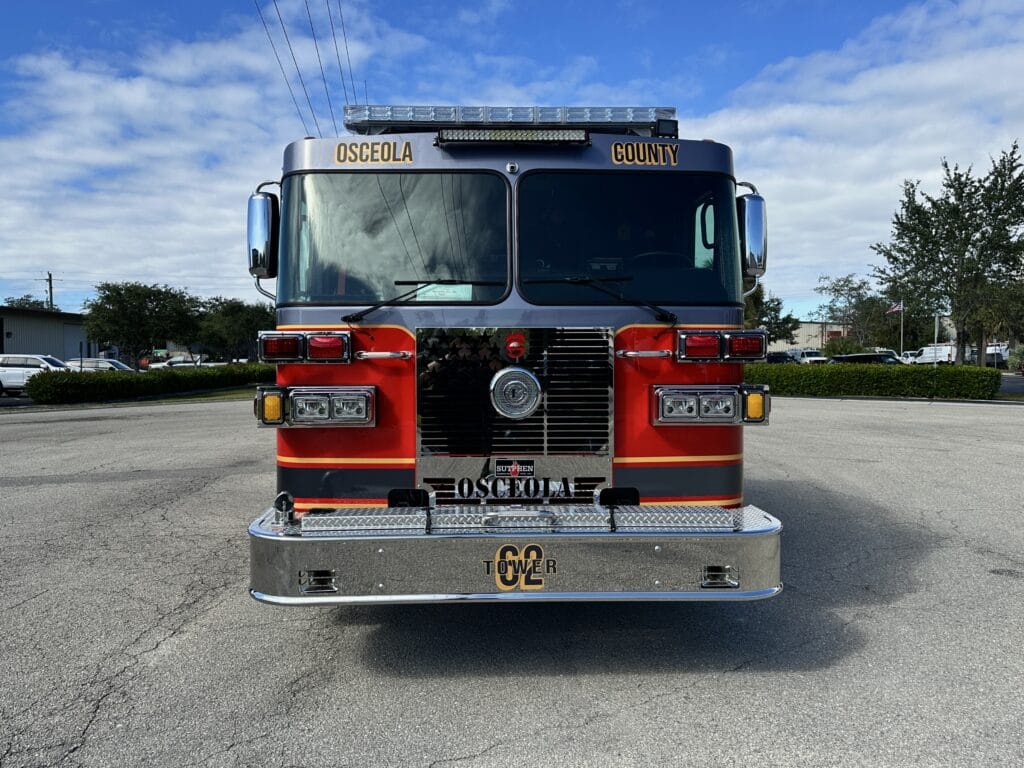

Bumper
18" Polished Stainless Steel Bumper
Federal Q2B
Grille Mount
Intercom System
FRC ACT 2-Station
Generator
Honda, 3000-Watt Portable
Lightbar
Whelen Freedom IV 72"
Brow Light
FireTech 12V
Scene Light
FireTech GESM 12V
Tele Lights
120V FireTech Guardian Elite
Driver Side Monitor
Akron 3483 Stream Master2, Manual 1250 GPM
Driver Side Nozzle
Akron 5160 Auto
Officer Side Monitor
Akron 3483 Stream Master2, Manual 1250 GPM
Officer Side Nozzle
Akron 2499 & 3488 Pipe
