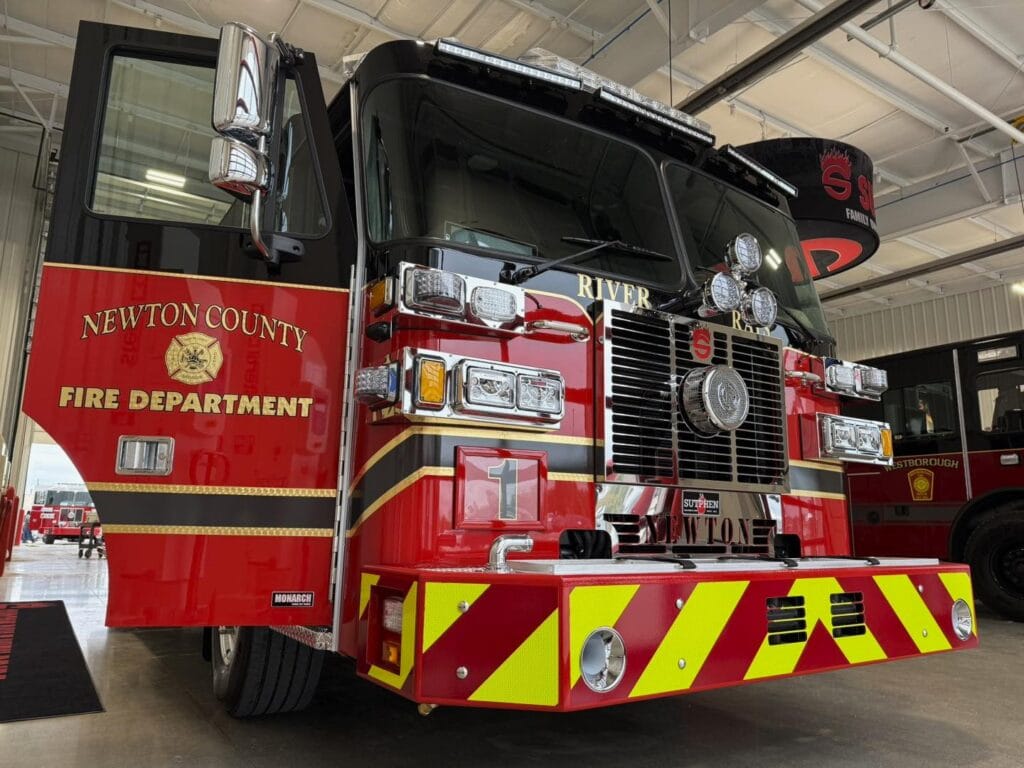

Custom Pumper – Newton County Fire Department, GA

Specs

Cab
Four-Door, Six-Person
10" Double
Frame Rails (50K PSI)
Front Axle and Suspension
20,000 lbs w/ (4) 56" Leafs
Rear Axle and Suspension
27,000 lbs
Engine
Cummins X 12, 500 HP
Alternator
Leece Neville, 320 AMP
Transmission
Allison Gen 5, EVS4500
Pump
Hale QMAX XS 1500 GPM, Single Stage Pump
Discharges
(2) 2 ½” Left, (1) 4” Right, (1) 2 ½” Right, (1) 2 ½” Left Rear, (1) 1 ½” Front Bumper, 2” Plumbing, (1) 3” Deck Gun
Crosslay
(1) 2 ½”
Speedlays
(2) 1 ½” w/ Liftout Poly Trays
Water Tank
750-Gallon
Construction
3/16" Extruded Aluminum
Compartment Doors
AMDOR Roll-Up Compartment Doors
Total Compartment Space
Over 210 cu ft.
Alco-Lite Ladder Package
PEL-24 24’ 2-Section & PRL-14 14’ Roof & 10’ Folding
Body
PA-12 Res 43/53, Lad Chute
Bumper
18" Formed Steel Channel Painted

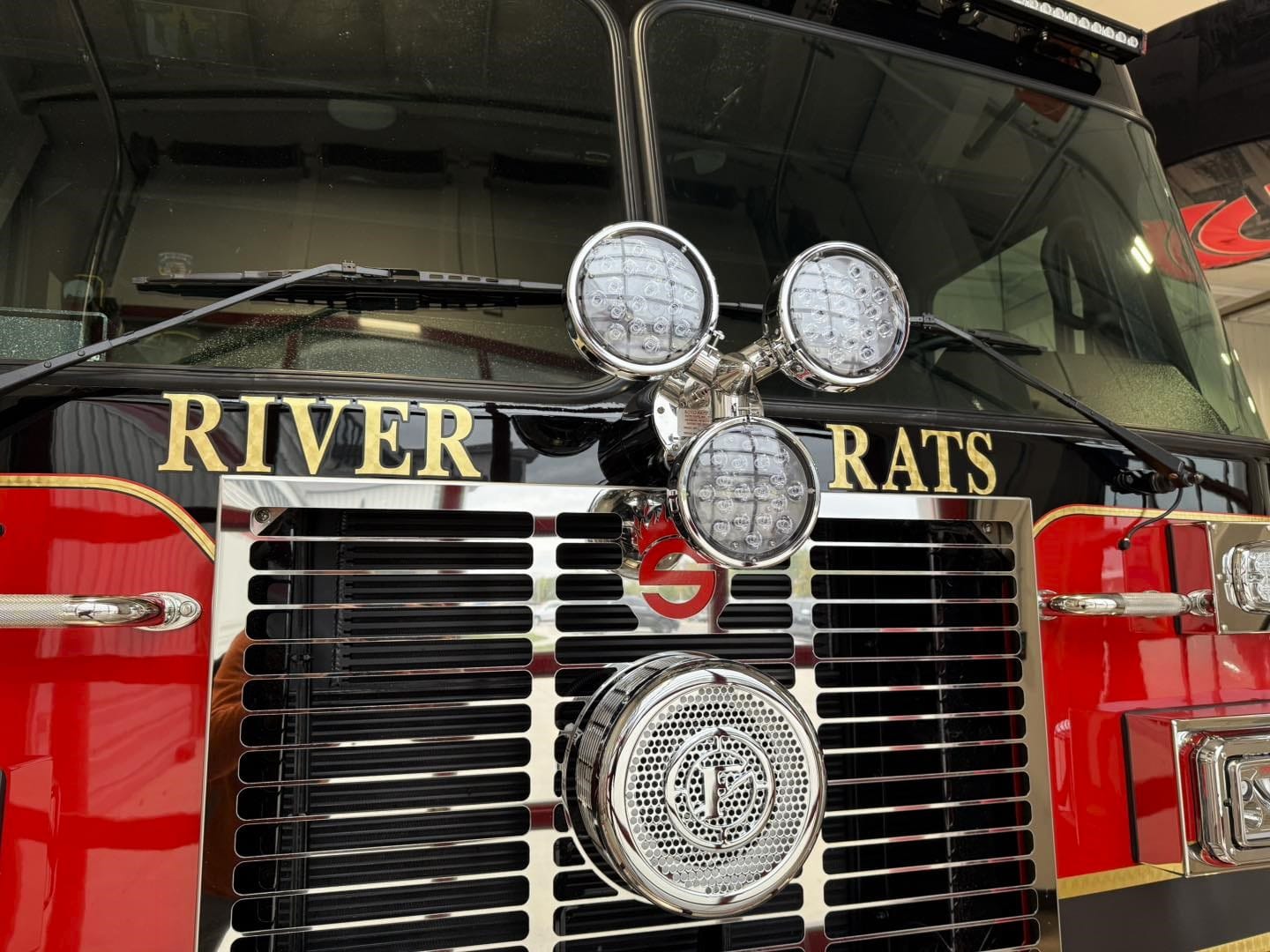

Federal Q2B
Grille Mount
Camera System
FRC, Inview Trueview, Two Cameras (Wired)
Roto-Ray
Warning Light, LED
Brow Light
FireTech 3-Piece 12V
Lightbar
Whelen Freedom IV 12 Module 44.5" LED
Tele Light
FireTech Guardian Elite 12V
LED Light
Whelen M6 Red
