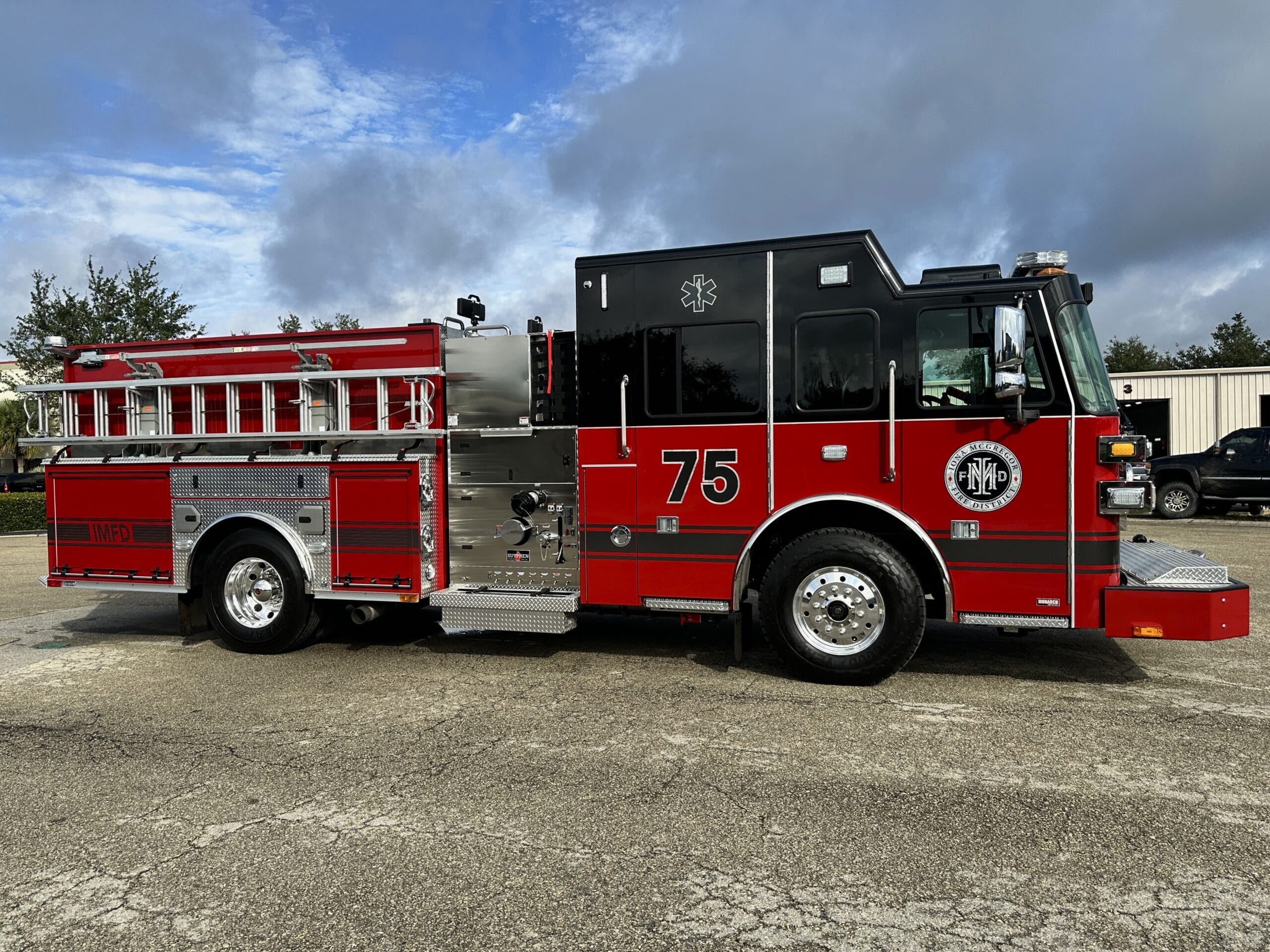

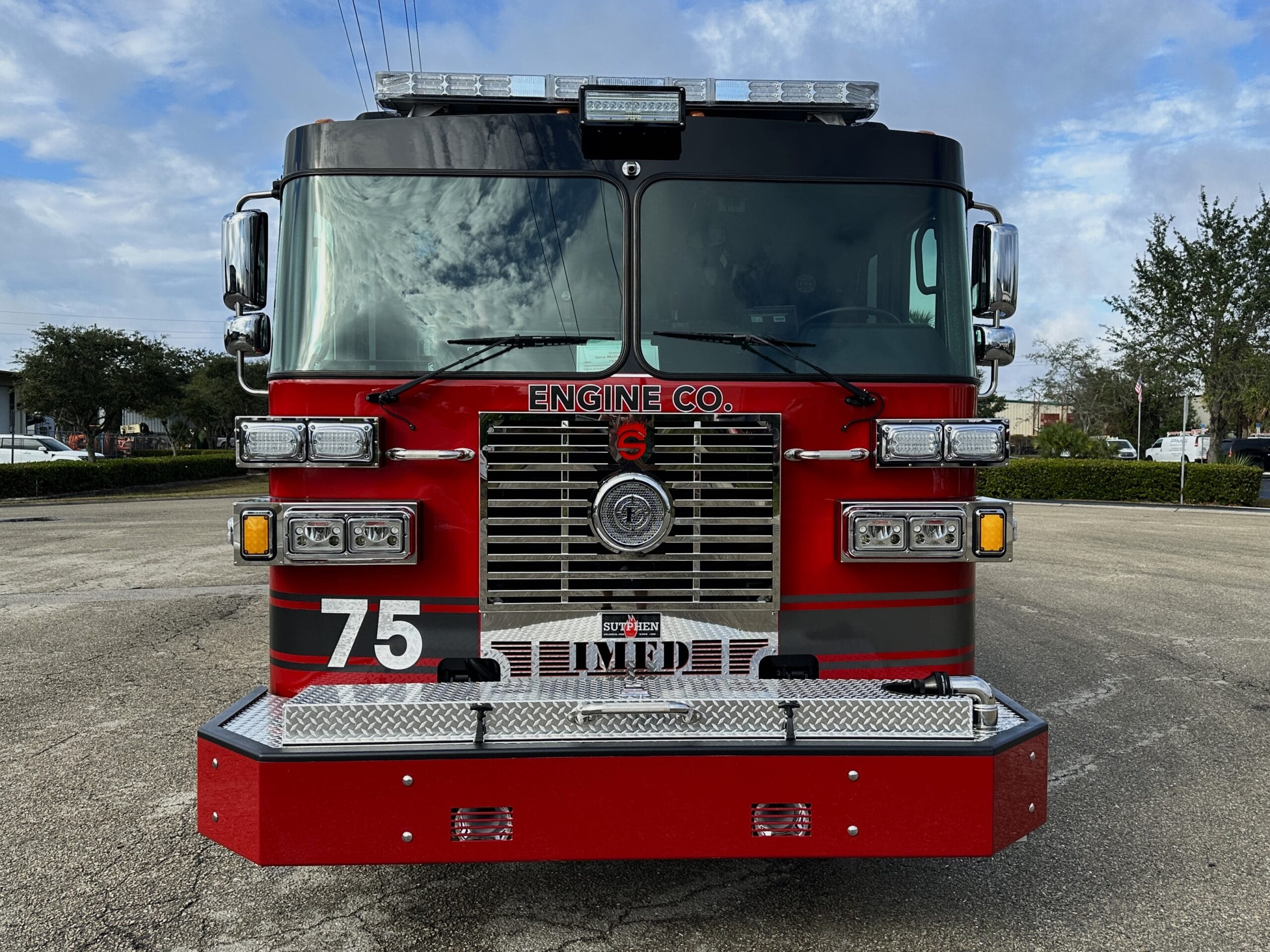

Custom Pumper – Iona McGregor Fire District, FL

Specs

Cab
Four-Door, Five-Person
10” Double
Frame Rails (50K PSI)
Front Axle and Suspension
19,000 lbs w/ (3) 56" LEafs
Rear Axle and Suspension
24,000 lbs
Engine
Cummins L 9, 450 HP
Alternator
Leece Neville, 320 AMP
Transmission
Allison Gen 5, EVS3000
Water Pump
QMAX-1500 GPM, Single Stage Pump
Discharges
(2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (1) 2 ½” Right Rear, (2) Front/ Left of Main Hosebed, (1) 2 ½” Front Bumper, 2 ½” Plumbing, (1) 3” Deck Gun
Crosslays
(2) 2” w/ 1 ½” Swivel
Water Tank
750-Gallon
Foam Tank
30-Gallon
Foam System
Hale SmartFoam 5.0 (PRG)
Construction
3/16” Extruded Aluminum
Doors
AMDOR Compartment Doors
Total Compartment Space
Over 240 cu ft.
Duo-Safety Ladder Package
900A 24’ 2-Section & 775A 14’ Roof & 10’ Folding
Body
Alum 31/53 Right Low (Brackets/ Elec Rack)
Bumper
24" Formed Steel Painted
Federal Q2B
Grille Mount
Brow Light
FRC Spectra 12V
Lightbar
Whelen 72" LED
Scene Light
FRC 900 12V LED
Tele-Lights
FRC Spectra 12V LED
Beacons
Whelen L31 Red LED
